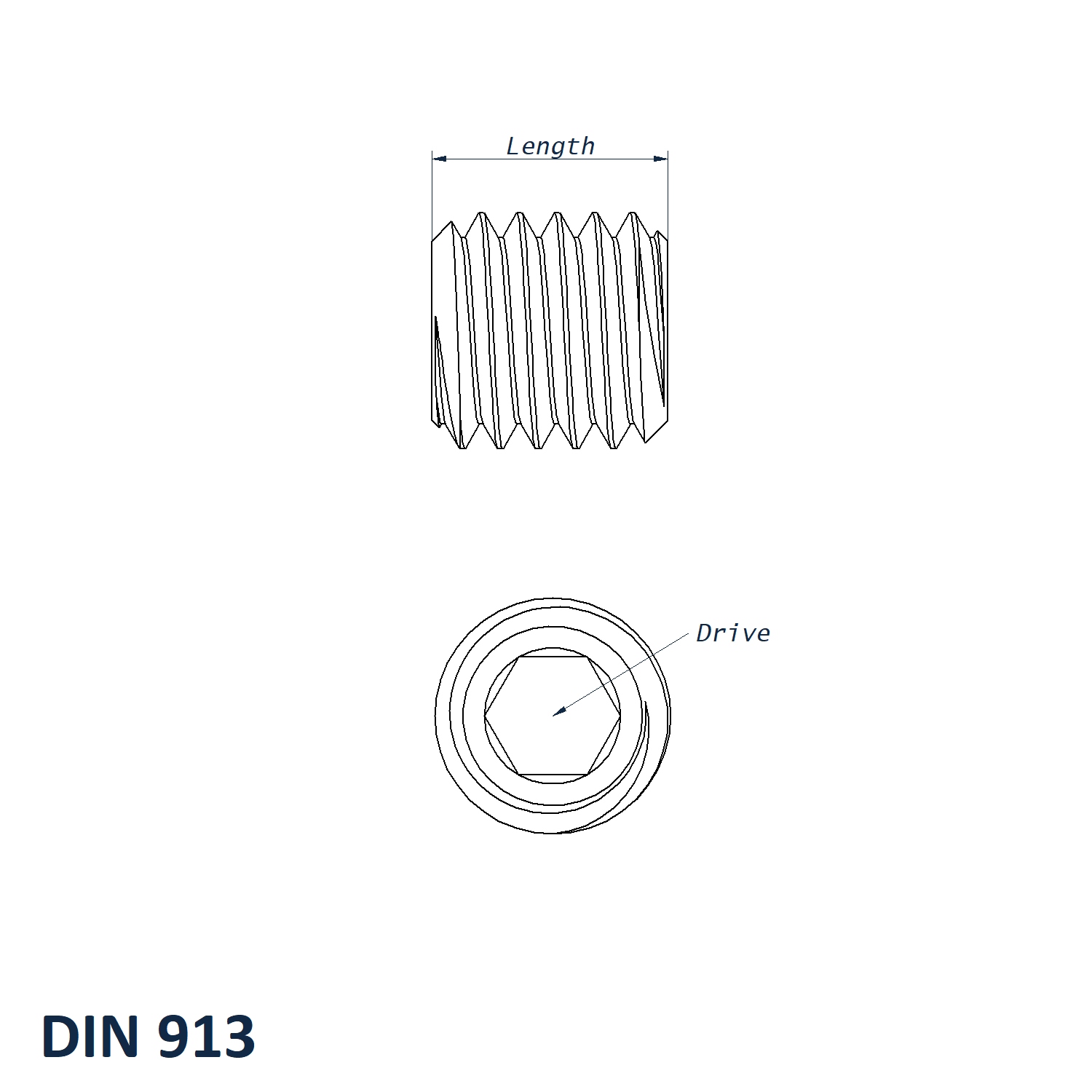

Socket Grub Screw Flat DIN 913

Our Hex Socket Set Screws Flat, or Allen Key Grub Screws as they are also known, are manufactured to DIN 913 / ISO 4026 from high performance stainless steel, which provides an excellent level of resistance and strength across medium to heavy loads. These set screws are headless, allowing them to be fully inserted into a threaded hole. These Flat End or Flat Point grub screws are intended for use where a large surface area is required to prevent damage or indentation to the object being held in place by the grub screw. These screws have a socket drive for use with Allen Keys or Hex Keys.

We also offer Slotted Grub Screws and Cone Point Hex Socket Set Screws.

Our Socket Set Screws are available in A2 (Equivalent to 304) or A4 (Equivalent to 316 Marine Grade) Stainless Steel in metric sizes from M1.6 x 2 to M20 x 100. For our full selection of sizes and materials see the product table displayed below, or get in touch with a member of our staff.

Key Product Features:

• Manufactured from a high strength Stainless Steel
• Recommended for use with threaded components
• Flush installation
• Easy to install and use

Commonly Used For:

• To install on internally threaded components
• To secure or locking items without the use of nuts

Also Refered to As:

• Hexagon Socket Set Screw with Flat Point
• Socket Set Screw
• Flat Grub Screw
• Hexagon Socket Grub Screw

Equivalent Standards:

• DIN EN 4026 (Germany, Deutsches Institut für Normung)
• DIN 913 (Germany, Deutsches Institut für Normung)
• ISO 4026 (International Standards ISO)
• UNI 5923 (Italy, Ente Italiano di Normazione)
• CSN 021187 (Czech technical standard)
• EU 24026 (European Union)
