Straight Clamping Handles

Our Straight Clamping Handles provide a compact and reliable solution for tightening, securing and adjusting components across industrial machinery, manufacturing equipment and mechanical assemblies. These adjustable clamping handles feature a straight lever design, making them ideal for applications requiring regular adjustments in confined spaces.

Manufactured from robust Nylon PA6, our straight handle clamping levers feature a black body with a red ratchet button and a choice of brass or zinc-plated steel threaded inserts. Available in male and female threaded configurations, these indexed clamping handles are designed for convenient manual tightening and repositioning.

The ratchet mechanism allows the straight clamping handle to be repositioned without loosening the threaded connection. Nylon PA6 provides good abrasion resistance, strength and durability for general engineering and industrial applications.

Key Features & Benefits of Straight Clamping Handles

  • Indexed ratchet mechanism for easy handle repositioning
  • Straight lever design for compact, space-saving installation
  • Durable Nylon PA6 body with abrasion resistance
  • Brass or zinc-plated steel threaded inserts
  • Male and female thread options for different assemblies
  • Black handle with distinctive red ratchet button
  • Tool-free tightening and adjustable clamping tension

Common Applications for Straight Clamping Handles

Straight clamping handles are widely used in engineering and manufacturing applications where secure fastening and frequent manual adjustments are required.

  • Industrial machinery and adjustable equipment
  • Manufacturing jigs, fixtures and workholding systems
  • Mechanical engineering and threaded assemblies
  • Packaging machinery and positioning mechanisms
  • Workshop equipment and adjustable brackets
  • Inspection and testing equipment

How Do Straight Clamping Handles Work?

Indexed straight clamping handles use a spring-loaded ratchet mechanism. By pressing the red button, the handle can be repositioned without loosening the threaded fixing, allowing convenient operation where space is limited.

Male vs Female Straight Clamping Handles

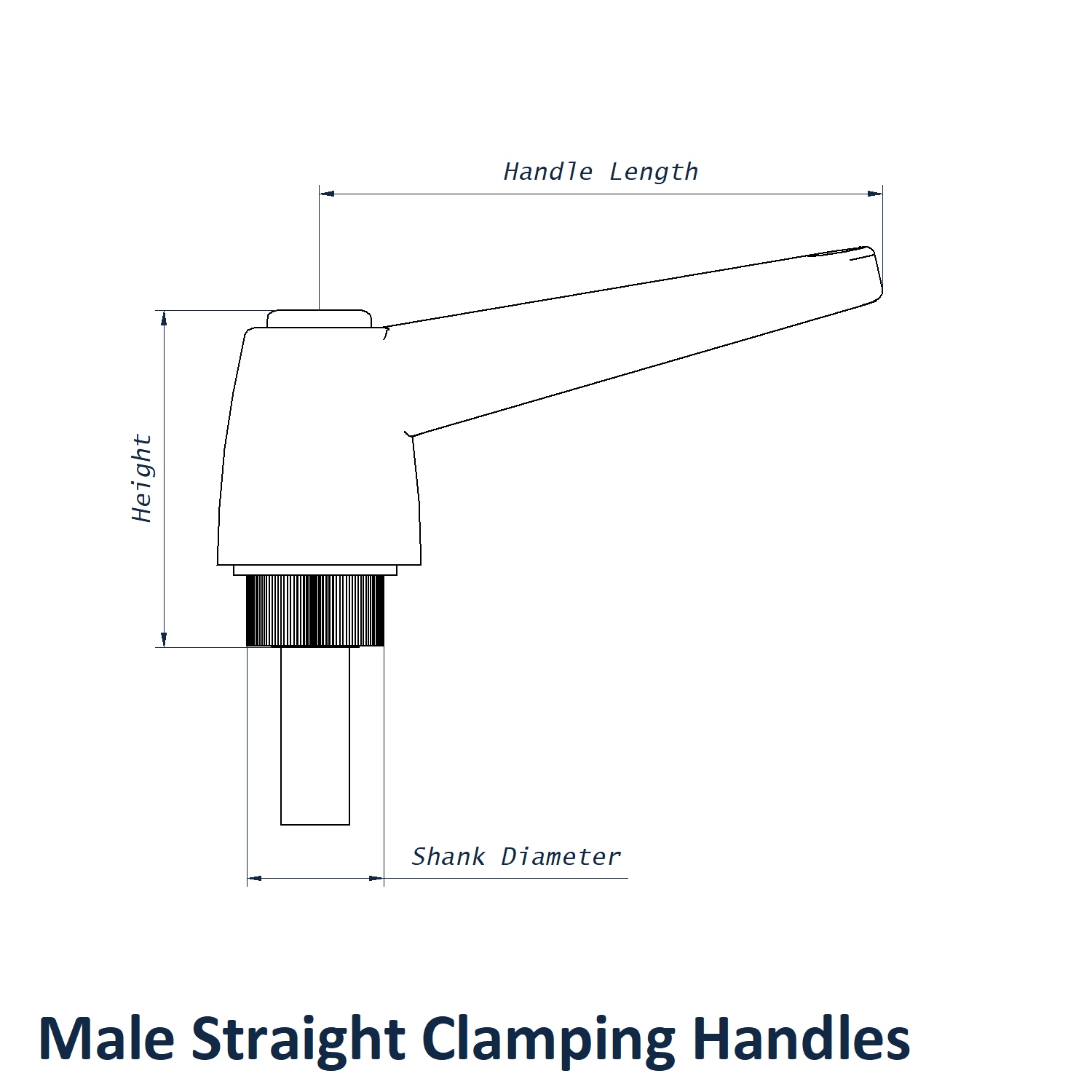

Male Straight Clamping Handles feature an externally threaded stud for fitting into compatible threaded holes. Female Straight Clamping Handles have an internally threaded insert designed for fitting onto existing bolts or threaded studs.

How to Choose the Correct Straight Clamping Handle

Consider the thread size, male or female configuration, handle dimensions and required tightening force. Selecting the correct straight handle ensures compatibility with your machinery, fixtures or adjustable equipment.

Need Help Choosing the Right Straight Clamping Handles?

Whether you need adjustable clamping handles for industrial machinery, indexed straight levers for restricted spaces or male and female threaded handles for manufacturing equipment, our team can help with product selection and specialist requirements.

Call 01233 713 581 for technical advice, product samples or bulk quotations. Trade customers can also apply for a Vital Parts Business Account to enquire about trade pricing, credit account options and dedicated support.

read more...
FILTER PRODUCTS
    AVAILABLE PRODUCTS
    Express
    Stock

    Frequently Asked Questions

    Straight Clamping Handles are used to tighten, secure and adjust components on industrial machinery, manufacturing equipment and mechanical assemblies. They are ideal for applications requiring frequent manual adjustments.

    Straight Clamping Handles feature an indexed ratchet mechanism that allows the lever to be repositioned without loosening the threaded connection. This provides convenient adjustment in restricted spaces.

    Male Straight Clamping Handles feature an externally threaded stud that fits into a compatible threaded hole. Female Straight Clamping Handles have an internally threaded insert designed to fit onto an existing bolt or stud.

    Yes. Their compact straight lever design and indexed ratchet mechanism make them suitable for applications where limited space prevents a full handle rotation.
