Pan Head Self Drilling Screws
Our Pan Head Self Drilling Screws are designed to drill, tap and fasten into compatible metal materials in a single installation process. Featuring a rounded pan head, self-tapping thread and hardened drill-shaped point, these screws provide a neat and reliable fastening solution for sheet metal, brackets, panels, enclosures and fabricated components.
Often referred to as Pan Head Tek Screws, these self drilling fasteners can remove the need for a separate pilot hole in many suitable applications. The flat underside of the head provides a secure bearing surface against the material, while the rounded upper profile creates a clean, low-profile finish once installed.
Our range includes Pan Head Self Drilling Screws manufactured to DIN 7504MZ, DIN 7504MH and DIN 7504MT, providing a choice of Pozidriv, Phillips and Torx drive styles for different installation requirements.
What Are Pan Head Self Drilling Screws?
Pan Head Self Drilling Screws are metal fasteners with an integrated drill point that cuts through compatible sheet metal before the threaded section forms a mating thread. This allows drilling and fastening to be completed using a single screw, reducing the number of separate operations required during assembly.
The pan head has a slightly domed upper surface and a flat underside that sits firmly against the installed component. Its wider bearing area helps distribute pressure around the fixing point, making this screw style suitable for securing panels, brackets and thinner materials where a countersunk fixing is not required.
Pan Head Self Drilling Screw Standards

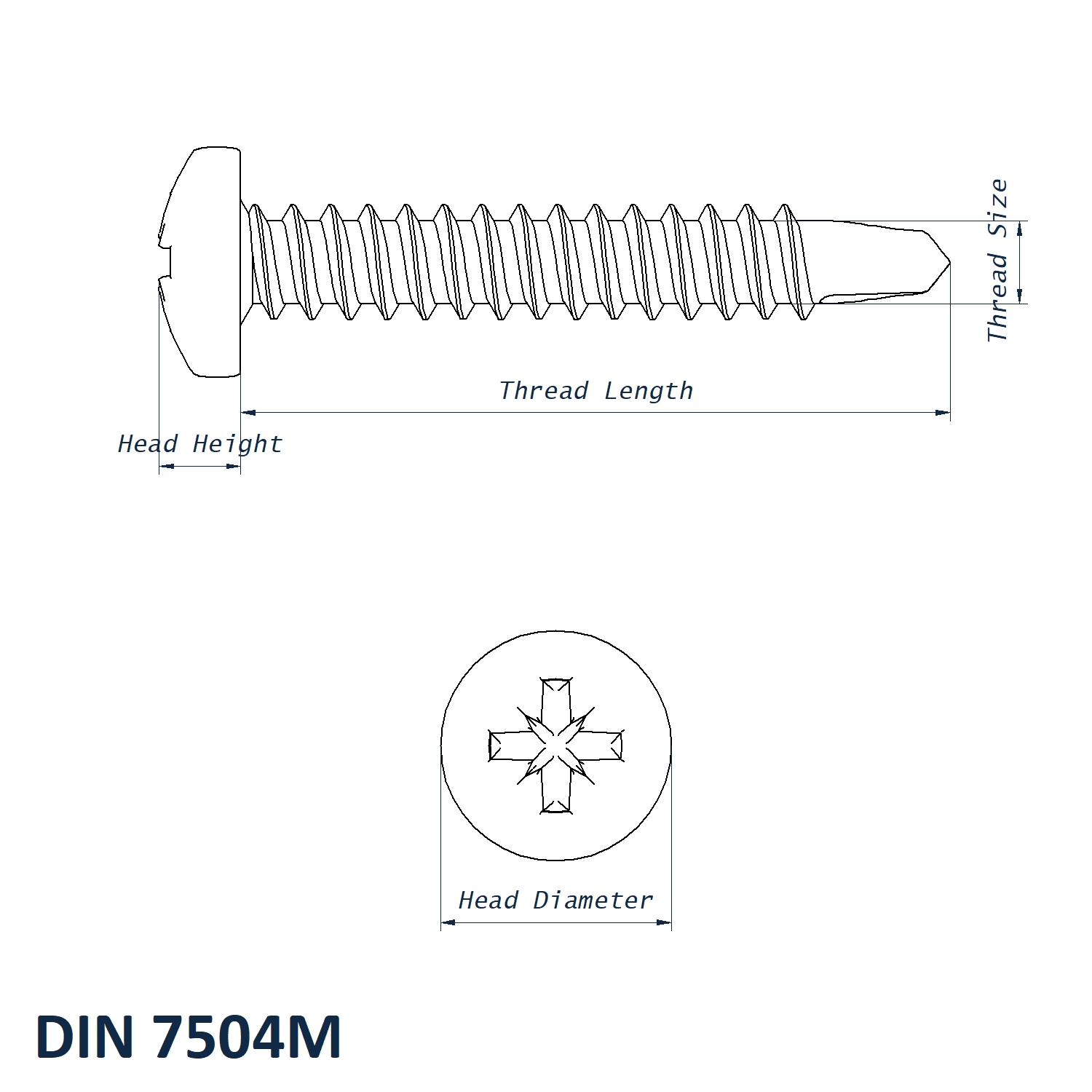

- DIN 7504MZ: Pan head self drilling screws with a Pozidriv cross recess. This drive provides additional engagement points to support controlled installation and reduce driver slippage when the correct Pozidriv bit is used.
- DIN 7504MH: Pan head self drilling screws with a Phillips cross recess. This widely used drive style is suitable for general fastening and installation with compatible manual or powered tools.
- DIN 7504MT: Pan head self drilling screws with a Torx or hexalobular recess. The six-lobed drive provides positive tool engagement, efficient torque transfer and improved control during repetitive installation.
Benefits of Pan Head Self Drilling Screws
- Drill, tap and fasten into compatible metal in one operation
- Reduce the requirement for separate pilot drilling and tapping
- Rounded pan head provides a neat and compact installed finish
- Flat bearing surface supports secure clamping against the material
- Available with Pozidriv, Phillips and Torx drive options
- Suitable for installation using compatible manual or powered drivers
- Available in different diameters and lengths for a range of material thicknesses
Common Applications
- Sheet Metal Fabrication: Suitable for joining overlapping sheets, lightweight sections, covers and fabricated metal components.
- Electrical Enclosures: Used to secure panels, access covers, mounting plates and internal equipment brackets.
- HVAC and Ventilation: Ideal for assembling ducting, air-handling components, vents and associated support fittings.
- Machinery and Equipment: Commonly used for guards, casings, control panels and non-critical equipment assemblies.
- Automotive and Transport: Suitable for compatible trim panels, brackets, housings and lightweight fabricated components.
- General Construction: Used for metal framing accessories, brackets, fixtures and interior sheet metal installations.
Choosing the Correct Pan Head Self Drilling Screw
When selecting a Pan Head Self Drilling Screw, consider the combined thickness and type of the materials being joined. The drill-point capacity must be suitable for the receiving material, while the screw length should provide sufficient thread engagement after passing through the components.
The screw material and finish should match the operating environment. Coated steel fasteners are commonly selected for indoor and protected conditions, while a suitable stainless steel grade may be required for applications exposed to moisture, weathering or corrosive conditions.
Installing Pan Head Self Drilling Screws
Pan Head Self Drilling Screws should be installed using the correct driver size at a controlled speed. Hold the screw square to the fixing surface while the drill point cuts through the material, then reduce the installation speed as the head approaches the surface.
Avoid excessive tightening torque, as this may strip the newly formed thread, damage the drive recess or deform thinner sheet material. The screw should be tightened until the underside of the pan head sits securely against the component without crushing or distorting it.
For help selecting the correct Pan Head Self Drilling Screw for your material thickness or to discuss larger order quantities, please contact our technical sales team on 01233 713581.
