Countersunk Thread Forming Screws
Countersunk Thread Forming Screws, also commonly known as Countersunk Thread Rolling Screws, are designed to create a secure internal thread as they are driven into a pre-drilled or pre-formed hole. Their countersunk head is designed to sit flush with, or below, the surface of the mating component, making them ideal for applications where a neat, low-profile finish is required.
Rather than cutting and removing material in the same way as a conventional thread cutting screw, thread forming screws displace and reform the surrounding material to create a mating thread. This can help provide strong thread engagement while reducing the generation of loose swarf during installation.
How Do Countersunk Thread Forming Screws Work?
Countersunk Thread Forming Screws use a specially designed thread profile to progressively form an internal thread within the mating material. As the screw is installed, the material is displaced around the thread rather than being removed.

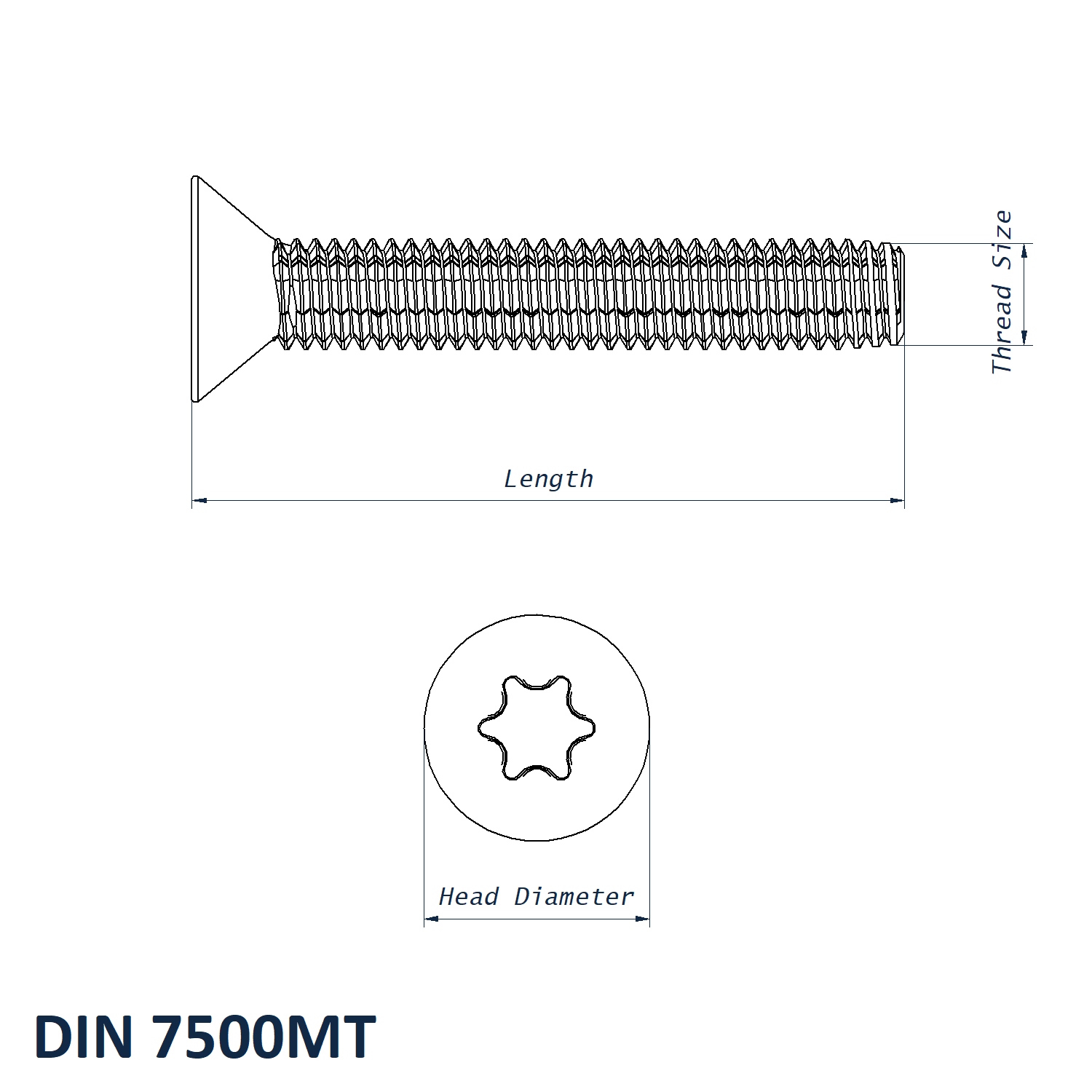

The countersunk head fits into a corresponding countersink within the component, producing a flush finished surface. This makes these screws particularly suitable where protruding fastener heads could interfere with adjoining components, moving parts or the finished appearance of an assembly.
Countersunk Thread Forming Screws and Taptite Screws
Countersunk Thread Forming Screws operate on a similar principle to Taptite® screws, which are widely recognised for their thread rolling and thread forming characteristics. Both fastening types form their mating thread during installation and can reduce or eliminate the requirement for a separate tapping operation.
Taptite-style screws commonly feature a specialised lobular or trilobular geometry designed to reduce installation torque while providing secure thread engagement and resistance to loosening. Countersunk Thread Forming Screws can provide similar installation and performance characteristics, although the precise thread form and specification will vary between individual products.
Benefits of Countersunk Thread Forming Screws
- Form their own mating thread during installation
- Also commonly known as Countersunk Thread Rolling Screws
- Similar operating principle and performance characteristics to Taptite screws
- Countersunk head provides a flush, low-profile finish
- Can reduce or eliminate separate tapping operations
- Produce little or no cutting swarf compared with thread cutting screws
- Provide strong thread engagement
- Good resistance to vibration and loosening
- Suitable for automated and high-volume assembly
- Available in a range of thread sizes, lengths, materials and drive styles
Common Applications
Countersunk Thread Forming Screws are widely used throughout automotive manufacturing, electrical equipment, sheet metal fabrication, machinery, appliances, enclosures and general industrial assemblies. Their combination of thread forming performance and a flush-fitting head makes them particularly useful where both secure fastening and a clean finished surface are required.
For help selecting the correct Countersunk Thread Forming Screw, thread size or drive style for your application, or to discuss larger order quantities, please contact our sales team on 01233 713581.
