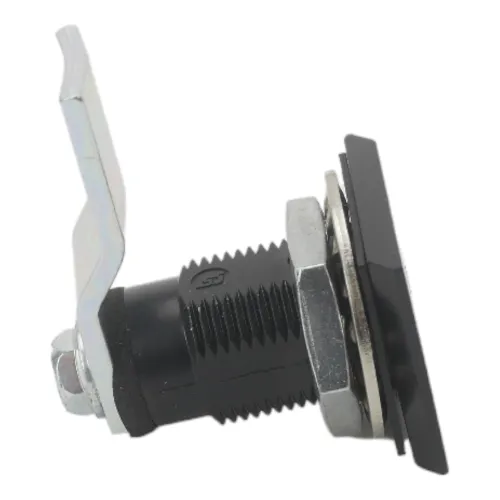

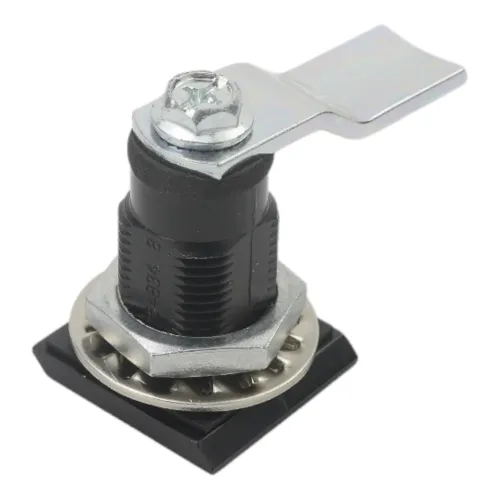

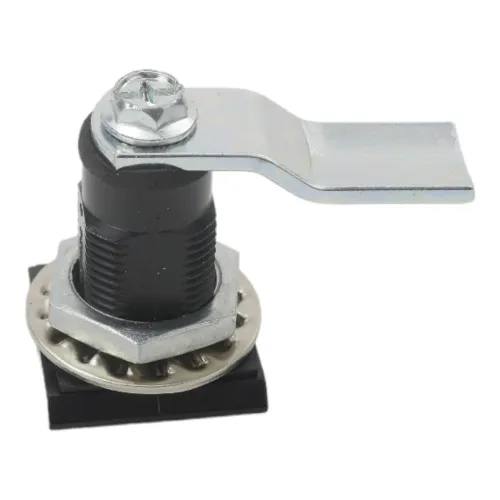

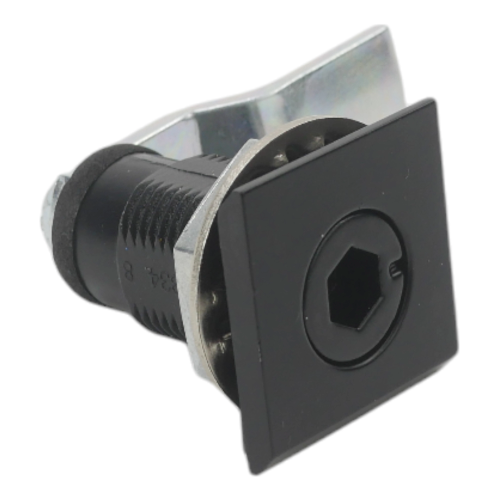

Non-adjustable Allen Key Quarter Turn Camlock
Product code:
LOCK121
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £12.57 | £15.09 |
| 10 - 24 | £12.57 | £15.09 |
| 25 - 49 | £10.06 | £12.07 |
| 50 - 99 | £9.56 | £11.47 |
| 100 + | £8.55 | £10.26 |
£15.09
/ each
Quantity:

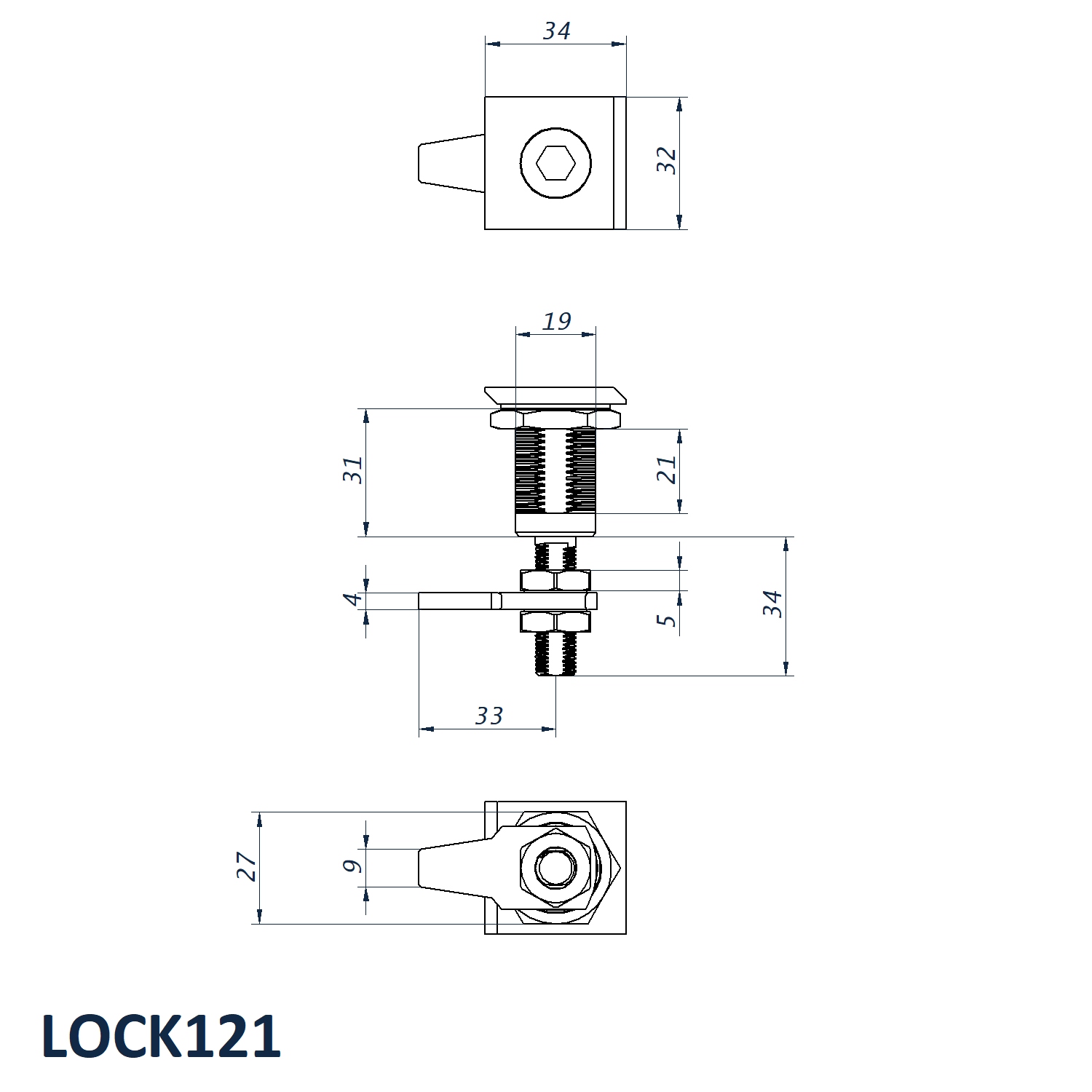

Product Specification
| Head Width | 32mm |
| Material | Die Cast Zinc & Zinc Plated Steel |
| Style | Non Adjustable |
| Cam Depth | 31mm |
| Cam Length | 33mm |
| Hole Size | 20mm |
| Head Length | 34mm |
| Across Flats | 27mm |
| Thread Length | 21mm |
| Thread Size | 1" - 20 UNF |
| Key Type | Allen Key (Included) |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
This Adjustable Allen Key Camlock has a Hole Size of 20mm, a Thread Length of 21mm and a Thread Size of 1" - 20 UNF. It is ideal for applications such as cabinets and secure enclosures. This Allen Key Camlock is made from Die Cast Zinc & Zinc Plated Steel and has an IP Rating of IP45; protecting it from dust and water. Die Cast Zinc & Zinc Plated Steel has a strength of 48,000 PSI which makes it ideal for heavy duty use. This Camlock has a Cam Length of 33mm and a Head Width of 32mm. It can be locked and unlocked with the use of a matching Allen Key which is supplied.
