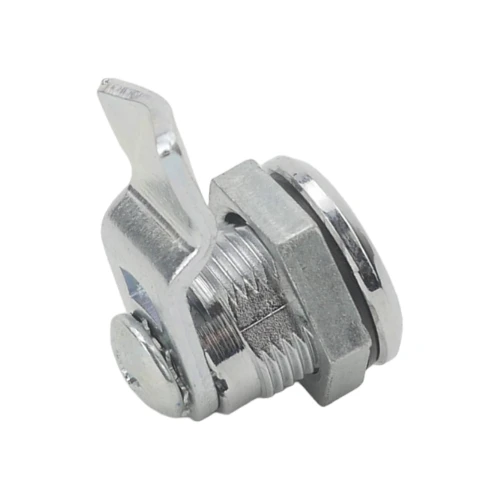

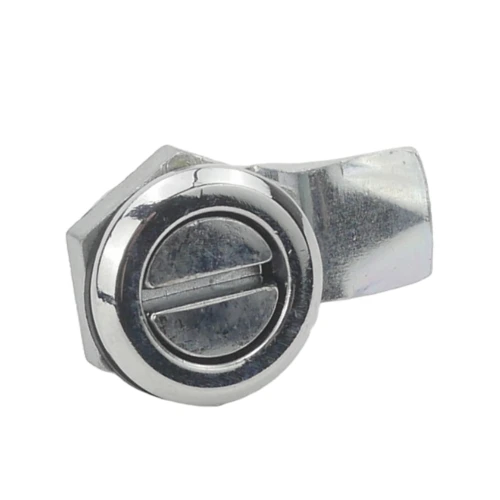

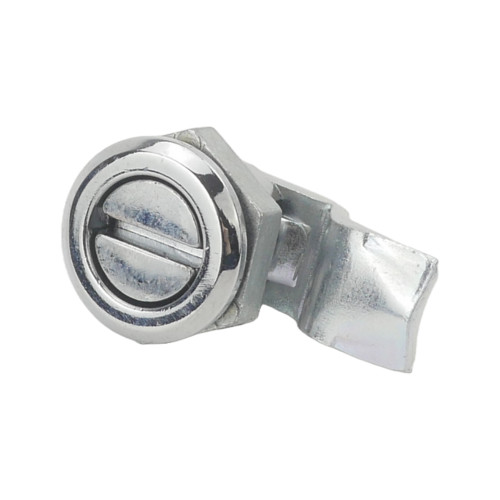

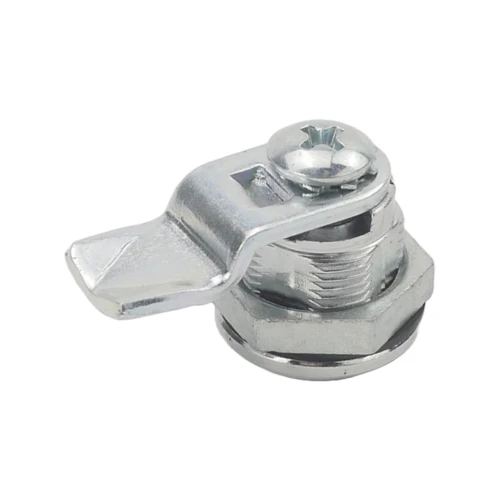

7.4mm Cam Depth Slotted Key Camlock
Product code:
LOCK002
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £5.06 | £6.07 |
| 10 - 24 | £4.37 | £5.24 |
| 25 - 49 | £4.05 | £4.86 |
| 50 - 99 | £3.84 | £4.61 |
| 100 + | £3.44 | £4.13 |
£6.07
/ each
Quantity:

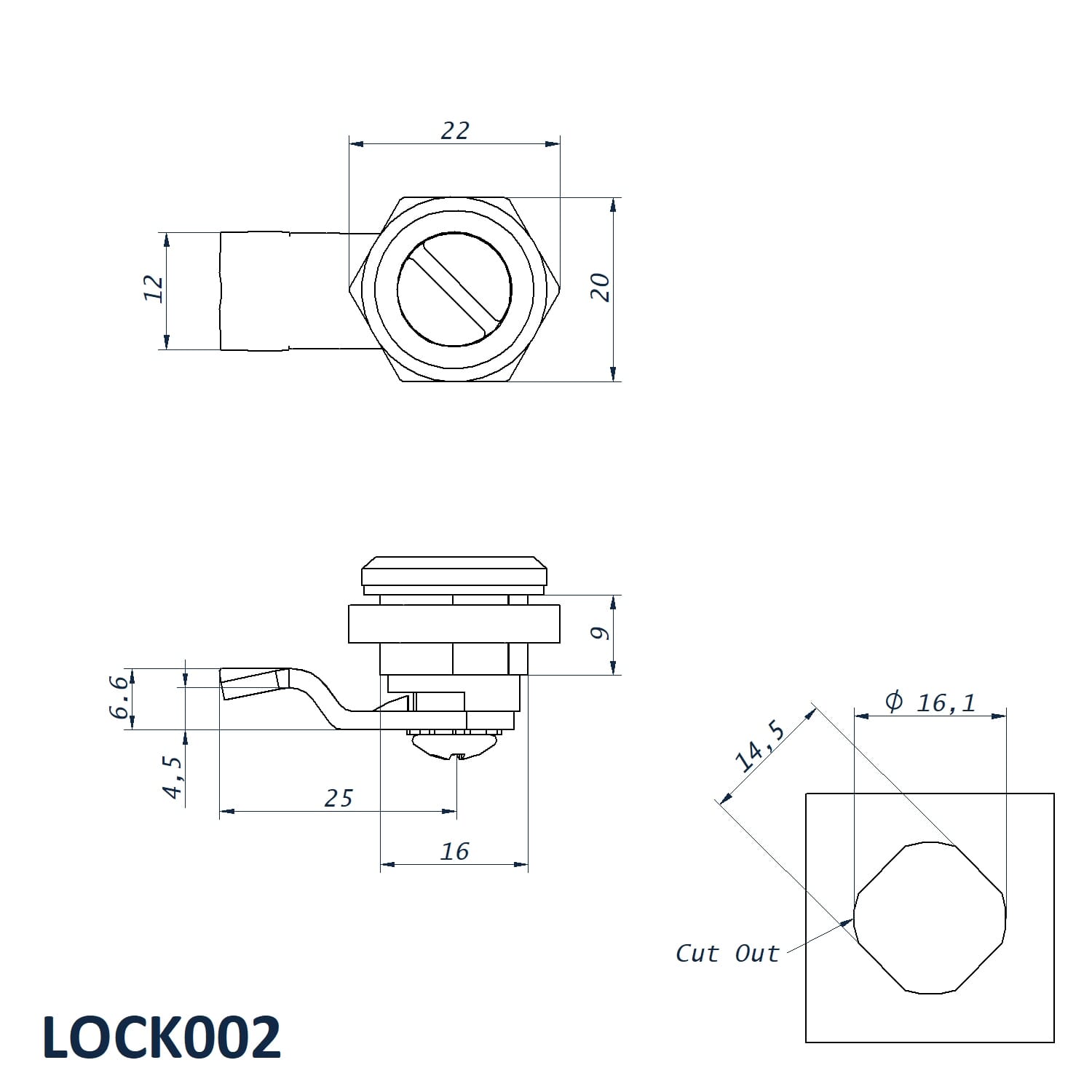

Product Specification
| Material | Die Cast Zinc Plated Steel |
| Head Diameter | 20mm |
| Key Type | Flat Head Screwdriver (Not Included) |
| Cam Depth | 7.4mm |
| Cam Length | 25mm |
| Hole Size | 16.1mm |
| Across Flats | 22mm |
| Thread Length | 9mm |
| Thread Size | M16 |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
This Slotted Key Camlock has a Hole Size of 16.1mm, a Thread Length of 9mm and a Thread Size of M16. It is ideal for applications such as cabinets, enclosures, doors, drawers and access panels. This Slotted Key Camlock is made from Die Cast Zinc Plated Steel and has an IP Rating of IP45; protecting it from dust and water. Die Cast Zinc Plated Steel is hardwearing and has a strength of 48,000 PSI. This Camlock has a Cam Length of 25mm and a Head Diameter of 20mm. It Can be locked and unlocked with the use of a Flat Head Screwdriver.
