M4 x 10mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 11kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.31 | £1.57 |
| 2 - 249 | £1.30 | £1.56 |
| 250 - 499 | £1.20 | £1.44 |
| 500 - 999 | £1.11 | £1.33 |
| 1000 - 2499 | £1.02 | £1.22 |
| 2500 + | £0.93 | £1.11 |
£1.57 / each
.png)
Product Specification
| Diameter | 15mm |
| Height | 15mm |
| Thread Size | M4 |
| Thread Length | 10mm |
| Type | Male to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 11kg |
| Deflection | 1.3mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M4 x 10mm Male to Female Anti Vibration Mount | 15mm x 15mm Bobbin | 11kg Weight Rating | Zinc Steel & Natural Rubber
Frequently specified for automation frames, this M4 natural rubber vibration mount offers a simple rubber mounting solution for light to heavy duty assemblies.
It suits projects needing a natural rubber isolator, bonded metal mount or resilient machinery fixing. This male to female arrangement gives one projecting thread and one tapped fixing point, making it useful where access differs on each side of the assembly. The black natural rubber section helps absorb shock loads while the metal threads provide secure mechanical fixing.
Common Applications
- Fixing battery enclosure sections
- Isolating fan housings from panels
- Isolating packaging machine parts
- Securing engine ancillary brackets

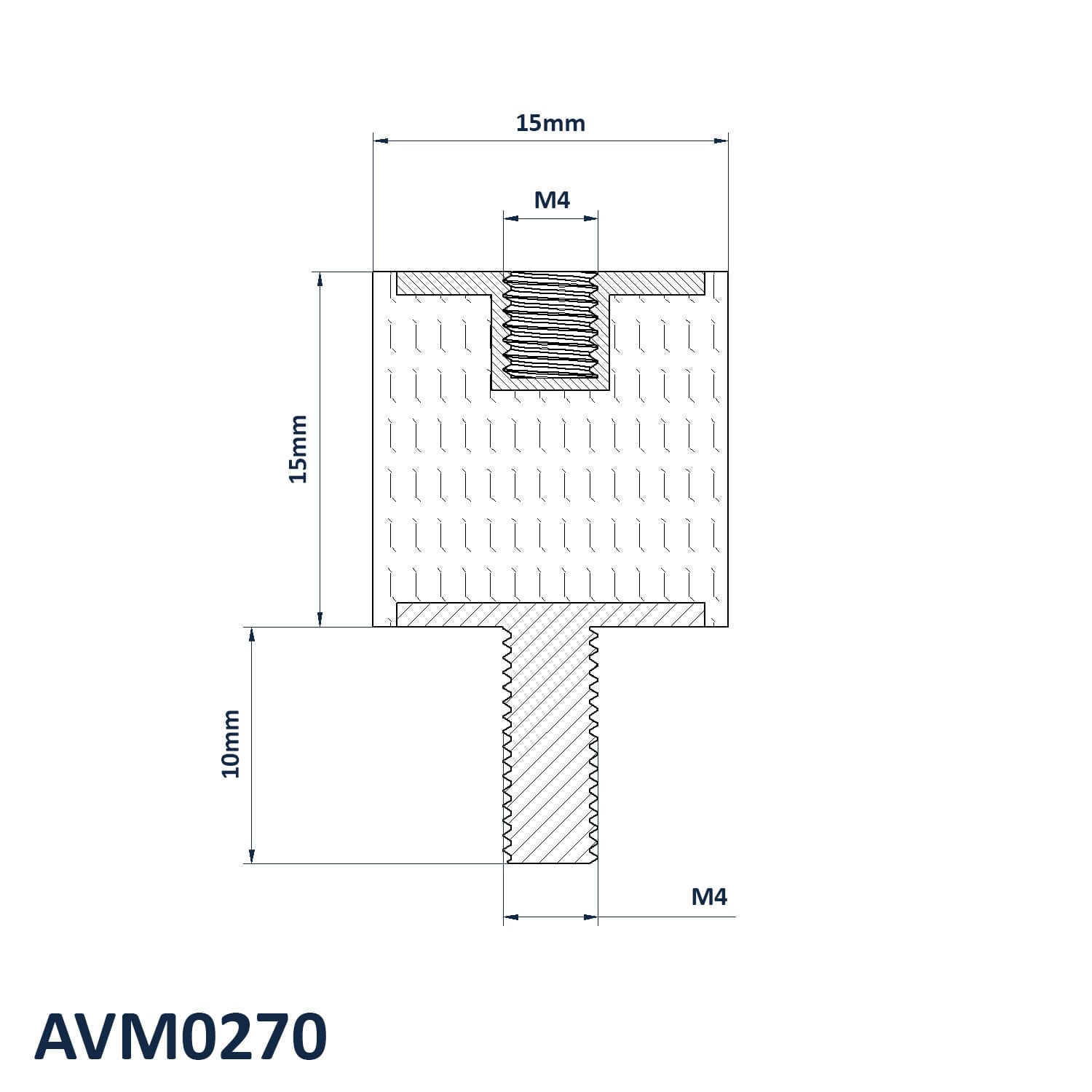

M4 x 10mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 15mm
- Height: 15mm
- Thread Size: M4
- Thread Length: 10mm
- Type: Male to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 11kg
- Deflection: 1.3mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
