M12 x 37mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 214kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £21.37 | £25.64 |
| 2 - 249 | £21.36 | £25.63 |
| 250 - 499 | £19.83 | £23.80 |
| 500 - 999 | £18.31 | £21.97 |
| 1000 - 2499 | £16.78 | £20.14 |
| 2500 + | £15.26 | £18.31 |
£25.64 / each
Product Specification
| Diameter | 70mm |
| Height | 60mm |
| Thread Size | M12 |
| Thread Length | 37mm |
| Type | Male to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 214kg |
| Deflection | 5.4mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M12 x 37mm Male to Female Anti Vibration Mount | 70mm x 60mm Bobbin | 214kg Weight Rating | Zinc Steel & Natural Rubber
Suitable for metal enclosure production, the 70mm x 60mm rubber bobbin buffer is built for mounting parts that need separation from vibration and mechanical noise.
A 5.4mm deflection value helps the mount cushion movement while maintaining a stable fixing point. Because the mount has one male thread and one female thread, it suits mixed fixing layouts where a stud is needed on one face and a recessed threaded connection is preferred on the other. This makes it suitable as a rubber machinery foot, equipment isolator or anti vibration bobbin in compact builds.
Common Applications
- Isolating conveyor sensors
- Cushioning measuring equipment
- Isolating compressor guards
- Mounting small electric motors

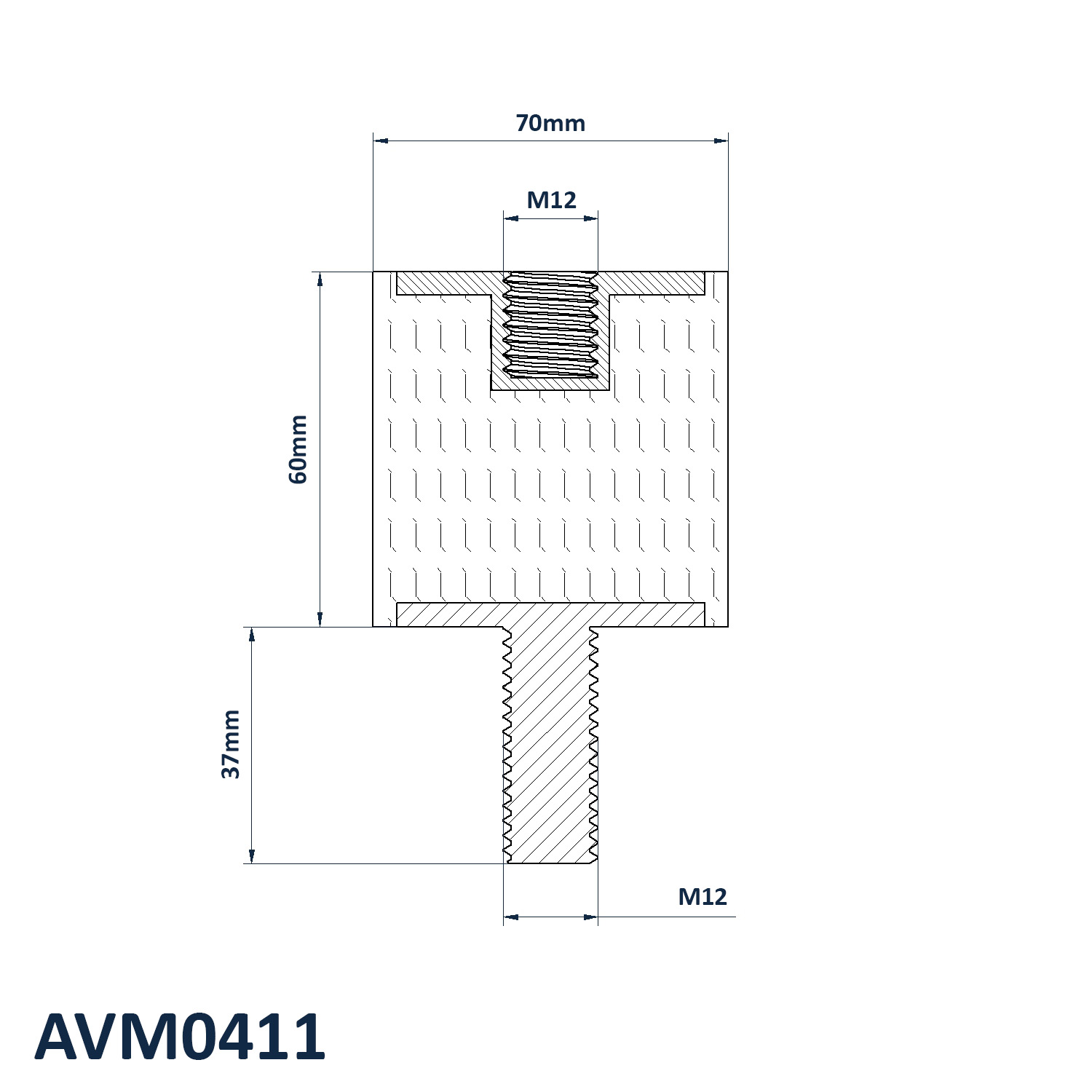

M12 x 37mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 70mm
- Height: 60mm
- Thread Size: M12
- Thread Length: 37mm
- Type: Male to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 214kg
- Deflection: 5.4mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
