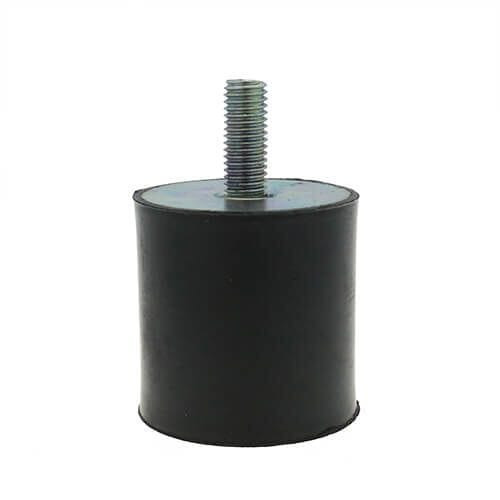

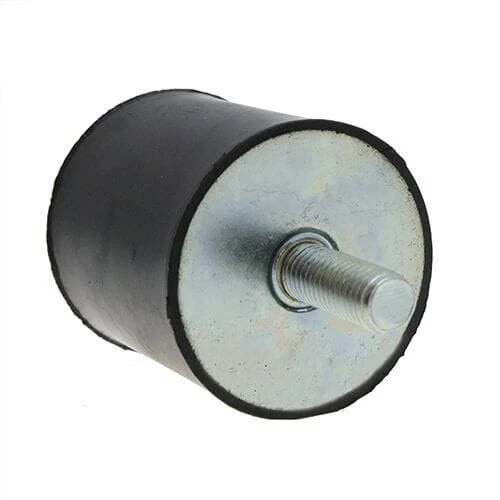

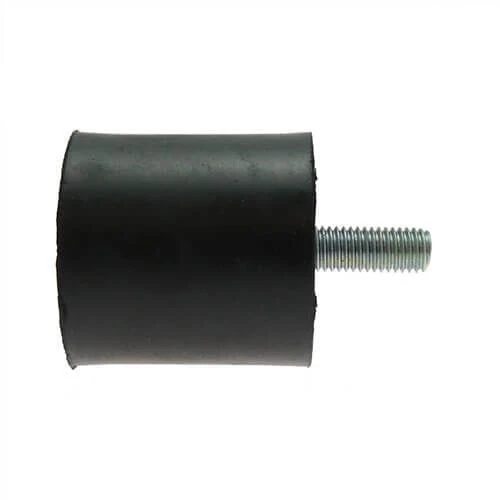

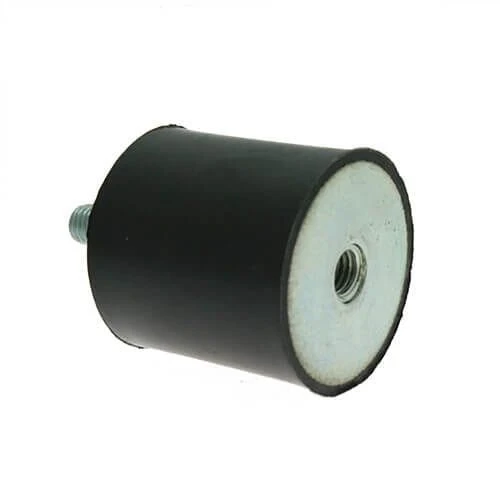

M12 x 37mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 221kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £13.36 | £16.03 |
| 2 - 249 | £13.35 | £16.02 |
| 250 - 499 | £12.39 | £14.87 |
| 500 - 999 | £11.44 | £13.73 |
| 1000 - 2499 | £10.49 | £12.59 |
| 2500 + | £9.53 | £11.44 |
£16.03 / each
.png)
Product Specification
| Diameter | 75mm |
| Height | 25mm |
| Thread Size | M12 |
| Thread Length | 37mm |
| Type | Male to Female |
| Shore Hardness | 45 IRHD |
| Weight Rating | 221kg |
| Deflection | 1.9mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M12 x 37mm Male to Female Anti Vibration Mount | 75mm x 25mm Bobbin | 221kg Weight Rating | Zinc Steel & Natural Rubber
Developed for OEM manufacture, this M12 male to female shock absorbing mount supports reliable mounting where a controlled amount of deflection is required.
It can be used as a threaded vibration mount, industrial rubber buffer or isolation fixing for general engineering work. Because the mount has one male thread and one female thread, it suits mixed fixing layouts where a stud is needed on one face and a recessed threaded connection is preferred on the other. The zinc steel and natural rubber material pairing supports everyday industrial use where corrosion protection and vibration control are both required.
Common Applications
- Fitting serviceable covers
- Mounting small gearbox housings
- Isolating compressor guards
- Mounting exhaust fan brackets

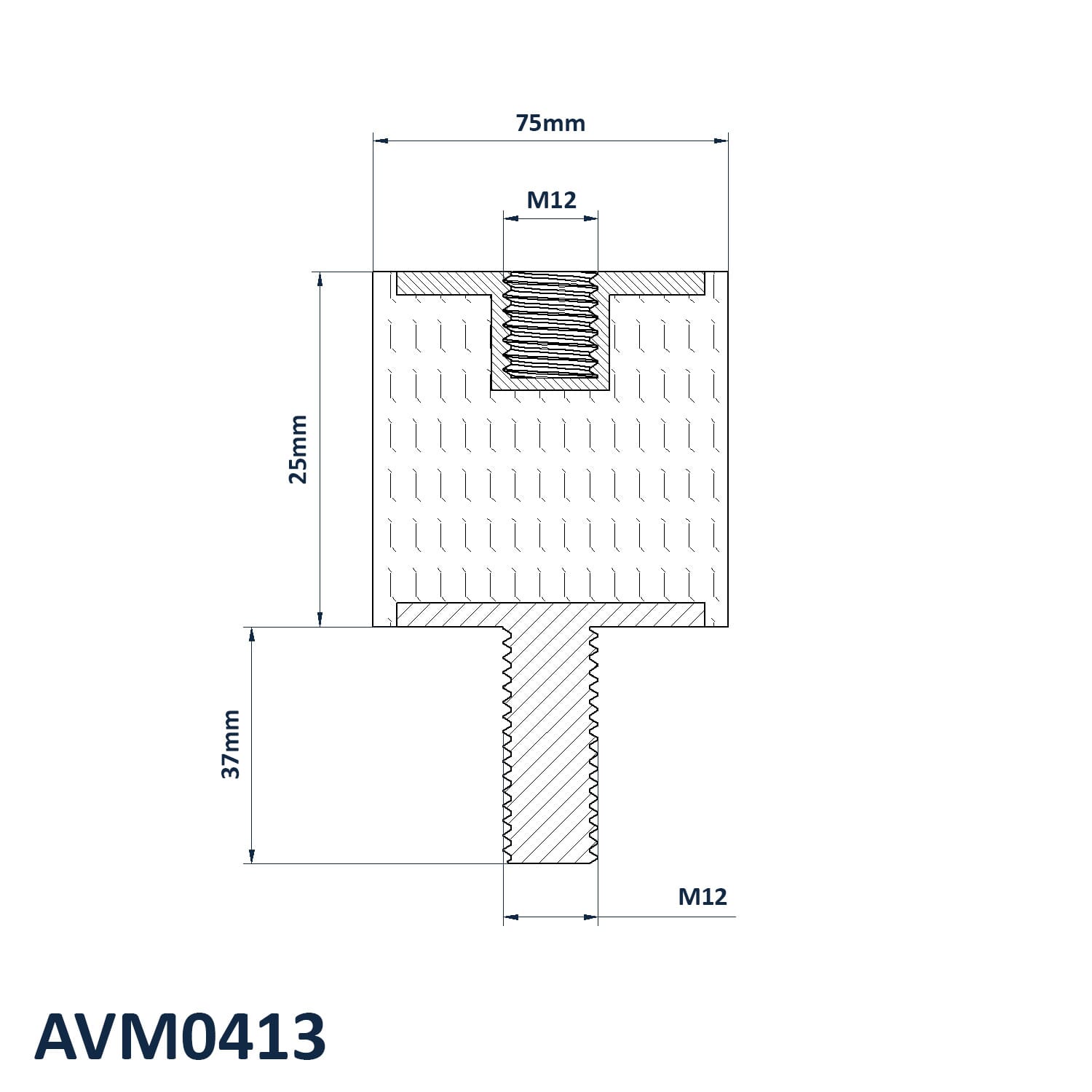

M12 x 37mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 75mm
- Height: 25mm
- Thread Size: M12
- Thread Length: 37mm
- Type: Male to Female
- Shore Hardness: 45 IRHD
- Weight Rating: 221kg
- Deflection: 1.9mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
