M10 Anti-Vibration Mount - Female-Female Bobbin (Weight Rating 145kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £17.74 | £21.29 |
| 2 - 249 | £17.73 | £21.28 |
| 250 - 499 | £16.47 | £19.76 |
| 500 - 999 | £15.20 | £18.24 |
| 1000 - 2499 | £13.93 | £16.72 |
| 2500 + | £12.67 | £15.20 |
£21.29 / each
Product Specification
| Diameter | 70mm |
| Height | 40mm |
| Thread Size | M10 |
| Thread Length | N/A |
| Type | Female to Female |
| Shore Hardness | 45 IRHD |
| Weight Rating | 145kg |
| Deflection | 3.4mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M10 Female to Female Anti Vibration Mount | 70mm x 40mm Bobbin | 145kg Weight Rating | Zinc Steel & Natural Rubber
Suitable for engineering equipment, the M10 vibration control bobbin is built for mounting parts that need separation from vibration and mechanical noise.
The black natural rubber section helps absorb shock loads while the metal threads provide secure mechanical fixing. The female to female arrangement provides a lower-profile fixing before installation, accepting male threaded fasteners into both ends of the rubber body. This makes it suitable as a rubber machinery foot, equipment isolator or anti vibration bobbin in compact builds.
Common Applications
- Supporting automation cell guards
- Fixing battery enclosure sections
- Isolating fan housings from panels
- Isolating packaging machine parts

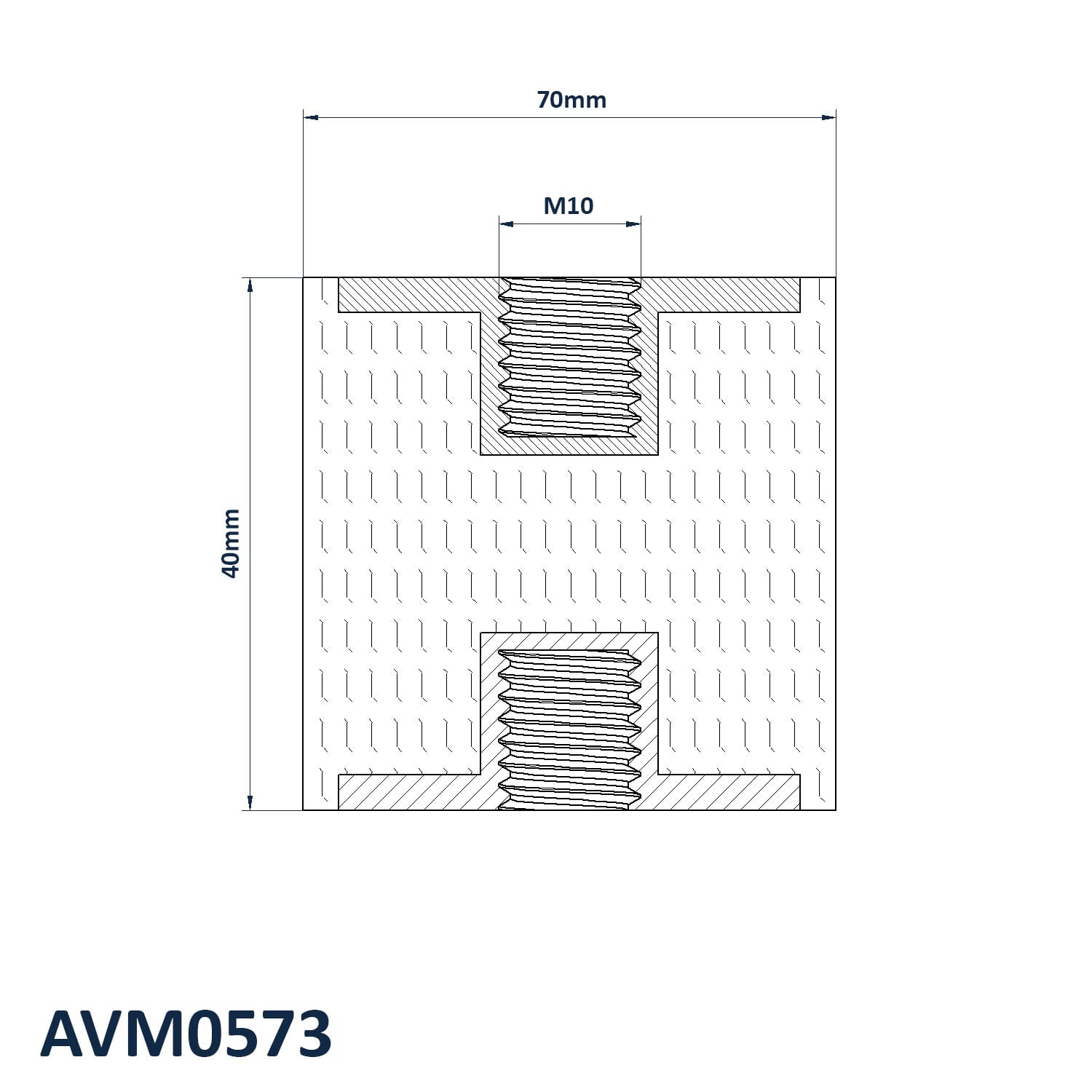

M10 70mm x 40mm Female to Female Anti Vibration Mount Dimensions
- Diameter: 70mm
- Height: 40mm
- Thread Size: M10
- Type: Female to Female
- Shore Hardness: 45 IRHD
- Weight Rating: 145kg
- Deflection: 3.4mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a female to female bobbin when both sides need to accept separate bolts and a lower profile mount is preferred before assembly. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
