M10 Anti-Vibration Mount - Female-Female Bobbin (Weight Rating 270kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £17.74 | £21.29 |
| 2 - 249 | £17.73 | £21.28 |
| 250 - 499 | £16.47 | £19.76 |
| 500 - 999 | £15.20 | £18.24 |
| 1000 - 2499 | £13.93 | £16.72 |
| 2500 + | £12.67 | £15.20 |
£21.29 / each
.png)
Product Specification
| Diameter | 70mm |
| Height | 40mm |
| Thread Size | M10 |
| Thread Length | N/A |
| Type | Female to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 270kg |
| Deflection | 3.4mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M10 Female to Female Anti Vibration Mount | 70mm x 40mm Bobbin | 270kg Weight Rating | Zinc Steel & Natural Rubber
Developed for trailer manufacture, this M10 female to female anti vibration mount supports reliable mounting where a controlled amount of deflection is required.
Typical search intent for this size includes threaded rubber mount, vibration control bobbin and anti-vibration fixing for equipment panels. The female to female arrangement provides a lower-profile fixing before installation, accepting male threaded fasteners into both ends of the rubber body. The mount offers a resilient buffer between connected parts, helping reduce noise from fans, motors and moving assemblies.
Common Applications
- Reducing resonance in frame assemblies
- Mounting lightweight machine frames
- Isolating fan housings from panels
- Mounting trailer equipment

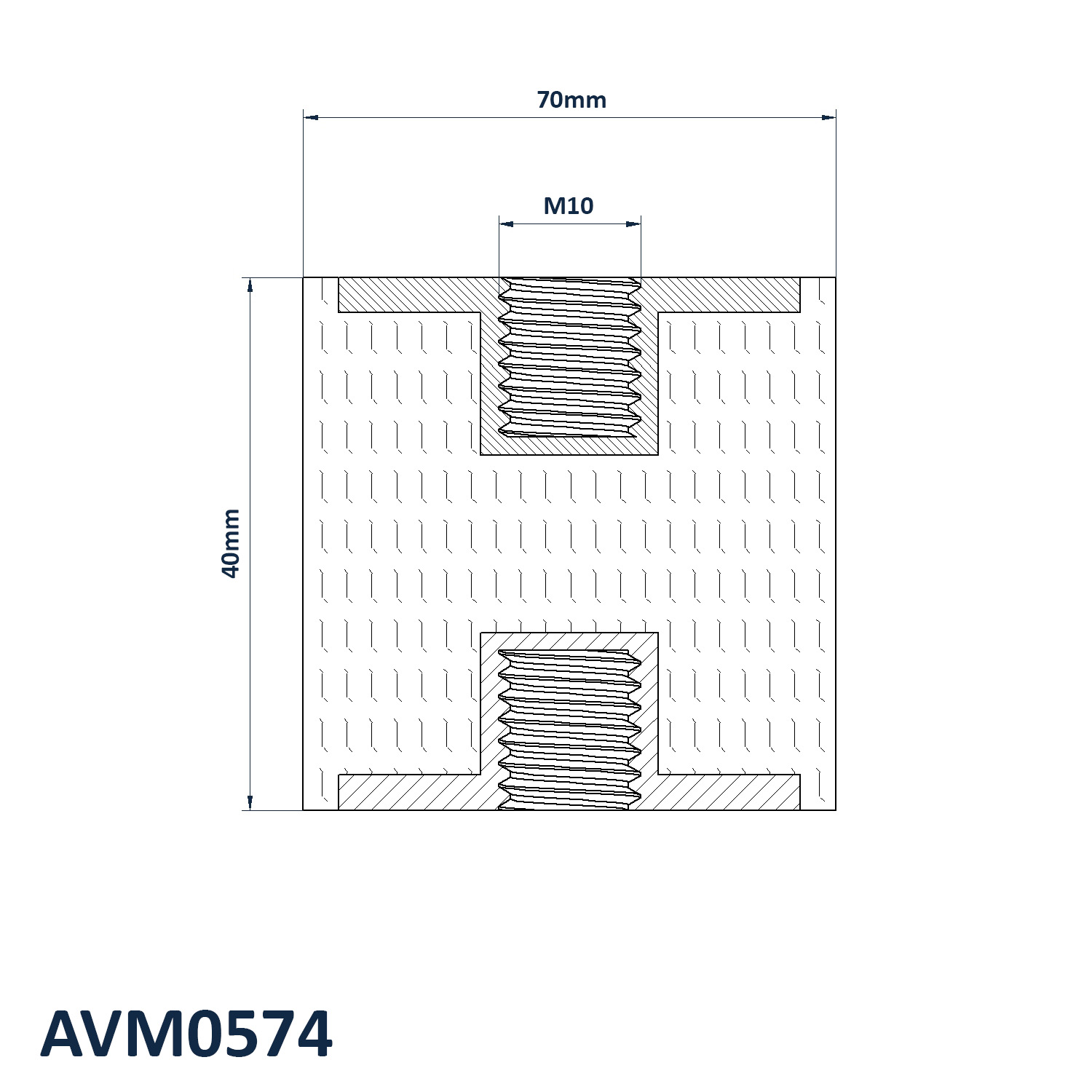

M10 70mm x 40mm Female to Female Anti Vibration Mount Dimensions
- Diameter: 70mm
- Height: 40mm
- Thread Size: M10
- Type: Female to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 270kg
- Deflection: 3.4mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a female to female bobbin when both sides need to accept separate bolts and a lower profile mount is preferred before assembly. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
