M6 x 18mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 12kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.57 | £1.89 |
| 2 - 249 | £1.57 | £1.88 |
| 250 - 499 | £1.45 | £1.74 |
| 500 - 999 | £1.34 | £1.61 |
| 1000 - 2499 | £1.23 | £1.47 |
| 2500 + | £1.12 | £1.34 |
Product Specification
| Diameter | 20mm |
| Height | 25mm |
| Thread Size | M6 |
| Thread Length | 18mm |
| Type | Male to Male |
| Shore Hardness | 60 IRHD |
| Weight Rating | 12kg |
| Deflection | 2.2mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00

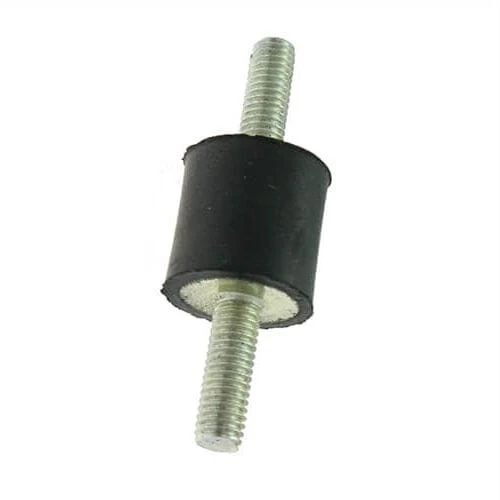

M6 x 18mm Male to Male Anti Vibration Mount | 20mm x 25mm Bobbin | 12kg Weight Rating | Zinc Steel & Natural Rubber
Ideal for construction plant, the M6 male to male vibration damper mount provides a neat vibration control point where space and fixing access are limited.
Because both sides are male threaded, this mount can be secured with nuts or threaded receiving points on each side. That makes it suitable for equipment where a positive external fixing is needed at both ends. The black natural rubber section helps absorb shock loads while the metal threads provide secure mechanical fixing. The mount fits applications where a resilient fixing, vibration isolator or rubber mounting bobbin is required.
Common Applications
- Securing pump brackets
- Reducing noise in production equipment
- Mounting industrial lighting frames
- Supporting commercial appliance panels
M6 x 18mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 20mm
- Height: 25mm
- Thread Size: M6
- Thread Length: 18mm
- Type: Male to Male
- Shore Hardness: 60 IRHD
- Weight Rating: 12kg
- Deflection: 2.2mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
