M6 x 18mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 13kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.53 | £1.84 |
| 2 - 249 | £1.52 | £1.83 |
| 250 - 499 | £1.42 | £1.70 |
| 500 - 999 | £1.31 | £1.57 |
| 1000 - 2499 | £1.20 | £1.44 |
| 2500 + | £1.09 | £1.31 |
Product Specification
| Diameter | 20mm |
| Height | 20mm |
| Thread Size | M6 |
| Thread Length | 18mm |
| Type | Male to Male |
| Shore Hardness | 60 IRHD |
| Weight Rating | 13kg |
| Deflection | 1.6mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M6 x 18mm Male to Male Anti Vibration Mount | 20mm x 20mm Bobbin | 13kg Weight Rating | Zinc Steel & Natural Rubber
Engineered for small engine installations, the M6 male to male machinery mount combines a compact 20mm x 20mm rubber bobbin with bonded metal fixings for controlled isolation.
The specified 13kg load capacity makes the mount easier to match to equipment weight and expected movement. The male to male bobbin layout has threaded studs on both faces. This is useful when the mount needs to connect two brackets, plates or threaded fixing points while the rubber section sits between them. It can be used as a threaded vibration mount, industrial rubber buffer or isolation fixing for general engineering work.
Common Applications
- Mounting industrial sensor housings
- Mounting generator covers
- Securing workshop machinery covers
- Fixing air handling unit panels

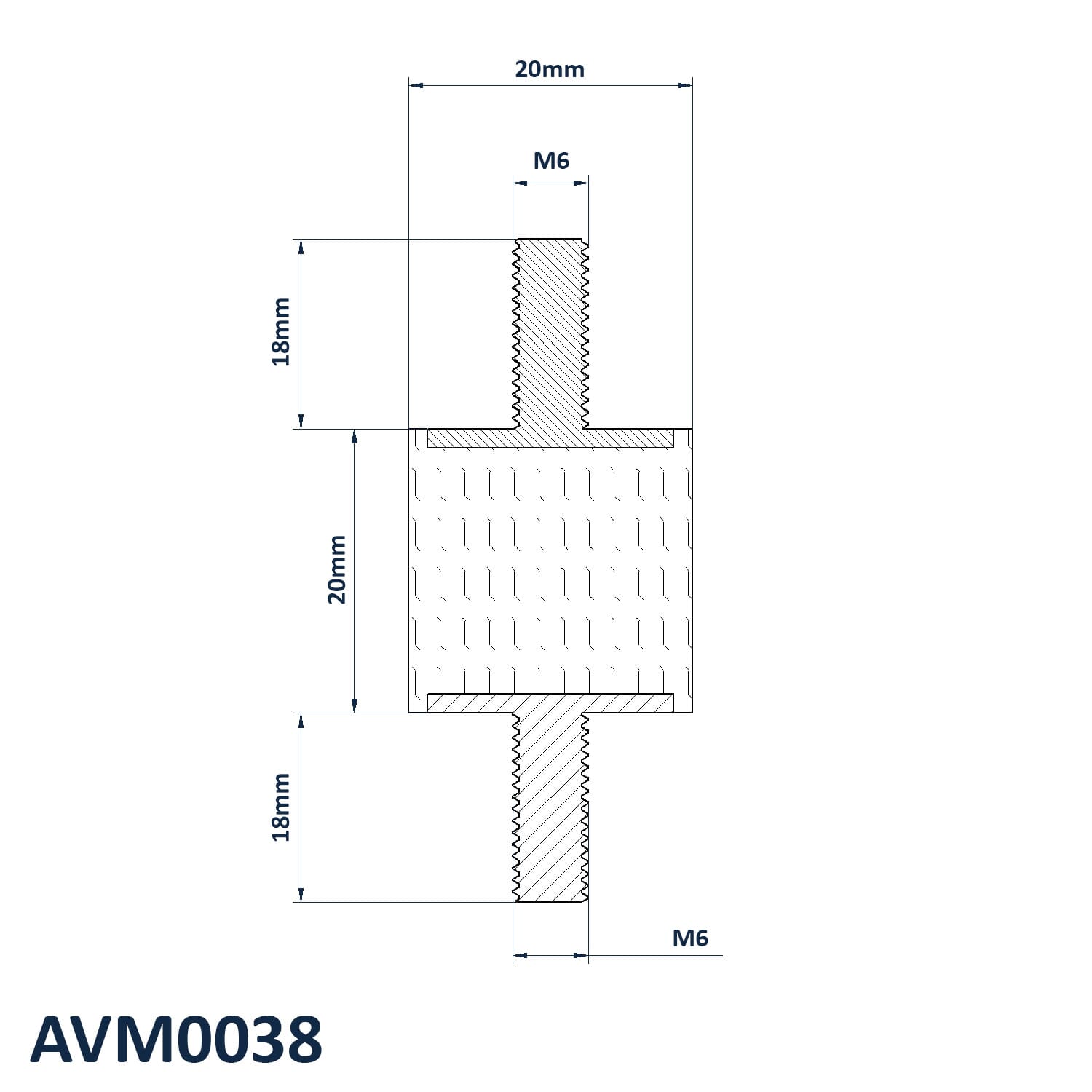

M6 x 18mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 20mm
- Height: 20mm
- Thread Size: M6
- Thread Length: 18mm
- Type: Male to Male
- Shore Hardness: 60 IRHD
- Weight Rating: 13kg
- Deflection: 1.6mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
