M6 x 18mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 6.7kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.57 | £1.89 |
| 2 - 249 | £1.57 | £1.88 |
| 250 - 499 | £1.45 | £1.74 |
| 500 - 999 | £1.34 | £1.61 |
| 1000 - 2499 | £1.23 | £1.47 |
| 2500 + | £1.12 | £1.34 |
Product Specification
| Diameter | 20mm |
| Height | 25mm |
| Thread Size | M6 |
| Thread Length | 18mm |
| Type | Male to Male |
| Shore Hardness | 45 IRHD |
| Weight Rating | 6.7kg |
| Deflection | 2.2mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M6 x 18mm Male to Male Anti Vibration Mount | 20mm x 25mm Bobbin | 6.7kg Weight Rating | Zinc Steel & Natural Rubber
Manufactured for small engine installations, this 20mm diameter rubber vibration mount helps separate moving assemblies from surrounding frames without needing a large isolator.
It provides a useful alternative to rigid spacers, helping create a controlled vibration break in fabricated assemblies. The male to male bobbin layout has threaded studs on both faces. This is useful when the mount needs to connect two brackets, plates or threaded fixing points while the rubber section sits between them. Its rubber body provides vibration isolation without the need for complex brackets or separate damping pads.
Common Applications
- Mounting exhaust fan brackets
- Securing HVAC casing sections
- Securing workshop machinery covers
- Reducing shock in equipment skids

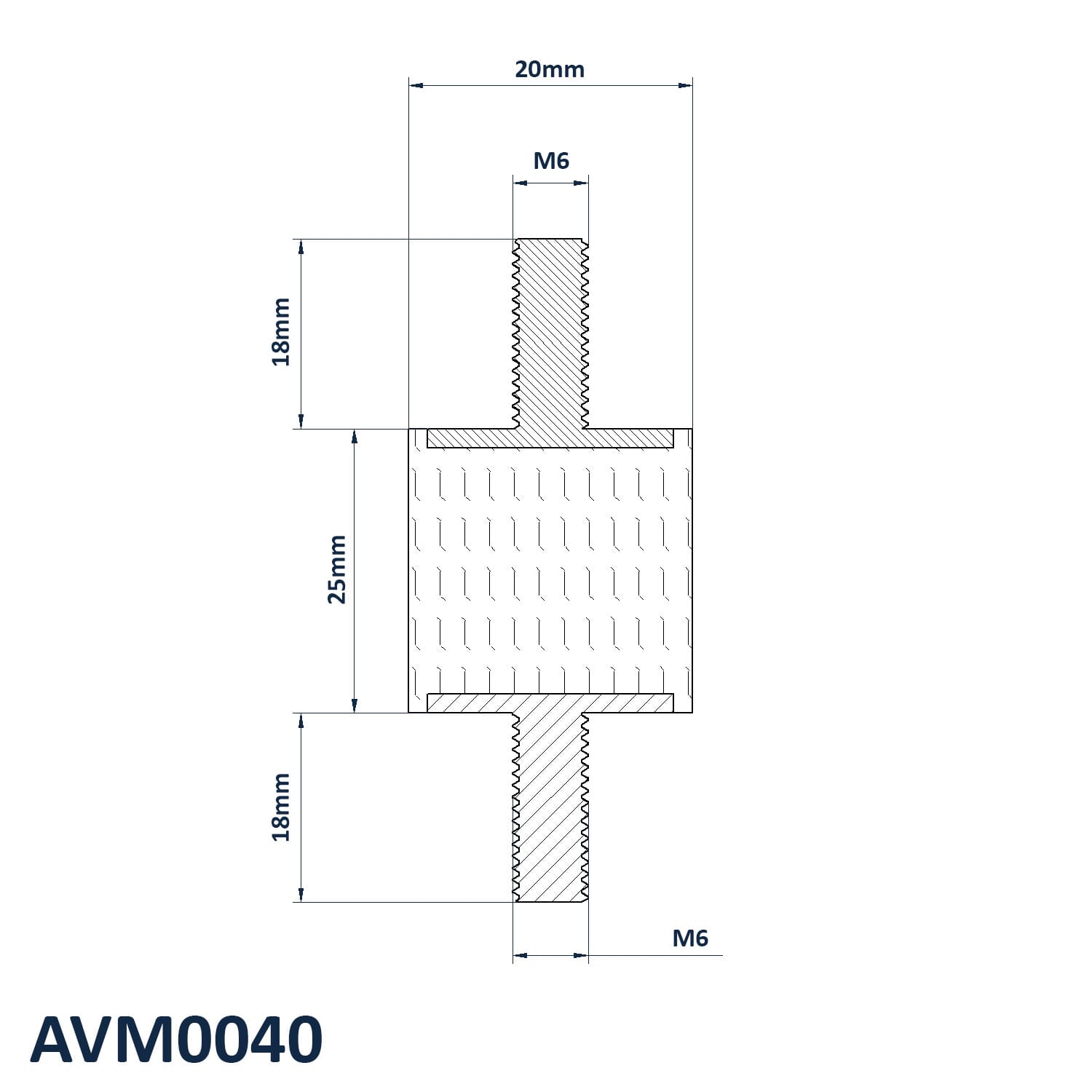

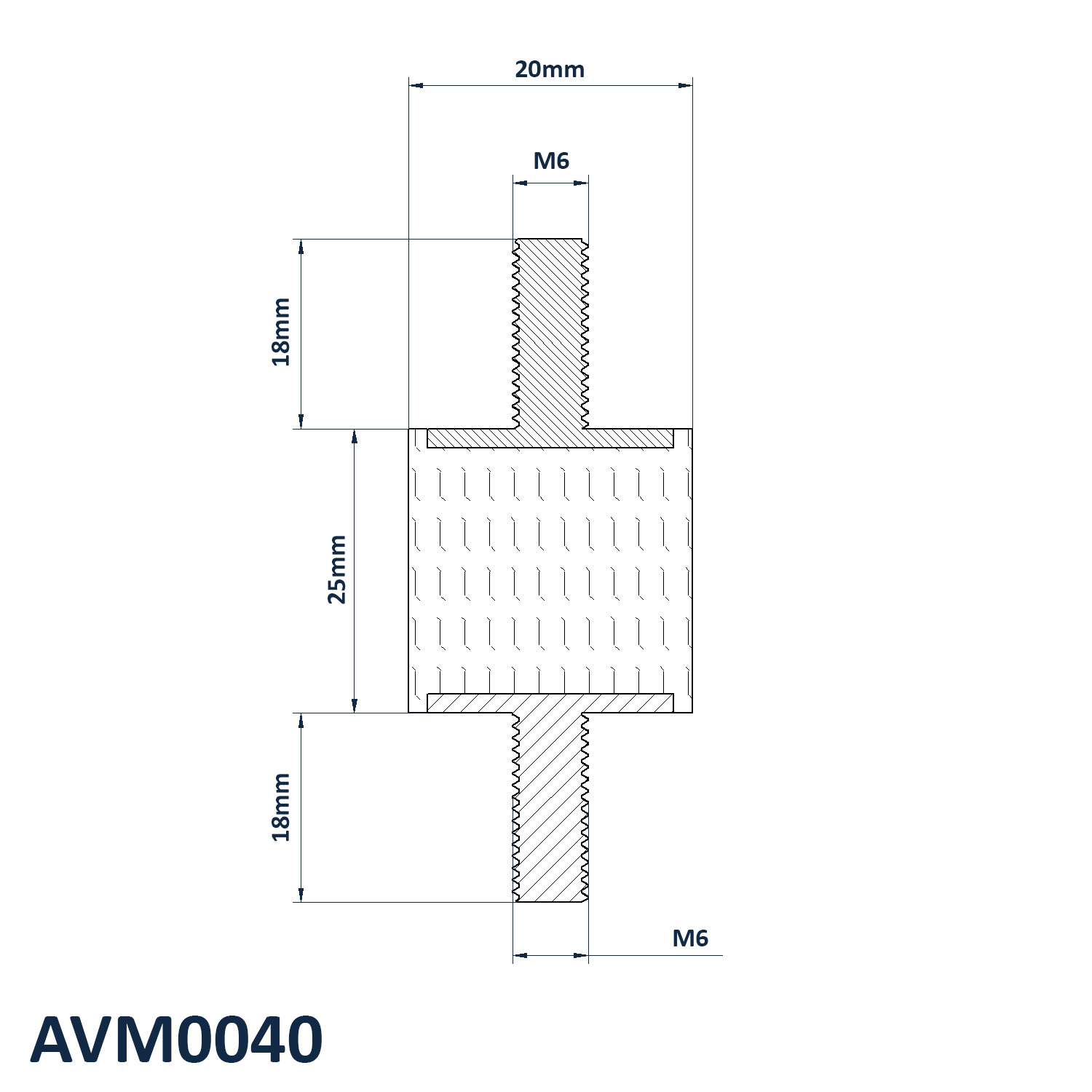

M6 x 18mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 20mm
- Height: 25mm
- Thread Size: M6
- Thread Length: 18mm
- Type: Male to Male
- Shore Hardness: 45 IRHD
- Weight Rating: 6.7kg
- Deflection: 2.2mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
