Complete Guide To Gaskets
The Complete Guide to Gaskets
Gaskets are mechanical sealing components fitted between mating surfaces to help prevent fluids or gases escaping under compression.
By filling small gaps and surface irregularities, the correct gasket can support leak prevention, pressure retention and reliable operation across industrial, automotive and plumbing applications.
Gaskets at a Glance
A quick overview of what gaskets do and where they are used.
| Feature | Purpose | Typical Applications |
|---|---|---|
| Sealing | Fills small gaps between mating surfaces. | Flanges, joints, pumps, valves and housings. |
| Leak Prevention | Helps contain fluids and gases within the system. | Pipelines, engines, appliances and plumbing. |
| Pressure Retention | Supports stable internal pressure when correctly compressed. | Process equipment, engines and pressurised systems. |
| Protection | Can help block dust, dirt and unwanted contaminants. | Machinery, enclosures and sensitive equipment. |
What Are Gaskets?
A gasket is a mechanical sealing device positioned between two mating surfaces, normally around a flange, joint, housing or cover. Once compressed, it fills small imperfections that could otherwise create a leak path.
The correct gasket must suit the surface shape, operating temperature, pressure, fluid or gas and level of movement involved. This makes accurate specification important for dependable performance.
A Gasket May Help To
- Prevent fluid or gas leakage
- Maintain internal pressure
- Reduce vibration transfer
- Block contaminants
- Compensate for surface irregularities
Where Are Gaskets Used?
Common gasket applications across industry, transport and domestic systems.
Industrial and Manufacturing
- Pipe flanges: Helping seal joints in oil and gas, chemical processing and water treatment.
- Heat exchangers: Supporting high-pressure and high-temperature sealing applications.
- Machinery: Helping prevent leaks in pumps, compressors and valves.
Automotive
- Engine components: Sealing combustion, coolant and oil pathways.
- Exhaust systems: Withstanding elevated temperatures and pressure.
- Transmissions: Providing flexible sealing around covers and housings.

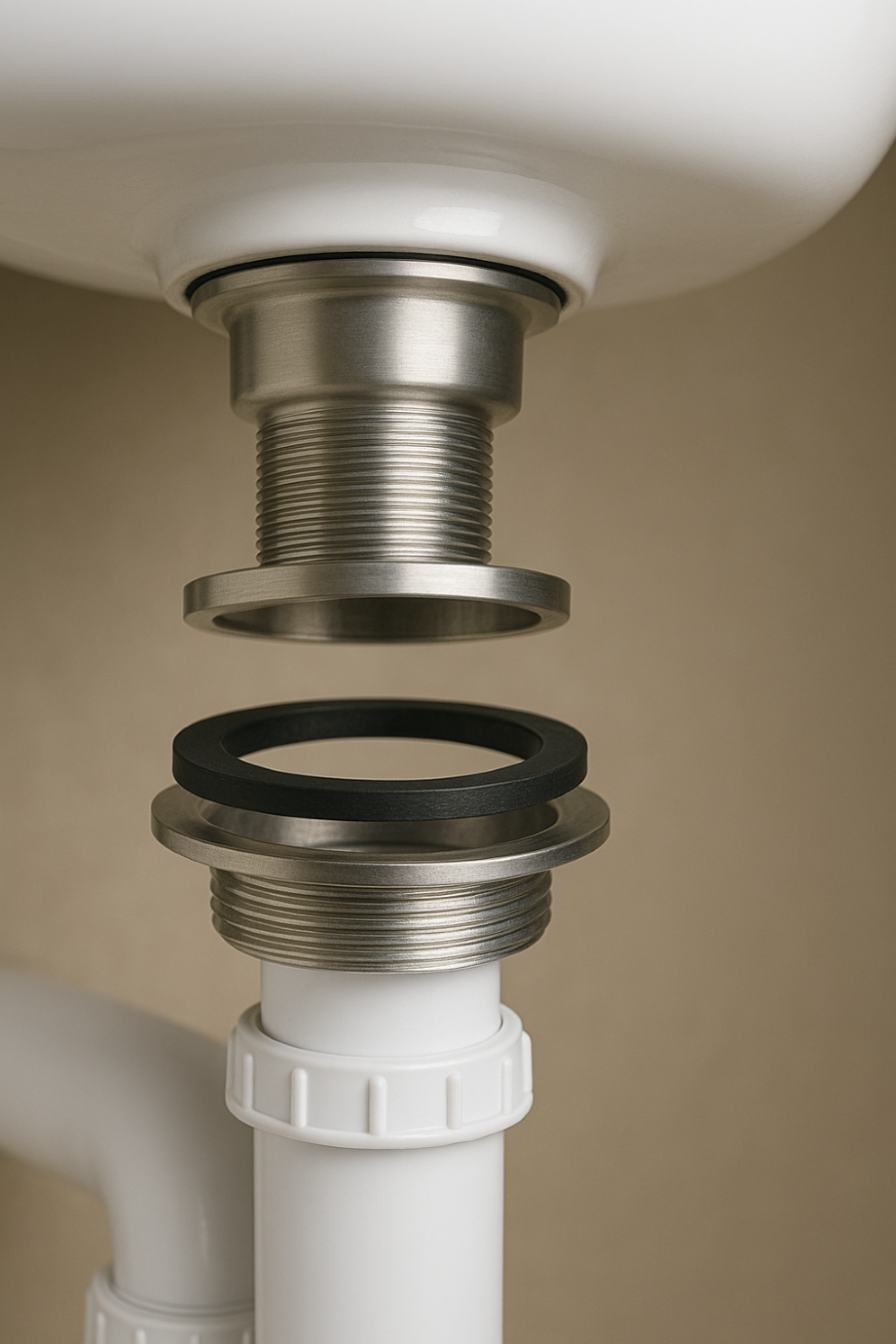

Domestic and Plumbing
- Taps: Rubber washers act as small gaskets to help prevent drips.
- Sinks and toilets: Sealing connections between ceramic, plastic and metal parts.
- Appliances: Helping washing machines and dishwashers contain water.
Benefits of Using Gaskets
The right gasket can improve system reliability, cleanliness and service life.
Leak Prevention
Helps prevent fluids or gases escaping between joined surfaces.
Pressure Maintenance
Supports pressure retention in pipelines, engines and process equipment.
Vibration Dampening
Can help absorb vibration and reduce wear between connected components.
Contaminant Protection
Helps block dust, dirt and other contaminants from entering sensitive systems.
How to Choose the Correct Gasket
Review these operating conditions before requesting a gasket.
| Selection Factor | What to Check | Why It Matters |
|---|---|---|
| Dimensions | Outside diameter, inside diameter, thickness and hole pattern | The gasket must align correctly with the mating surfaces. |
| Media | Fluid, gas, oil, chemical or water being sealed | Material compatibility is essential for reliable service. |
| Temperature | Minimum and maximum operating temperature | The material must retain its sealing properties in service. |
| Pressure | Normal and peak system pressure | Pressure affects material and construction requirements. |
| Surface Condition | Flatness, finish and any irregularities | The gasket must accommodate the actual mating surfaces. |
| Movement and Vibration | Thermal movement, vibration and repeated cycling | Dynamic conditions may require a more flexible sealing material. |
Custom Gaskets Manufactured to Your Dimensions
Our gaskets are custom made to order. Provide the required measurements, specification or drawing and our team can review the application.
For the best result, include the application, operating temperature, pressure, sealing media and required dimensions in your enquiry.
Explore Related Products
Protect flanges, pipes and exposed holes during storage and transport.
Full Face Flange Protectors
Designed to protect valuable flange faces from damage during handling, storage and transport.
Explore the Range

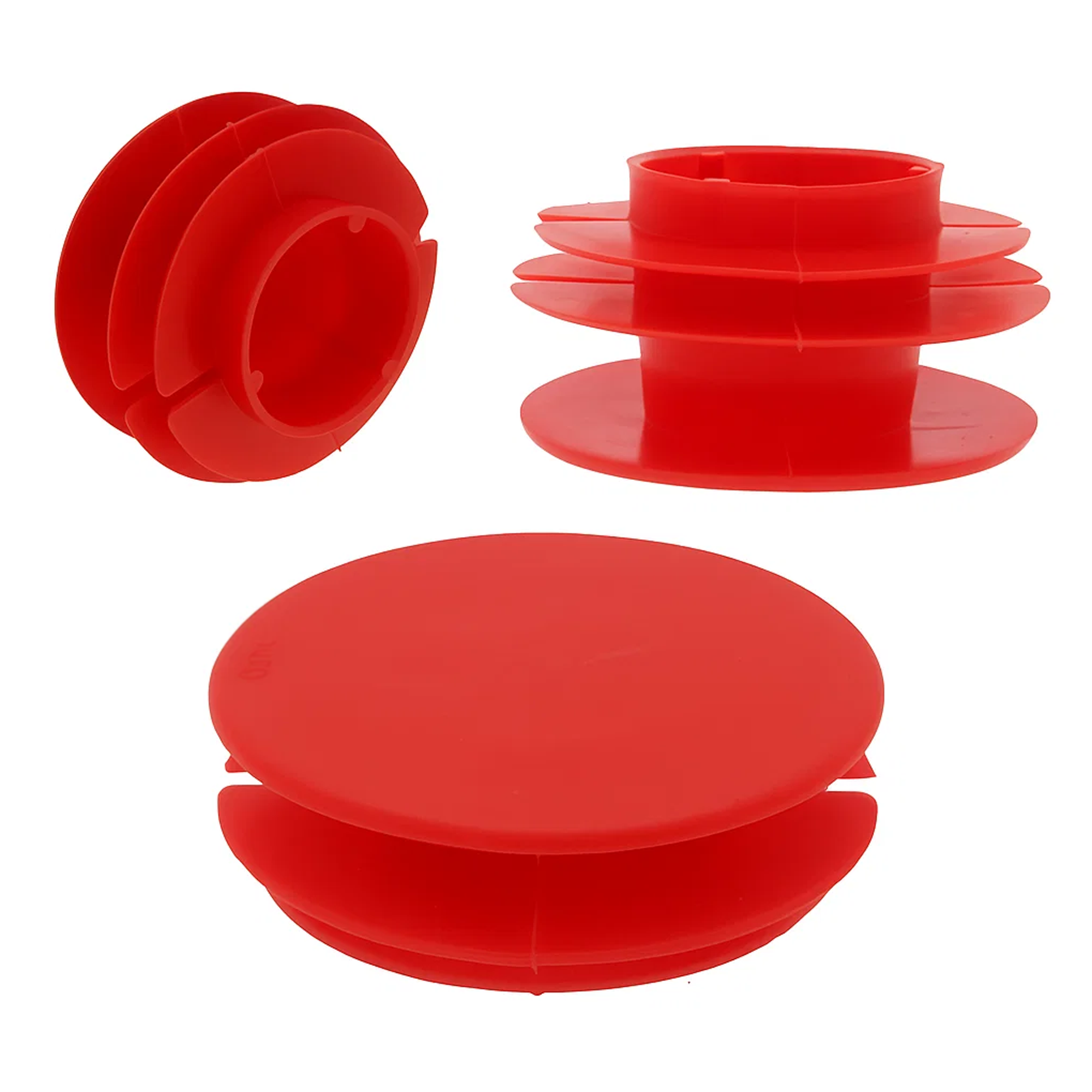

Ribbed Pipe End Plugs
Used to close and protect pipe ends against ingress during storage, transport and manufacturing.
Explore the Range

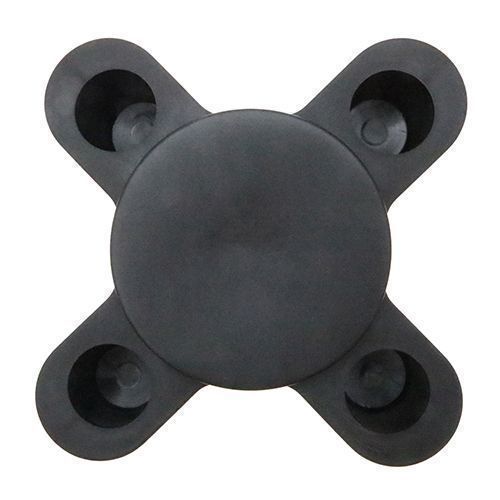

Flange Stud Hole Inserts
Clip into flange stud holes to help protect the bore and surrounding face during storage and transport.
Explore the RangeFrequently Asked Questions About Gaskets
Common questions about custom manufacture, sizing and gasket selection.
Need Help With a Custom Gasket?
Send us your required dimensions, drawing and operating conditions and our sales team can help review the most suitable gasket solution.
