Locking Washers UK Guide
Lock Washers (Spring, Curved & Serrated)
Our stainless steel lockable washers provide a reliable locking solution for fasteners used across mechanical, automotive, engineering and construction applications throughout the UK. Designed to resist loosening caused by vibration, dynamic loading or thermal expansion, they are available in spring, curved and serrated styles to suit a wide range of fastening requirements. Our locking washers are grouped within a larger range of shakeproof washers, find out more about the extended range here.
What are lockable washers?

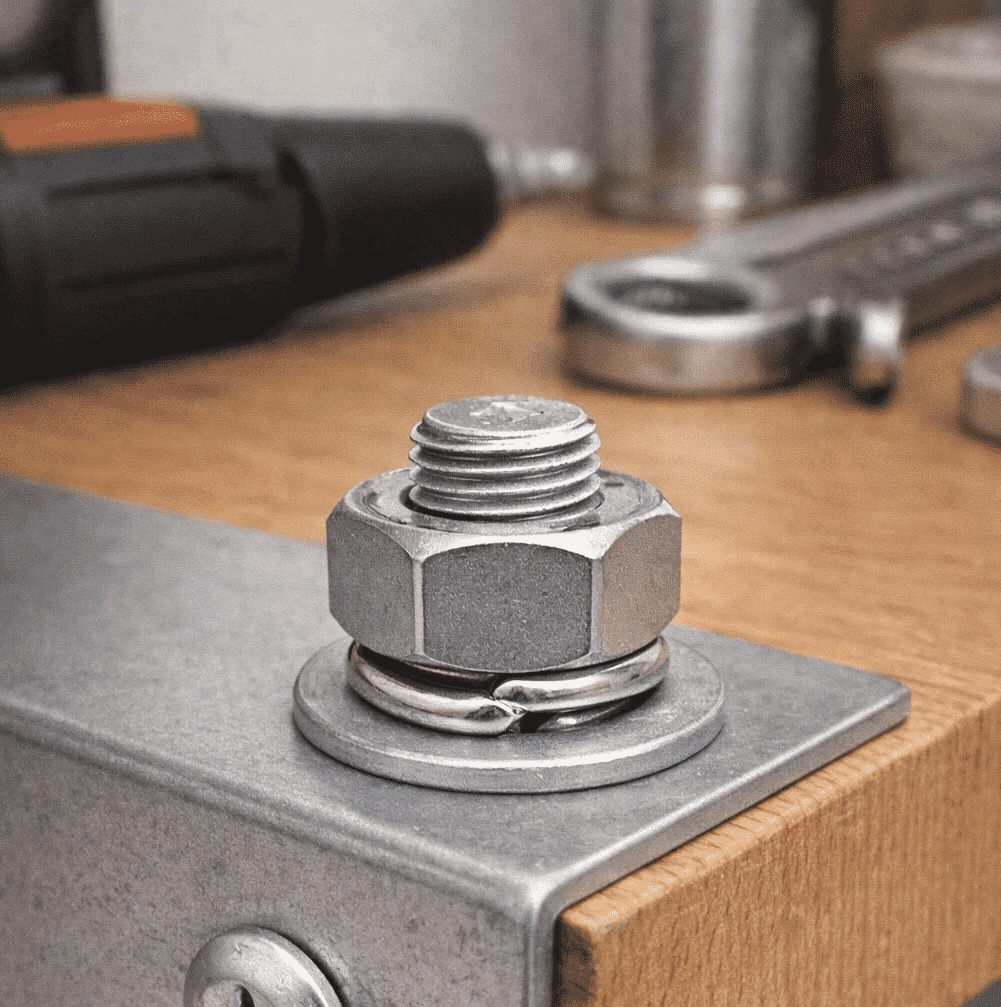

Lockable washers work by creating tension or increased surface friction once a fastener is tightened. Spring and curved washers apply a constant axial force that helps maintain clamp load over time, while serrated washers use internal or external teeth to bite into the mating surface and resist rotation. Together these designs offer flexible and effective solutions wherever a secure and lasting fixing is required.
Also known as
Types of Lockable Washers
Spring Washers
The Spring shape creates spring tension to maintain fastening security.
Internal Tooth Washers
Designed with teeth on the inner edge to bite into the fastener and improve locking performance.
External Tooth Washers
Feature teeth on the outer edge for extra surface grip and improved resistance to loosening.
Spring Lock Washers
Provide spring tension in fastening assemblies where a more secure locking action is required.
Key Features and Benefits
Anti loosening design
Help prevent loosening under movement.
Corrosion resistant
High grade stainless steel suitable for outdoor and harsh environments.
Vibration resistance
Ideal for machinery engines and dynamic load applications.
Wide size range
Available in multiple metric sizes and thicknesses.

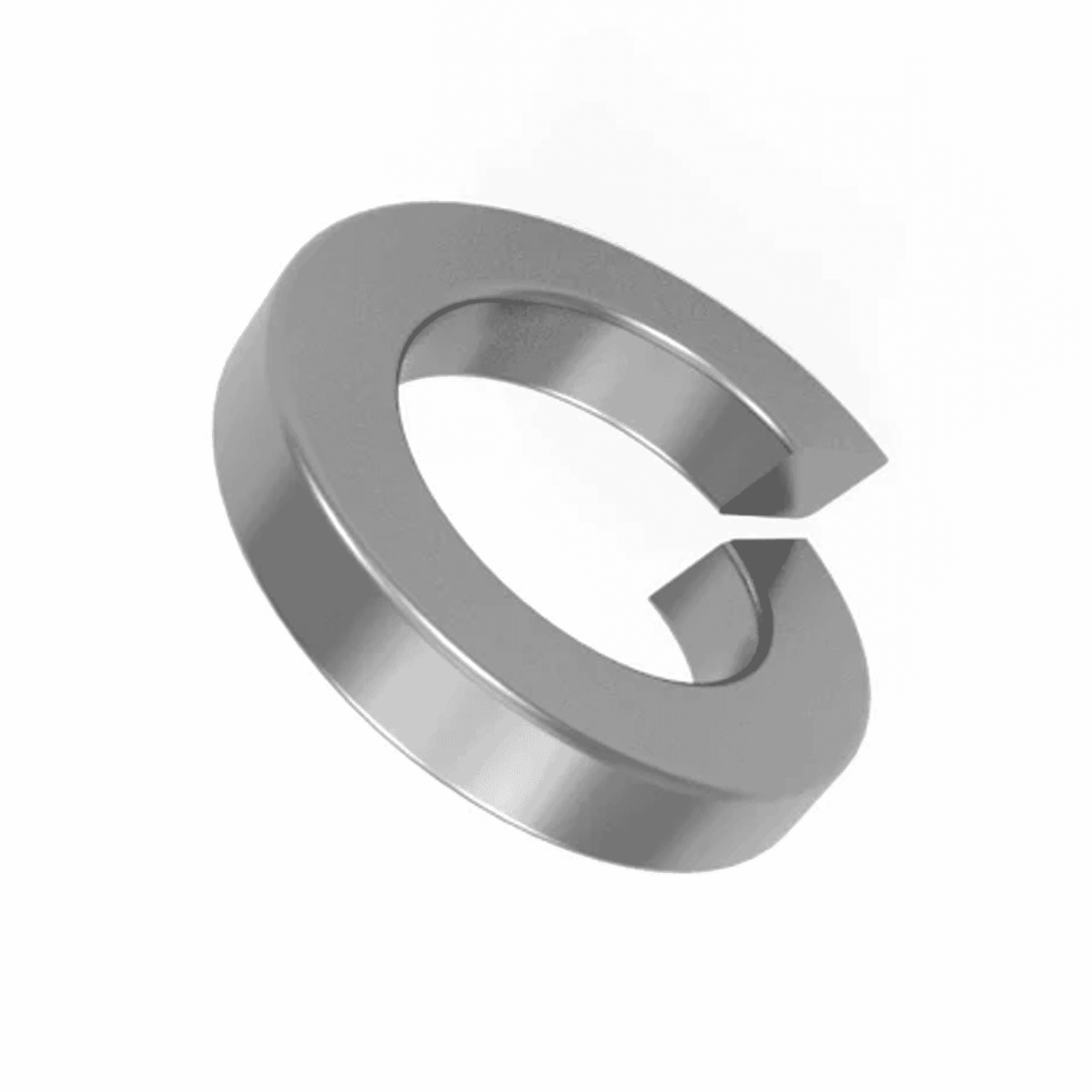

Square Section Spring Washers (DIN 7980)
Manufactured to DIN 7980, these washers provide excellent resistance and strength across medium to heavy loads. Designed to compress during fastening, they counteract loosening under load and vibration.

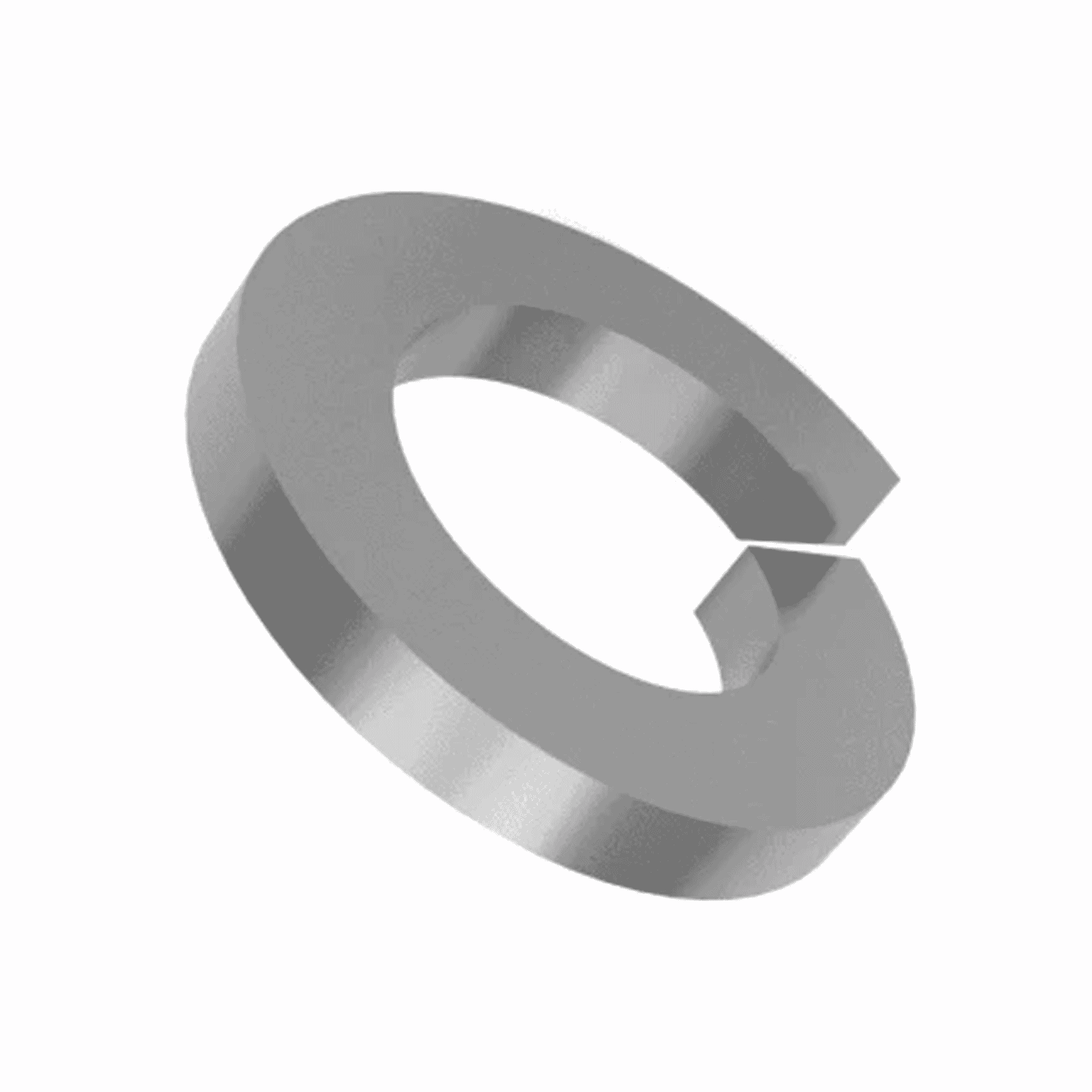

Rectangular Section Spring Washers (DIN 127B)
Rectangular section spring washers offer a wider bearing surface compared to square section variants, providing increased load distribution and improved resistance to loosening in heavier duty fastening applications.
Material Options
Where are lockable washers used?
There are several lock washer types available depending on application requirements. The most common spring washer provides general vibration resistance, while other locking washers may feature internal or external teeth for additional surface bite. Selecting the correct locking washer type depends on load conditions, material compatibility and required holding strength.
Common UK Applications
Relevant Standards
Need help choosing the right washer?
For help selecting the correct size thickness or washer type for your application contact our expert team.
Lock Washer FAQs
