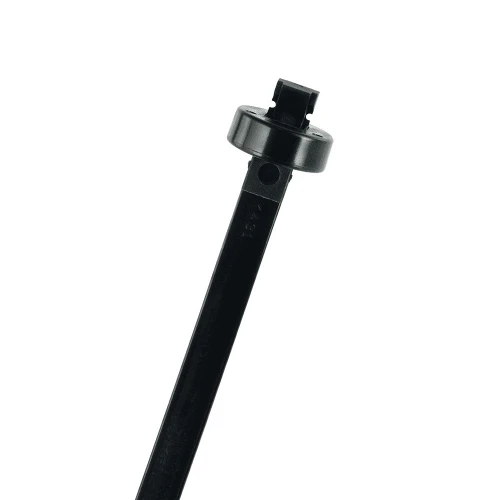

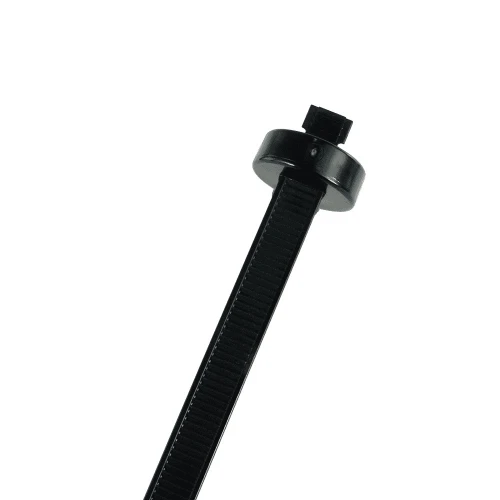

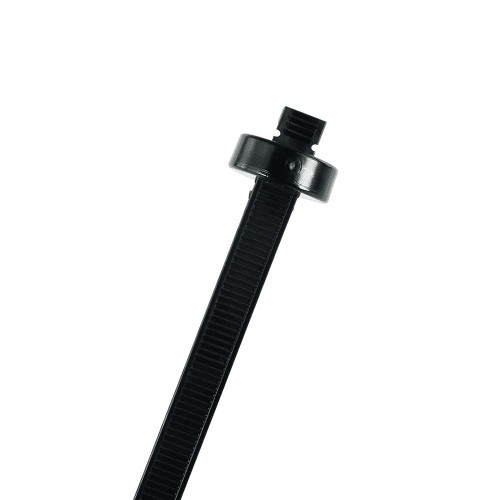

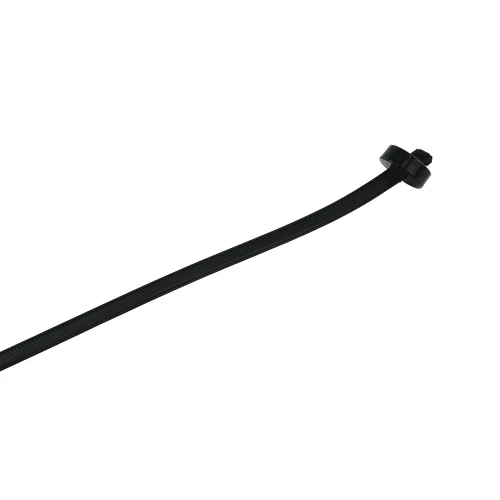

Button Head Cable Tie - CTBH7.6-370B (Pack of 100)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 2 - 99 | £35.83 | £43.00 |
| 100 - 999 | £32.24 | £38.69 |
| 1000 + | £29.02 | £34.82 |

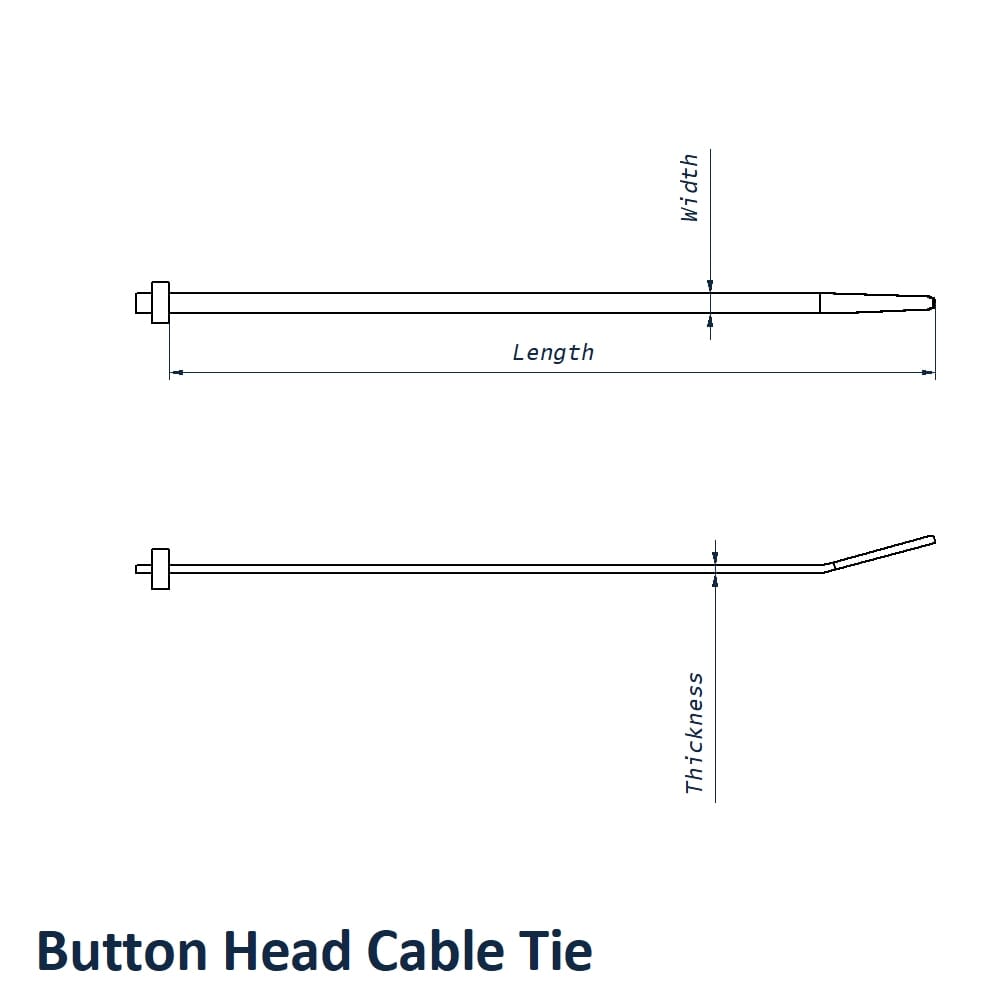

Product Specification
| Width | 7.6mm |
| Length | 370mm |
| Thickness | 1.0mm |
| Colour | Black |
| Max Bundle Diameter | 101mm |
| Minimum Tensile Strength | 55kg |
Frequently Bought Together
Total Price: £0.00
Button Head Cable Ties (Pack of 100) | Vital Parts – CTBH7.6-370B
Our Button Head Cable Ties provide a specialist solution for guiding and fastening cables through chassis holes or panel openings. Commonly used in automotive and structural applications, they improve both cable organisation and accessibility by securing the tie head above or below a hole, while the tail loops around and locks into the button head.
What are Button Head Cable Ties?
Also referred to as Automotive Cable Ties or Chassis Cable Ties, these unique fasteners feature a rounded head with a locking mechanism that allows the tail to be looped back into the head after being threaded through a mounting hole. This makes them particularly effective in securing cables along vehicle chassis frames or through structural panels where standard cable ties may not reach or align properly.
Check out our Full range of Cable Ties right here!
Key Features:
- Button-style head allows mounting through holes for neater, more efficient routing
- 7.6mm wide and 370mm long, ideal for heavy-duty use
- Minimum tensile strength of 55kgs ensures strong and durable fastening
- Manufactured from black UV-resistant Nylon 66
- Temperature resistance between -40°C to +85°C
- Halogen and silicone free for sensitive or regulated environments
- UL 94 V-2 flammability rating
Key Applications and Industries
- Automotive: Routing cables along chassis, under dashboards or through vehicle bodies
- Electrical installations in confined or angled panel spaces
- Construction and infrastructure cabling where ties must mount to surface holes
- General cable management where easy visual access is essential
Technical Specifications
- Material: UV-resistant Nylon 66
- Colour: Black
- Length: 370mm
- Width: 7.6mm
- Max Bundle Diameter: 101mm
- Temperature Range: -40°C to +85°C
- Minimum Tensile Strength: 55kgs
- Flammability Rating: UL 94 V-2
- Halogen and Silicone Free
