M5 x 16mm Cap Head Captive Screw (H4) (~DIN 912) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £3.27 | £3.93 |
| 50 - 99 | £2.91 | £3.49 |
| 100 - 249 | £2.62 | £3.14 |
| 250 - 499 | £2.38 | £2.86 |
| 500 - 999 | £2.18 | £2.62 |
| 1000 + | £1.88 | £2.25 |
£3.93 / each
.png)
Product Specification
| Thread Size | M5 |
| Pitch | 0.80mm |
| Length | 16mm |
| Captive Diameter | 3.8mm |
| Threaded Length | 10.0mm |
| Drive | H4 |
| Head Diameter | 8.5mm |
| Head Height | 5.0mm |
| Material | A2 Stainless Steel |
| Standard | Similar to DIN 912 |
Frequently Bought Together
Total Price: £0.00

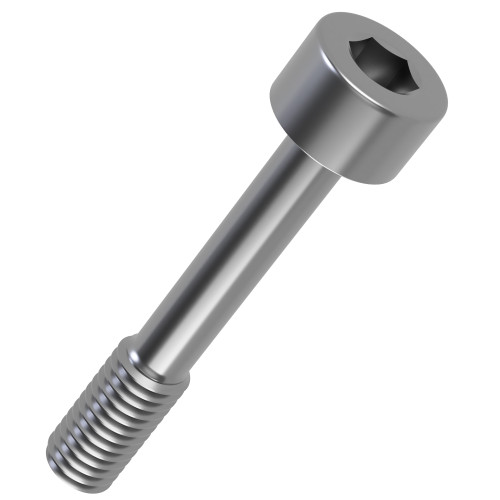

M5 x 16mm Captive Socket Cap Head Screw | Similar to DIN 912 | A2 Stainless Steel
This M5 x 16mm captive hex socket screw is designed for transport equipment, inspection panels and removable covers where the fixing needs to remain attached after it has been loosened. The 10.0mm threaded length provides the fastening section while the reduced 3.8mm captive diameter is intended to work with a compatible panel, washer, sleeve or retaining feature. A2 Stainless Steel provides good corrosion resistance for general engineering, machinery, equipment and indoor or suitably protected external applications.
What Are Captive Socket Cap Head Screws?
Captive Socket Cap Head Screws are specialist fasteners designed to stay attached to a panel, cover or component after the threaded portion has been loosened. A reduced captive section works with a compatible panel, washer, sleeve or retaining feature so the screw can remain retained instead of falling free.
Common Applications
- Jigs and Fixtures: Keeps adjustment or access fasteners associated with suitable workshop fixtures and production tooling.
- Laboratory Equipment: Supports retained panel fixing on instruments and serviceable technical equipment.
- Fabricated Housings: Provides a captive fastening format for custom covers, guards and equipment enclosures.
- General Engineering: Useful where a screw needs to remain attached to the assembly after disengaging from its mating thread.

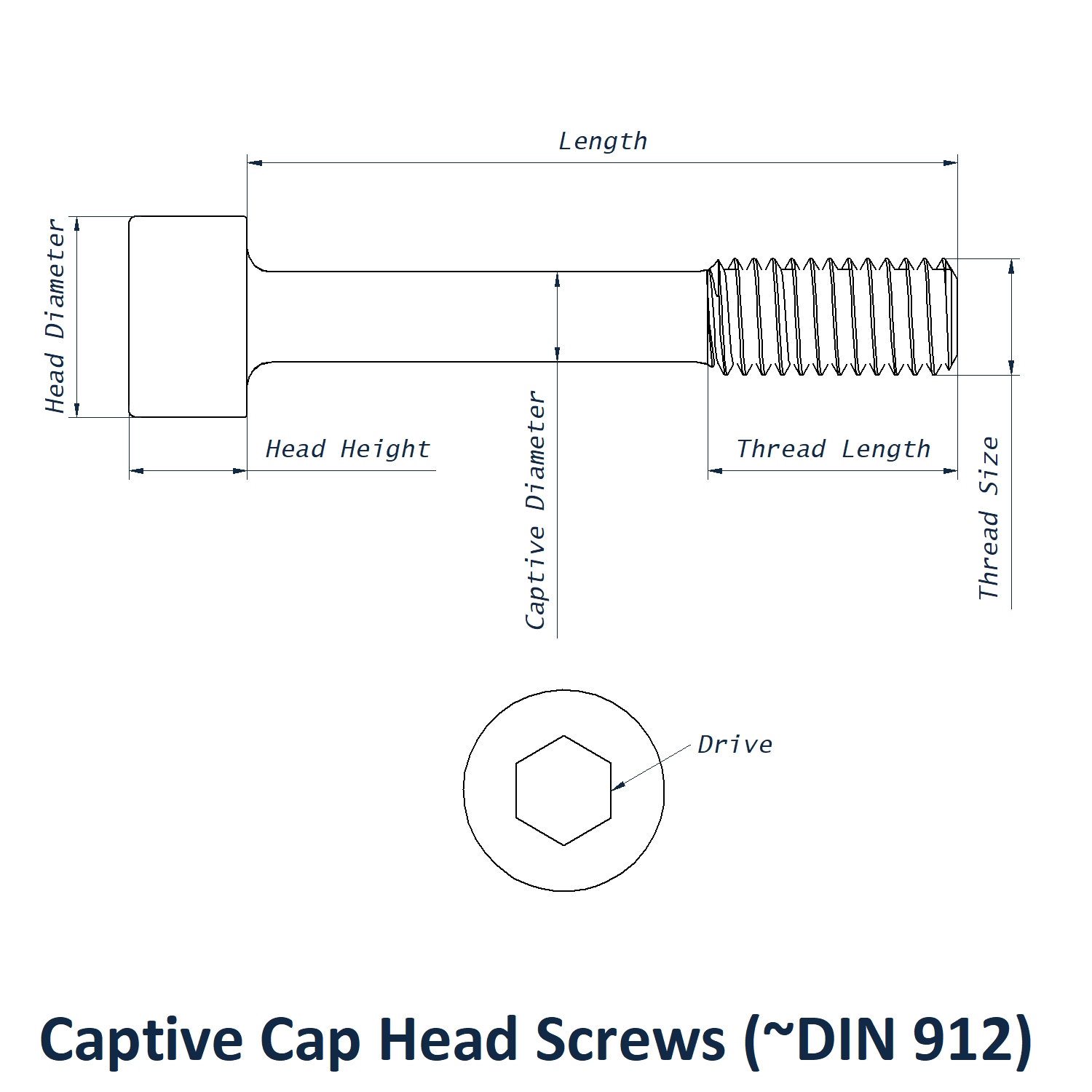

M5 x 16mm Captive Socket Cap Head Screw Dimensions
- Thread Size: M5
- Length: 16mm
- Threaded Length: 10.0mm
- Captive Diameter: 3.8mm
- Head Diameter: 8.5mm
- Head Height: 5.0mm
- Drive: H4
- Pitch: 0.80mm
- Standard: Similar to DIN 912
- Material: A2 Stainless Steel
Key Benefits
- 0.80mm metric pitch matches the stated thread specification.
- A2 Stainless Steel construction provides the specified stainless steel grade and corrosion resistance.
- 10.0mm threaded length provides the portion that engages the mating internal thread.
- 8.5mm head diameter gives the stated DIN 912-style cap head width.
Compare more sizes in our Captive Socket Cap Head Screws range. You can compare more retained fastening styles in our Captive Screws collection, including countersunk captive screws for flush-fitting panel applications. If you are unsure which length or captive diameter suits your panel, contact our team on 01233 713581.
