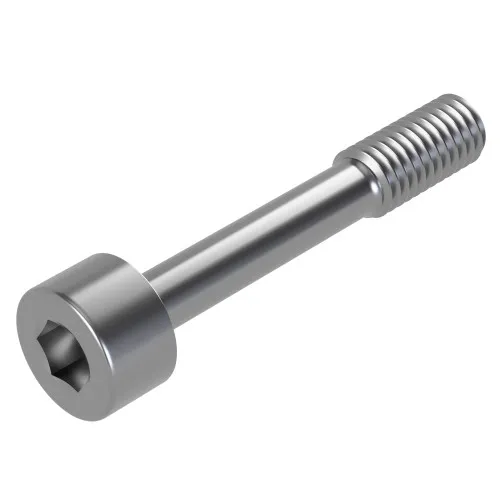

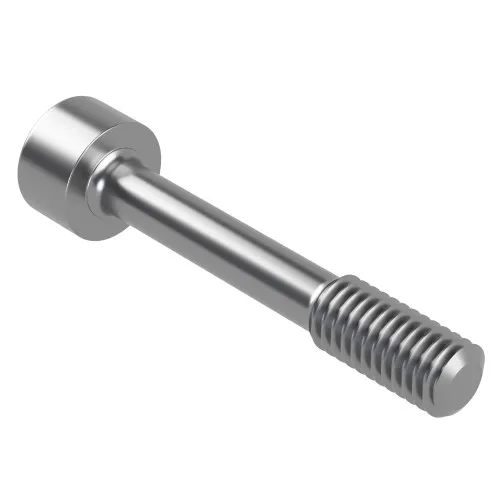

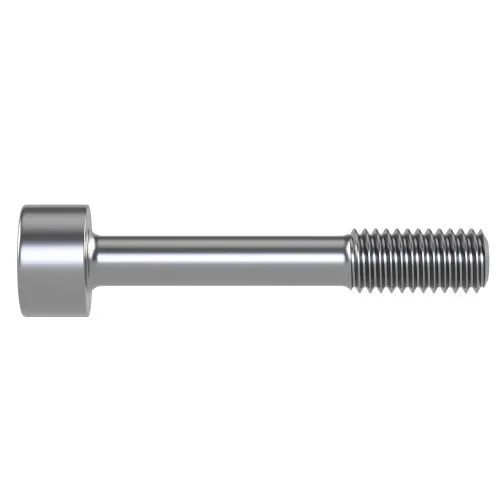

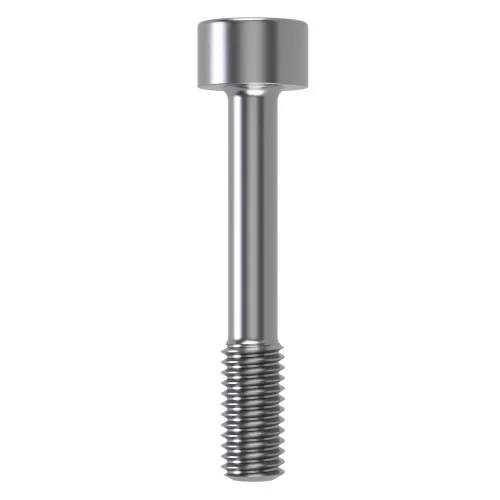

M8 x 20mm Captive Socket Cap Head Screw (~DIN 912) | A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £3.50 | £4.20 |
| 50 - 99 | £3.11 | £3.73 |
| 100 - 249 | £2.80 | £3.36 |
| 250 - 499 | £2.54 | £3.05 |
| 500 - 999 | £2.33 | £2.80 |
| 1000 + | £2.00 | £2.40 |
£4.20 / each
.png)
Product Specification
| Thread Size | M8 |
| Pitch | 1.25mm |
| Length | 20mm |
| Captive Diameter | 6.2mm |
| Threaded Length | 8.0mm |
| Drive | H6 |
| Head Diameter | 13.0mm |
| Head Height | 8.0mm |
| Material | A4 Stainless Steel |
| Standard | Similar to DIN 912 |
Frequently Bought Together
Total Price: £0.00
M8 x 20mm Captive Socket Cap Head Screw | Similar to DIN 912 | A4 Stainless Steel
Providing a retained fixing for general engineering applications requiring retained fasteners, this M8 x 20mm socket captive screw combines a hex socket cap head with a purpose-designed captive diameter. The format helps keep the screw with the assembly during inspection, adjustment or maintenance when used with a compatible retention method. A4 Stainless Steel provides enhanced corrosion resistance for suitable outdoor, washdown, coastal and marine applications where a higher level of environmental resistance is required.
What Are Captive Socket Cap Head Screws?
Socket Head Captive Screws provide positive hex-key drive engagement together with a retained fastening format. They are commonly specified for machinery, enclosures and serviceable equipment where panels need to be removed or opened regularly without losing the fasteners.
Common Applications
- Machinery Guards: Keeps compatible screws attached to removable guards during inspection, adjustment and maintenance.
- Control Cabinets: Retains panel fixings on electrical and automation enclosures that require repeated access.
- Equipment Covers: Supports serviceable covers where loose screws could be dropped inside machinery or misplaced.
- Maintenance Panels: Helps keep fastening hardware associated with access panels during routine servicing.
M8 x 20mm Captive Socket Cap Head Screw Dimensions
- Thread Size: M8
- Length: 20mm
- Threaded Length: 8.0mm
- Captive Diameter: 6.2mm
- Head Diameter: 13.0mm
- Head Height: 8.0mm
- Drive: H6
- Pitch: 1.25mm
- Standard: Similar to DIN 912
- Material: A4 Stainless Steel
Key Benefits
- 13.0mm head diameter gives the stated DIN 912-style cap head width.
- H6 hex socket drive provides positive engagement with a matching driver or key.
- A4 Stainless Steel construction provides the specified stainless steel grade and corrosion resistance.
- M8 thread size with 20mm overall length provides the primary screw dimensions.
Compare more sizes in our Captive Socket Cap Head Screws range. If a cap head is not the right profile, see our full Captive Screws range where we also stock countersunk captive screw options. If you are unsure which length or captive diameter suits your panel, contact our team on 01233 713581.
