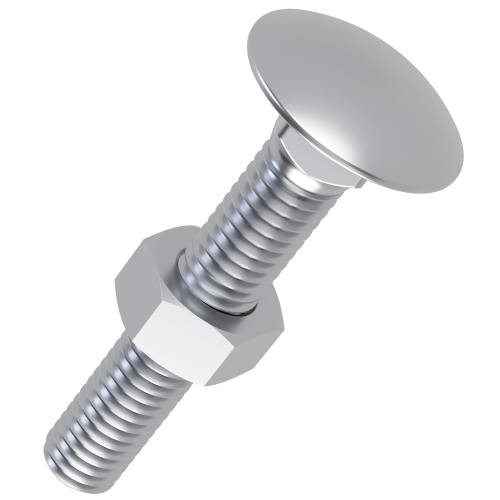

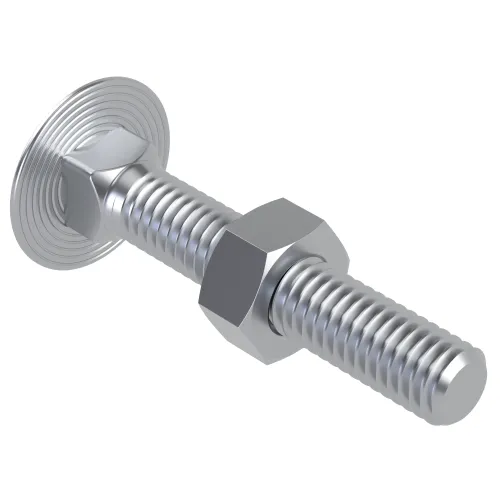

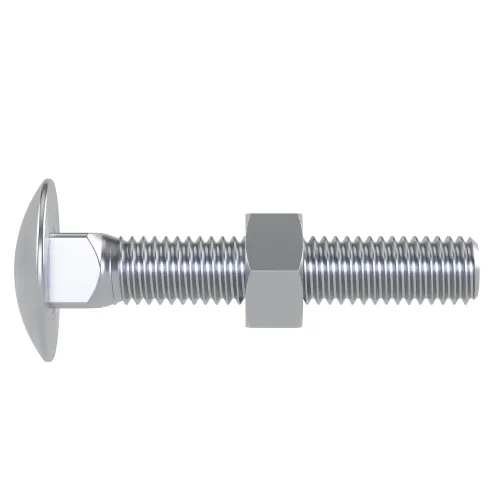

M6 x 60mm Coach Bolt & Nut (DIN 603) - Full Thread | CE Certified 4.8 Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.15 | £0.18 |
| 100 - 999 | £0.13 | £0.16 |
| 1000 - 9999 | £0.12 | £0.14 |
| 10000 + | £0.09 | £0.11 |
£0.18 / each
Product Specification
| Thread Size | M6 |
| Length | 60mm |
| Thread Length | Fully Threaded |
| Pitch | 1.00mm |
| Material | 4.8 Steel BZP |
| Head Diameter | 16.55mm |
| Head Height | 3.88mm |
| Square Width | 6mm |
| Standard | DIN 603 |
Frequently Bought Together
Total Price: £0.00
M6 x 60mm Coach Bolt & Nut (DIN 603) | Fully Threaded | CE Certified 4.8 Steel BZP
For compact or exposed assemblies in maintenance engineering, including repair plates, guards and replacement timber members, this M6 x 60mm Coach Bolt & Nut delivers a neat finish and reliable mechanical grip. The BZP steel body is suited to dry internal installations and protected construction work.
The square neck allows the bolt to grip timber fibres or a matching square aperture before final tightening. This makes the M6 x 60mm size useful for assemblies where only one side is easy to access during installation. The DIN 603 bolt is supplied with a matching DIN 555 nut for a complete metric fixing set. The CE certified specification supports consistent use in regulated supply chains and trade counters. It is a practical option for slim boards, rails and brackets that still need a positive mechanical fastener.
Common Applications
- Securing timber rails, boards and light section supports using an M6 metric coach bolt.
- Maintenance engineering where the round head needs to remain neat and low snag.
- Repairing existing coach bolt installations with a supplied DIN 555 nut for a complete fixing set.
- Building general assembly where a balanced grip length is needed on 60mm coach bolt installations.

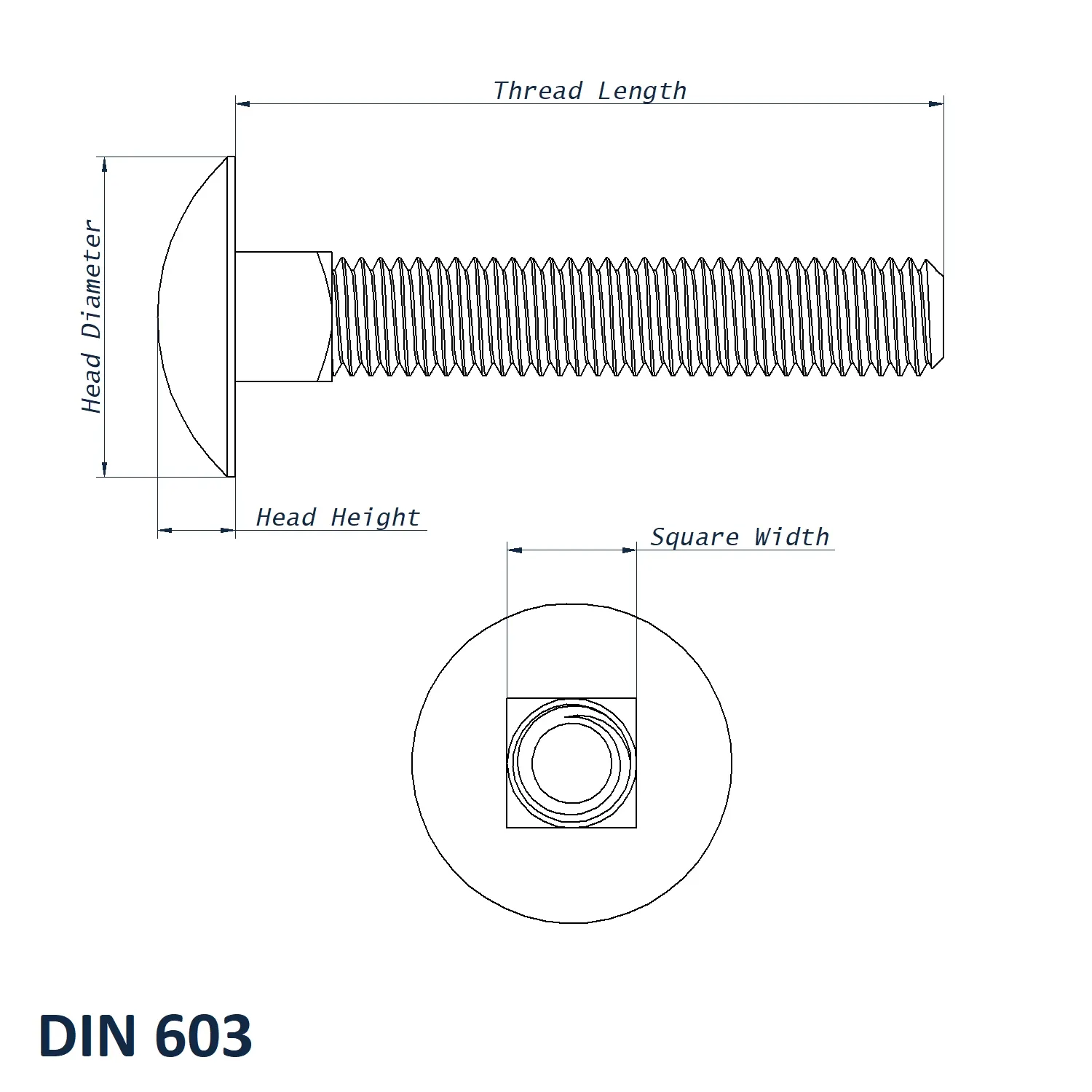

M6 x 60mm Coach Bolt & Nut Dimensions
- Thread Size: M6
- Length: 60mm
- Threaded Length: Fully Threaded
- Pitch: 1.00mm
- Head Diameter: 16.55mm
- Head Height: 3.88mm
- Square Width: 6mm
- Standard: DIN 603
- Material: 4.8 Steel BZP
- Colour: BZP
View our full range of Hex Head Screws and Bolts.
