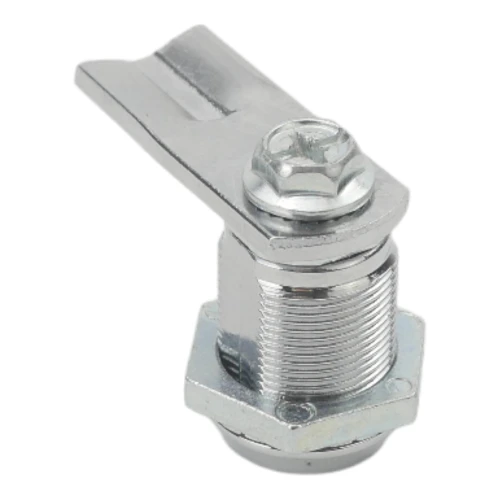

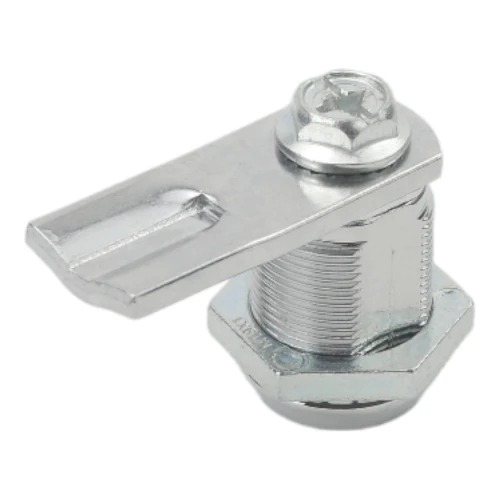

20mm Cam Depth Standard Key Camlock
Product code:
LOCK020
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £6.15 | £7.38 |
| 10 - 24 | £6.15 | £7.38 |
| 25 - 49 | £4.92 | £5.91 |
| 50 - 99 | £4.67 | £5.61 |
| 100 + | £4.18 | £5.02 |
£7.38
/ each
Quantity:

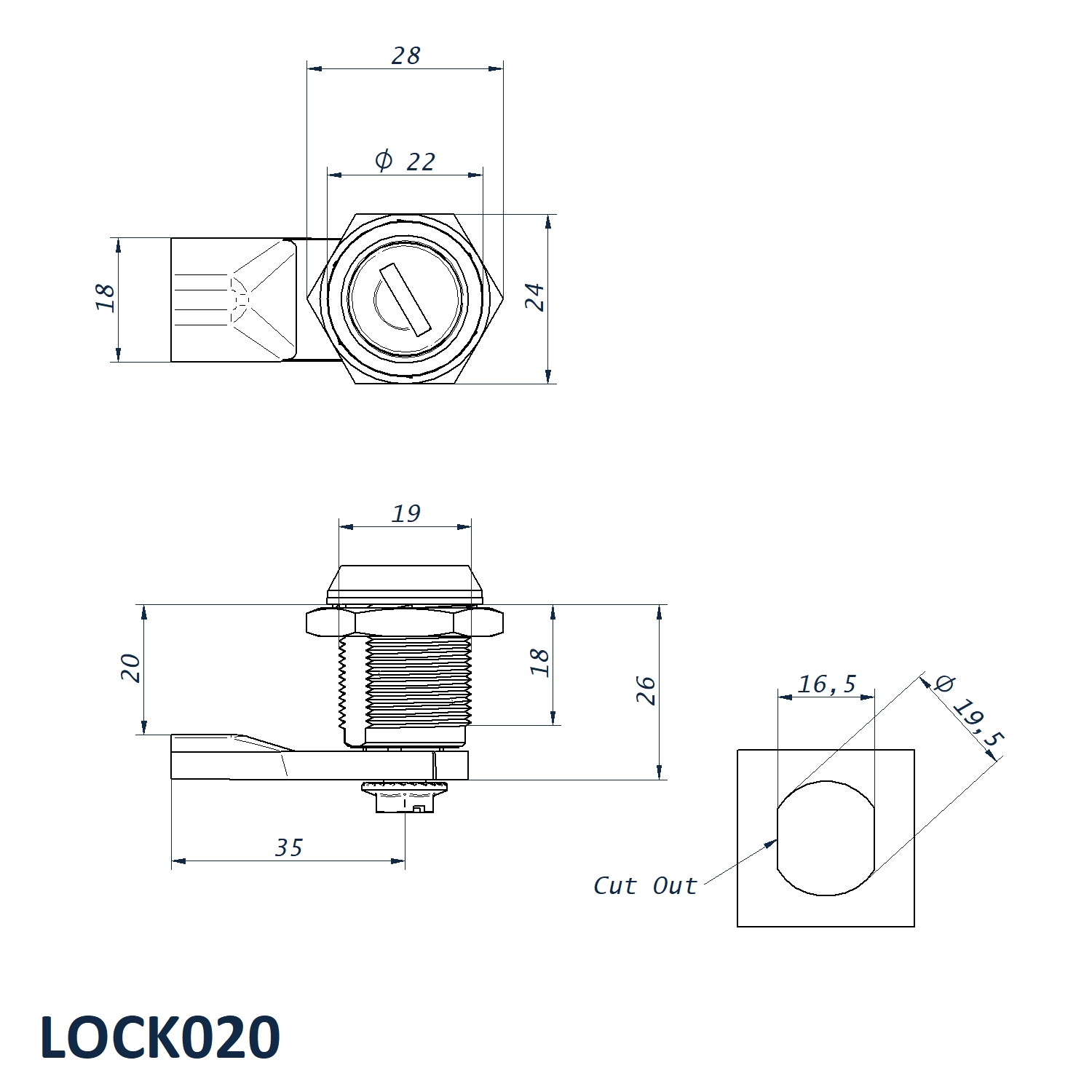

Product Specification
| Head Diameter | 22.0mm |
| Material | Chrome Plated Die Cast Zinc |
| Key Type | Standard Key (Included) |
| Cam Depth | 20.0mm |
| Cam Length | 35mm |
| Hole Size | 19.5mm |
| Across Flats | 24mm |
| Thread Length | 18.0mm |
| Thread Size | 19mm |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
This Standard Key Camlock has a Hole Size of 19.5mm, a Thread Length of 18mm and a Thread Size of 19mm. It is ideal for applications such as cabinets, drawers and secure enclosures. This Standard Key Camlock is made from Chrome Plated Die Cast Zinc and has an IP Rating of IP45; protecting it from dust and water. Chrome Plated Die Cast Zinc is robust, durable and has a strength of 48,000 PSI. This Camlock has a Cam Length of 35mm and a Head Diameter of 22mm. It can be locked and unlocked with the use of a matching Standard Key. The Cam can be interchanged from left to right in order to allow for left or right handed use.
