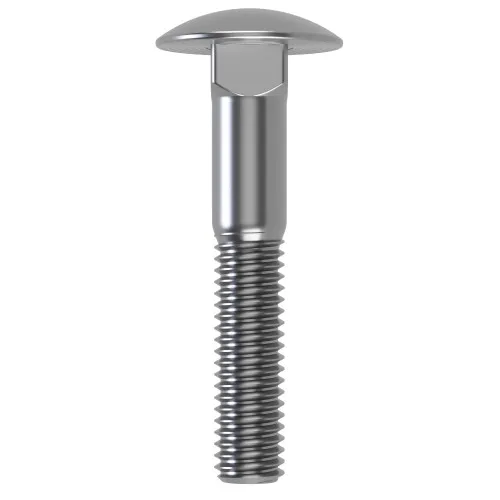

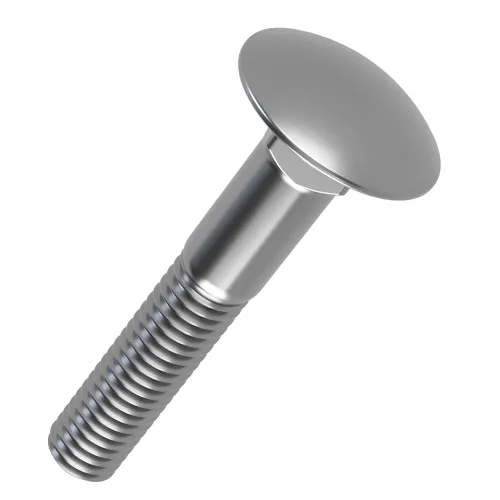

M8 x 200mm Coach Bolt & Nut (DIN 603) - Part Thread | CE Certified 4.8 Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.61 | £0.73 |
| 100 - 999 | £0.54 | £0.65 |
| 1000 - 9999 | £0.46 | £0.55 |
| 10000 + | £0.38 | £0.45 |
£0.73 / each
Product Specification
| Thread Size | M8 |
| Length | 200mm |
| Thread Length | 28mm |
| Pitch | 1.25mm |
| Material | 4.8 Steel BZP |
| Head Diameter | 20.65mm |
| Head Height | 4.88mm |
| Square Width | 8mm |
| Standard | DIN 603 |
Frequently Bought Together
Total Price: £0.00
M8 x 200mm Coach Bolt & Nut (DIN 603) | 28mm Thread Length | CE Certified 4.8 Steel BZP
These M8 x 200mm Coach Bolts and Nuts are suited to decking and garden structures, including deck frames, pergola supports and timber seating frames, especially where a tidy visible head is required on one side of the fixing. The 4.8 Steel BZP construction combines Grade 4.8 strength with a BZP finish for general indoor and sheltered use.
The square neck allows the bolt to grip timber fibres or a matching square aperture before final tightening. This makes the M8 x 200mm size useful for assemblies where only one side is easy to access during installation. A DIN 555 nut is included with the DIN 603 bolt, so the assembly is ready for through-bolted installation. The CE certified specification supports consistent use in regulated supply chains and trade counters. It is a practical option for slim boards, rails and brackets that still need a positive mechanical fastener.
Common Applications
- Assembling large timber members, multi-layer brackets and reinforced frames using an M8 metric coach bolt.
- Decking and garden structures where the round head needs to remain neat and low snag.
- Building timber-to-metal support assemblies with a supplied DIN 555 nut for a complete fixing set.
- Clamping long through-bolted joints that need more reach on 200mm coach bolt installations.
M8 x 200mm Coach Bolt & Nut Dimensions
- Thread Size: M8
- Length: 200mm
- Threaded Length: 28mm
- Pitch: 1.25mm
- Head Diameter: 20.65mm
- Head Height: 4.88mm
- Square Width: 8mm
- Standard: DIN 603
- Material: 4.8 Steel BZP
- Colour: BZP
View our full range of Hex Head Screws and Bolts.
