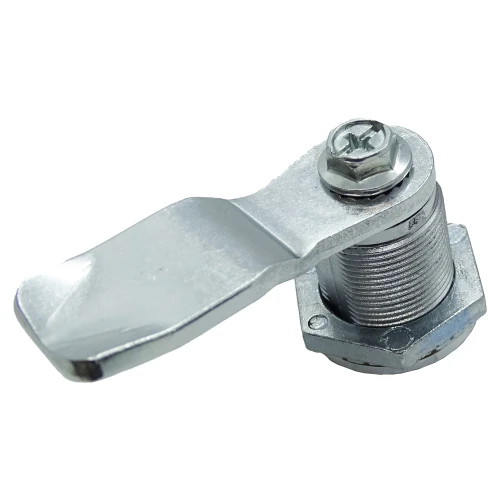

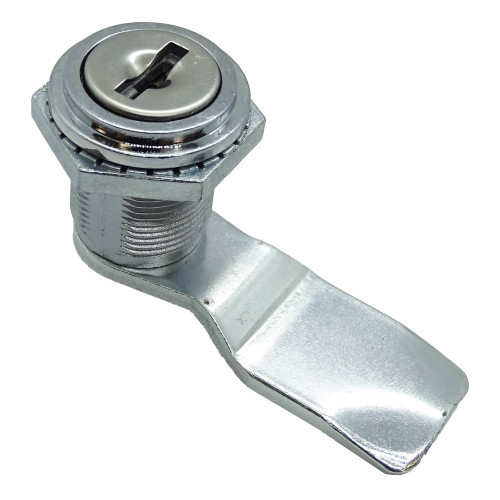

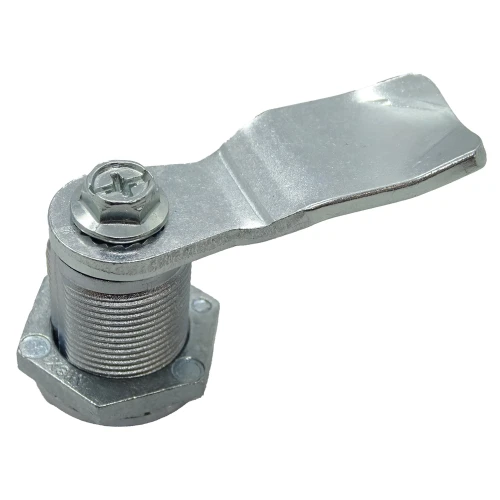

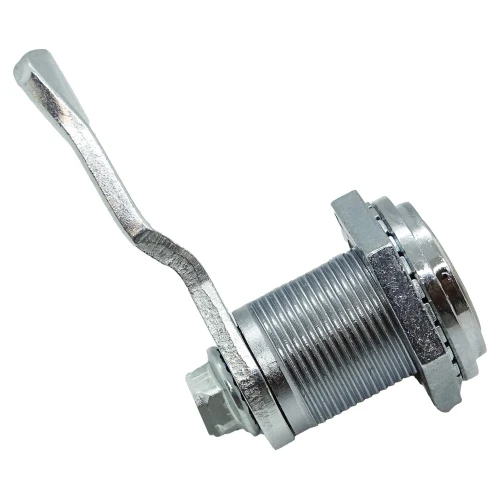

24mm Cam Depth Standard Key Camlock
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 24 | £3.46 | £4.15 |
| 25 - 49 | £3.25 | £3.90 |
| 50 - 99 | £2.93 | £3.52 |
| 100 + | £2.58 | £3.10 |
Product Stock

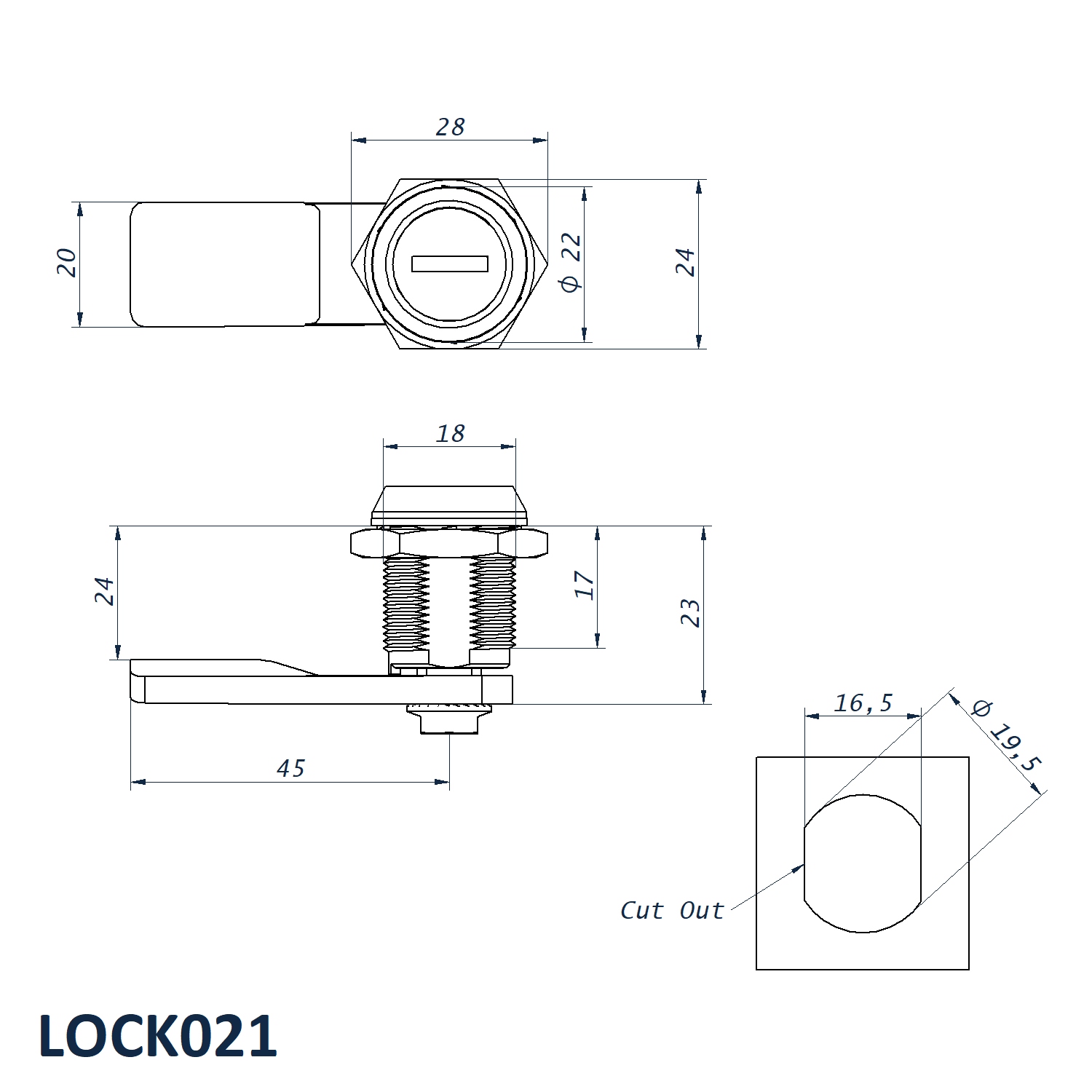

| Product Specifications | LOCK021 |
|---|---|
| Head Diameter | 24.0mm |
| Material | Chrome Plated Die Cast Zinc |
| Key Type | Standard Key (Included) |
| Cam Depth | 24.0mm |
| Cam Length | 45mm |
| Hole Size | 19.5mm |
| Across Flats | 24mm |
| Thread Length | 17mm |
| Thread Size | 18.0mm |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description
This Standard Key Camlock has a Hole Size of 19.5mm, a Thread Length of 17mm and a Thread Size of 18mm. It is ideal for applications such as cabinets, drawers and secure enclosures. This Standard Key Camlock is made from Chrome Plated Die Cast Zinc and has an IP Rating of IP45; protecting it from dust and water. Chrome Plated Die Cast Zinc is robust, durable and has a strength of 48,000 PSI. This Camlock has a Cam Length of 45mm and a Head Diameter of 24mm. It can be locked and unlocked with the use of a matching Standard Key. The Cam can be interchanged from left to right in order to allow for left or right handed use.
