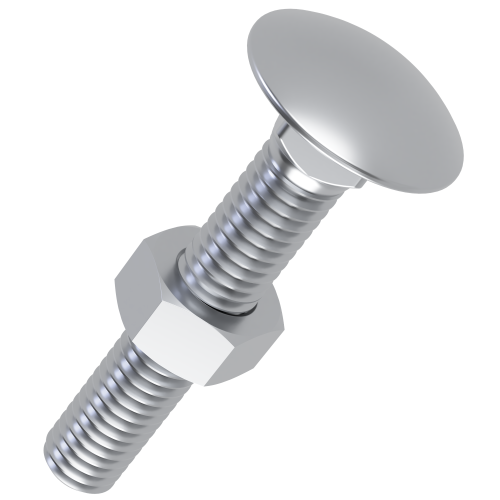

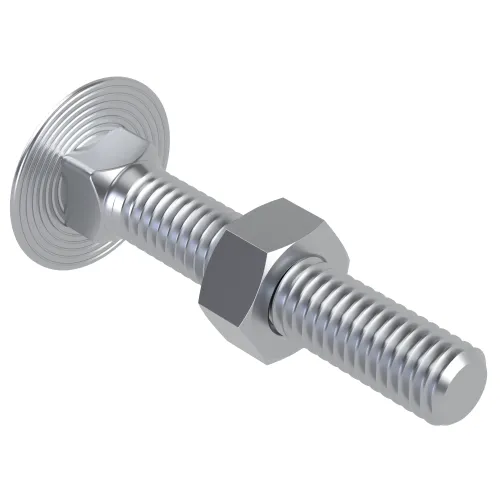

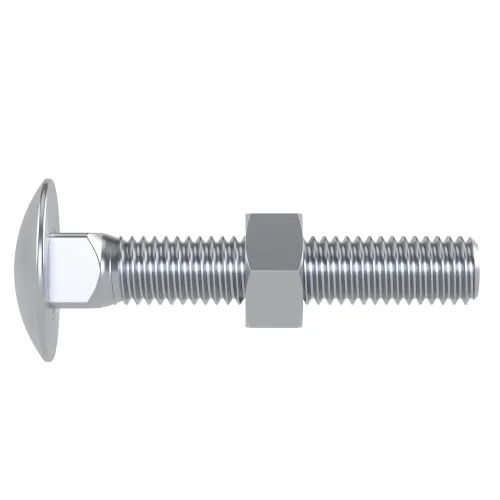

M10 x 100mm Coach Bolt & Nut (DIN 603) - Full Thread | CE Certified 4.8 Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.62 | £0.74 |
| 100 - 999 | £0.55 | £0.66 |
| 1000 - 9999 | £0.47 | £0.56 |
| 10000 + | £0.38 | £0.46 |
£0.74 / each
Product Specification
| Thread Size | M10 |
| Length | 100mm |
| Thread Length | Fully Threaded |
| Pitch | 1.50mm |
| Material | 4.8 Steel BZP |
| Head Diameter | 24.65mm |
| Head Height | 5.38mm |
| Square Width | 10mm |
| Standard | DIN 603 |
Frequently Bought Together
Total Price: £0.00
M10 x 100mm Coach Bolt & Nut (DIN 603) | Fully Threaded | CE Certified 4.8 Steel BZP
This M10 x 100mm round head square neck bolt and nut set is intended for signage and display equipment, including timber signs, support rails and freestanding boards. Manufactured as a DIN 603 coach bolt, it provides a recognised metric fixing with a clean head profile and CE certified specification.
With a 1.50mm pitch and 5.38mm head height, this size is easy to specify for repair work and repeat production. The BZP finish supports everyday corrosion resistance in dry environments while the coach bolt head gives a clean installed appearance. Each set includes the DIN 603 coach bolt and a DIN 555 nut, helping installers avoid separate nut matching. The CE certified specification supports consistent use in regulated supply chains and trade counters. It is often selected for medium duty timber framing, workshop builds and mixed-material supports.
Common Applications
- Fastening deeper timber sections, spacer blocks and braced frames using an M10 metric coach bolt.
- Signage and display equipment where the round head needs to remain neat and low snag.
- Fixing visible panels with a smooth domed head with a supplied DIN 555 nut for a complete fixing set.
- Maintaining through-fixing where extra reach is required on 100mm coach bolt installations.

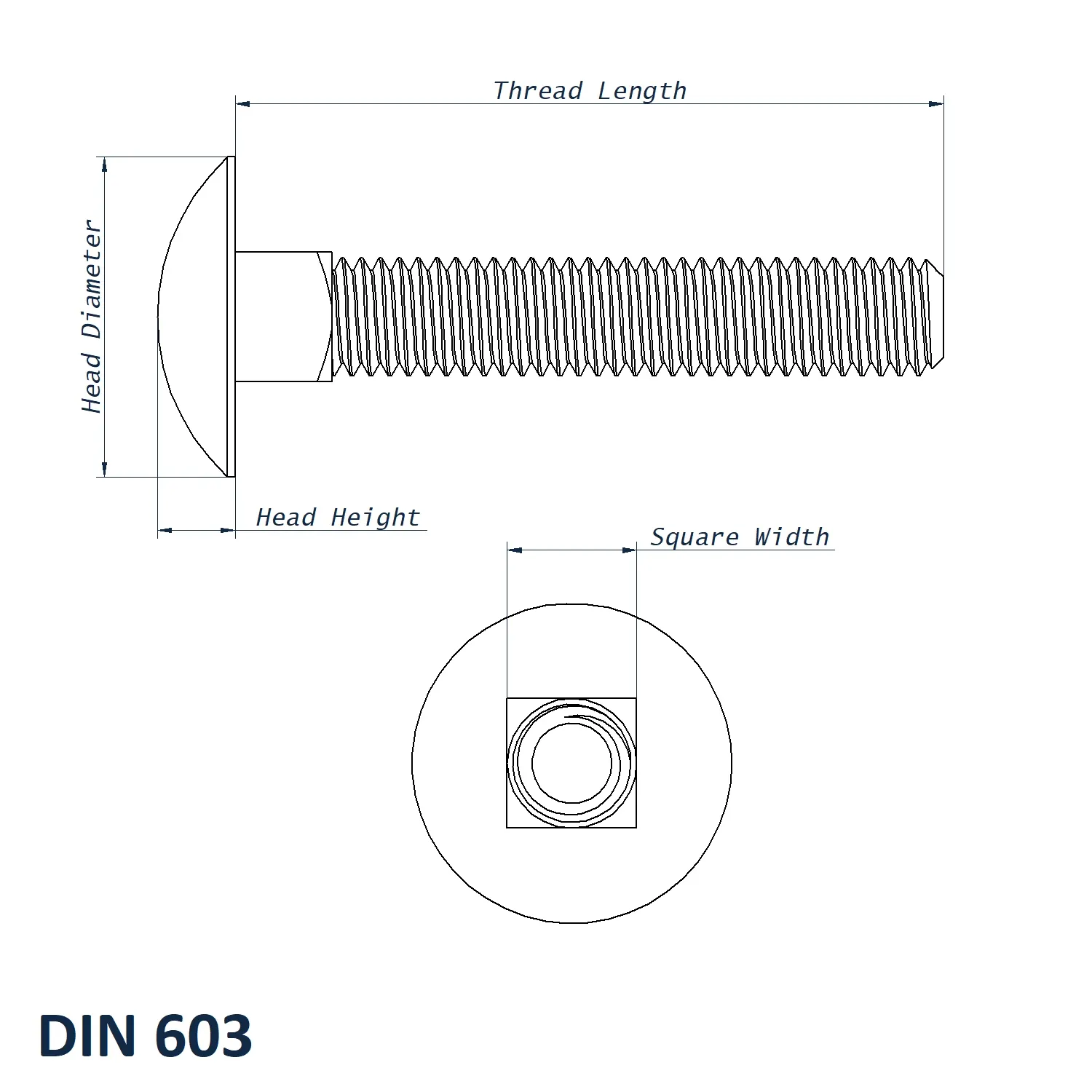

M10 x 100mm Coach Bolt & Nut Dimensions
- Thread Size: M10
- Length: 100mm
- Threaded Length: Fully Threaded
- Pitch: 1.50mm
- Head Diameter: 24.65mm
- Head Height: 5.38mm
- Square Width: 10mm
- Standard: DIN 603
- Material: 4.8 Steel BZP
- Colour: BZP
View our full range of Hex Head Screws and Bolts.
