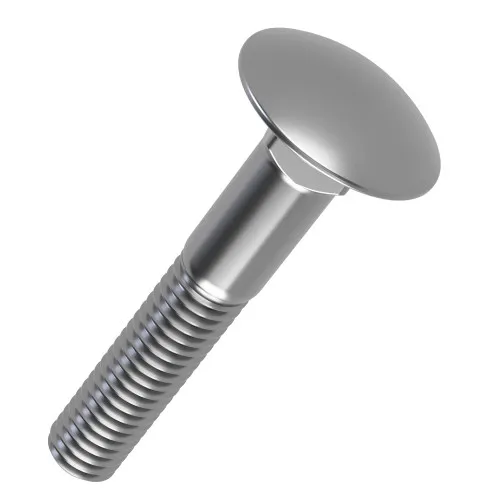

M12 x 200mm Coach Bolt & Nut (DIN 603) - Part Thread | CE Certified 4.8 Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.52 | £1.82 |
| 100 - 999 | £1.35 | £1.62 |
| 1000 - 9999 | £1.15 | £1.38 |
| 10000 + | £0.95 | £1.14 |
£1.82 / each
Product Specification
| Thread Size | M12 |
| Length | 200mm |
| Thread Length | 36mm |
| Pitch | 1.75mm |
| Material | 4.8 Steel BZP |
| Head Diameter | 30.65mm |
| Head Height | 6.95mm |
| Square Width | 12mm |
| Standard | DIN 603 |
Frequently Bought Together
Total Price: £0.00
M12 x 200mm Coach Bolt & Nut (DIN 603) | 36mm Thread Length | CE Certified 4.8 Steel BZP
These M12 x 200mm Coach Bolts and Nuts are suited to rail and edge protection, including timber kerbs, edge strips and stop blocks, especially where a tidy visible head is required on one side of the fixing. The 4.8 Steel BZP construction combines Grade 4.8 strength with a BZP finish for general indoor and sheltered use.
The square neck allows the bolt to grip timber fibres or a matching square aperture before final tightening. This makes the M12 x 200mm size useful for assemblies where only one side is easy to access during installation. Because the DIN 555 nut is included, the DIN 603 bolt can be specified as a complete bolt and nut fixing. The CE certified specification supports consistent use in regulated supply chains and trade counters. This size is useful where higher clamping area and a more substantial coach bolt are preferred.
Common Applications
- Fixing large timber members, multi-layer brackets and reinforced frames using an M12 metric coach bolt.
- Rail and edge protection where the round head needs to remain neat and low snag.
- Clamping rails, plates and timber sections with a supplied DIN 555 nut for a complete fixing set.
- Fastening long through-bolted joints that need more reach on 200mm coach bolt installations.
M12 x 200mm Coach Bolt & Nut Dimensions
- Thread Size: M12
- Length: 200mm
- Threaded Length: 36mm
- Pitch: 1.75mm
- Head Diameter: 30.65mm
- Head Height: 6.95mm
- Square Width: 12mm
- Standard: DIN 603
- Material: 4.8 Steel BZP
- Colour: BZP
View our full range of Hex Head Screws and Bolts.
