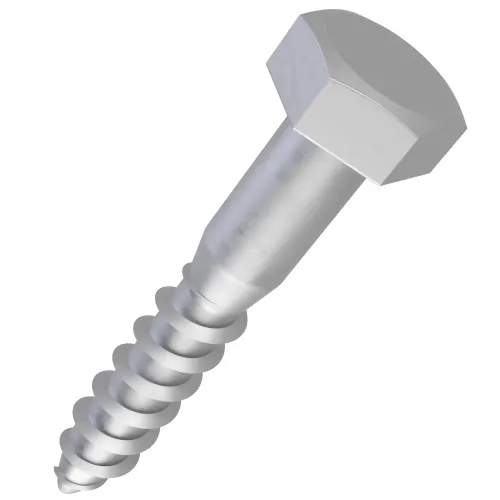

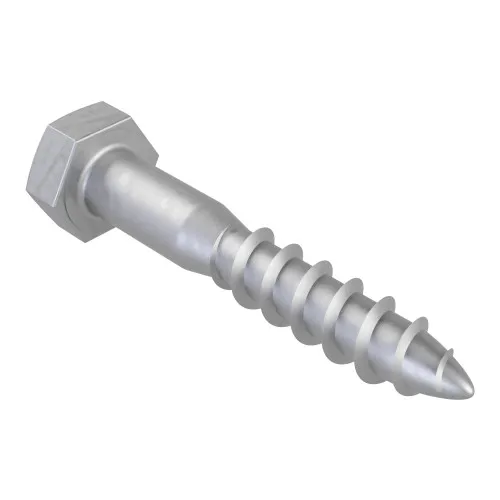

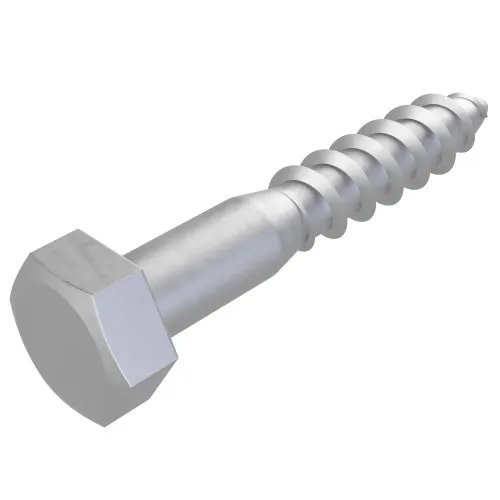

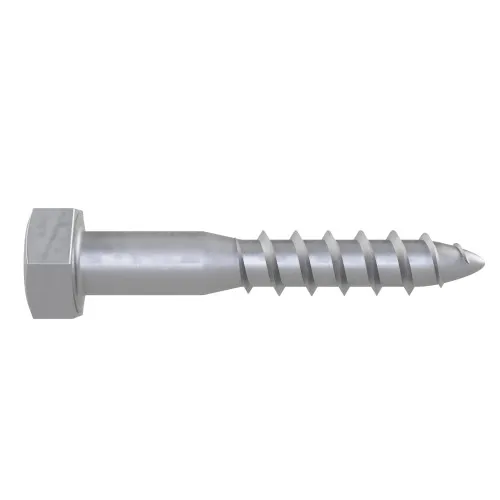

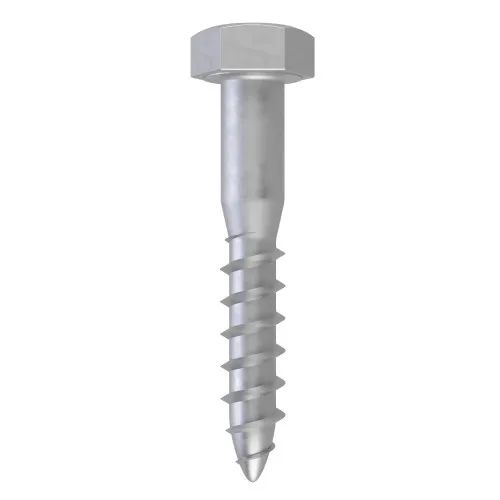

10mm x 70mm Coach Screw (DIN 571) | 4.8 Steel Galvanised
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.28 | £0.34 |
| 100 - 499 | £0.27 | £0.32 |
| 500 - 999 | £0.26 | £0.31 |
| 1000 - 4999 | £0.22 | £0.26 |
| 5000 + | £0.13 | £0.16 |
£0.34 / each
.png)
Product Specification
| Size | 10mm |
| Length | 70mm |
| Head Height | 7.0mm |
| Thread Length | 42mm |
| Material | 4.8 Steel Galvanised |
| Across Flats | 17mm |
| Shank Diameter | 10mm |
| Standard | DIN 571 |
Frequently Bought Together
Total Price: £0.00
M10 x 70mm Coach Screw DIN 571 | 4.8 Steel Galvanised
This M10 x 70mm coach screw is a M10 coach screw for commercial signage posts, combining DIN 571 dimensional control with 4.8 Steel Galvanised construction and a 7.0mm high hex head. The 70mm length helps provide the reach required for commercial signage posts without moving away from the DIN 571 coach screw pattern.
The galvanised 4.8 steel finish offers a stronger protective layer than standard bright zinc plating, making it a practical choice for fencing, landscaping and external timber frames. When fitted into a correctly sized pilot hole, the screw can deliver a secure fixing with reduced risk of timber splitting. The 10mm diameter gives a balanced option for everyday joinery, fencing and support frame installation.
Common Applications
- Cabinetwork and shopfitting where a visible hex head is acceptable
- Display frames, timber plinths and support blocks
- Galvanised coach screw fixing for fencing and landscaping
- Light fabrication work involving timber backing

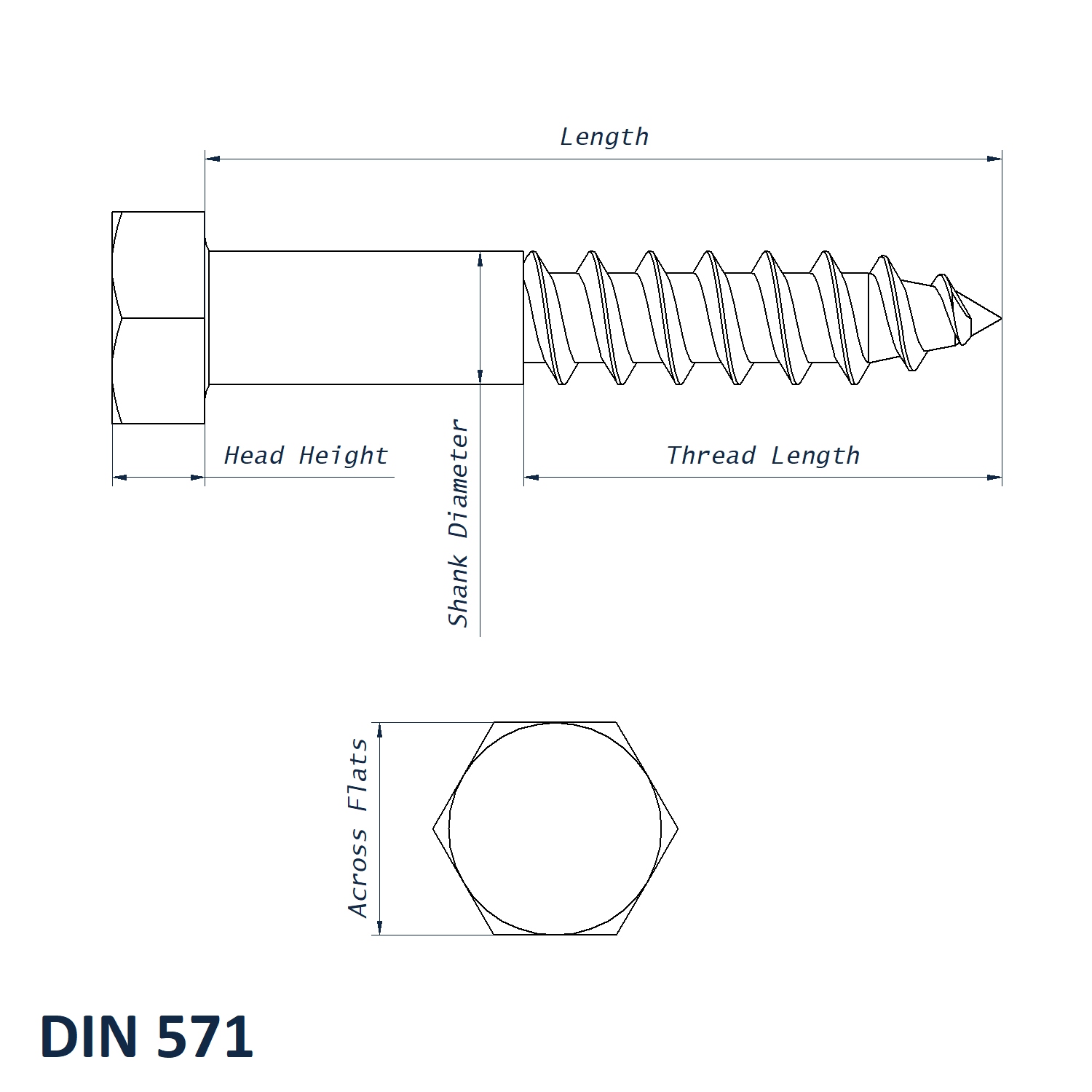

M10 x 70mm Coach Screw Dimensions
- Size: 10mm
- Length: 70mm
- Head Height: 7.0mm
- Thread Length: 42mm
- Across Flats: 17mm
- Shank Diameter: 10mm
- Standard: DIN 571
- Material: 4.8 Steel Galvanised
Coach Screw Buying Guide
For best results, drill a pilot hole before installation. Our coach screw guide explains sizing, pilot hole selection and typical uses for timber fixing work. Click here to read our coach screws guide.
View our full Coach Screws DIN 571 range or read our coach screws guide for extra advice on sizes, materials and installation.
