80mm x 54.3mm Concealed Hinge with Removable Pin - A2 Stainless Steel
Product code:
HIN431
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £14.67 | £17.60 |
| 10 - 24 | £13.62 | £16.34 |
| 25 - 49 | £12.57 | £15.08 |
| 50 - 99 | £10.89 | £13.07 |
| 100 - 499 | £8.80 | £10.56 |
| 500 + | £7.54 | £9.05 |
£17.60
/ each
Quantity:

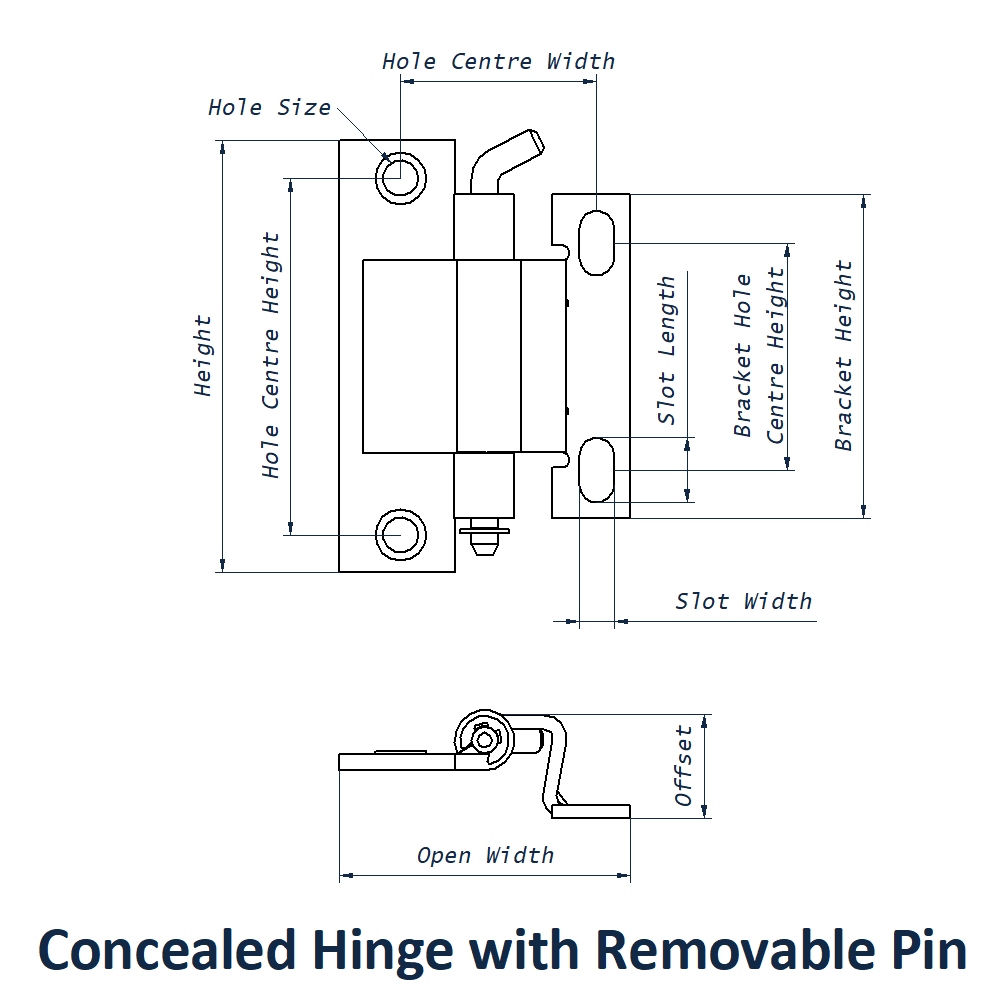

Product Specification
| Height | 80mm |
| Open Width | 54.3mm |
| Offset | 20.0mm |
| Hole Size | 6.5mm |
| Hole Centre Height | 66mm |
| Hole Centre Width | 36.5mm |
| Bracket Hole Centre Height | 42mm |
| Bracket Height | 60mm |
| Slot Length | 12mm |
| Slot Width | 6.5mm |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00

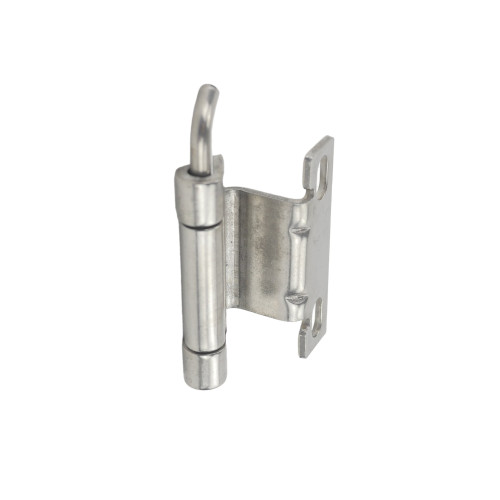

This Concealed Hinge with Removable Pin has a Height of 80mm, an Open Width of 54.3mm and an Offset measurement of 20mm.
It is made from A2 Stainless Steel which makes it ideal for applications such as internal, enclosure and machinery doors.
This Concealed Hinge with Removable Pin has a Hole Size of 6.5mm, a Hole Centre Height of 66mm and a Hole Centre Width of 36.5mm.
It also features a Bracket Hole Centre Height of 42mm, a Bracket Height of 60mm, a Slot Length of 12mm and a Slot Width of 6.5mm.
This Hinge has a 120° opening angle which allows the user to gain access to the application with ease.
The Radial Load of this Hinge is 310N and the Axial Load is 480N.
