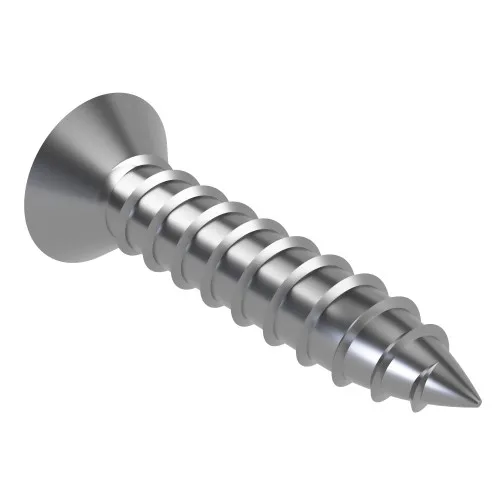

6.3mm x 16mm Phillips Countersunk AB Self Tapping Screw (DIN 7982CH) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.45 | £0.54 |
| 100 - 499 | £0.23 | £0.28 |
| 500 - 999 | £0.19 | £0.23 |
| 1000 + | £0.15 | £0.18 |
£0.54 / each
.png)
Product Specification
| Thread Size | 6.3mm |
| Length | 16mm |
| Material | A2 Stainless Steel |
| Drive Type | Phillips |
| Drive | PH3 |
| End Type | AB |
| Head Diameter | 12.4mm |
| Head Height | 3.80mm |
| Standard | DIN 7982CH |
Frequently Bought Together
Total Price: £0.00
6.3mm x 16mm Phillips Countersunk AB Self Tapping Screw DIN 7982CH | A2 Stainless Steel
For light gauge sheet work, this 6.3mm x 16mm flush fixing self tapping screw gives a practical option for attaching internal equipment rails in control cabinet applications.
The countersunk head gives a smoother finished surface while the self tapping form removes the need for a separate tapped insert in many light duty assemblies.
Common Applications
- Installing fabricated brackets
- Fixing storage system panels
- Securing production line covers
- Securing agricultural guards
6.3mm x 16mm Phillips Countersunk Screw Dimensions
- Thread Size: 6.3mm
- Length: 16mm
- Head Diameter: 12.4mm
- Head Height: 3.80mm
- End Type: AB
- Drive: PH3
- Drive Type: Phillips
- Standard: DIN 7982CH
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
