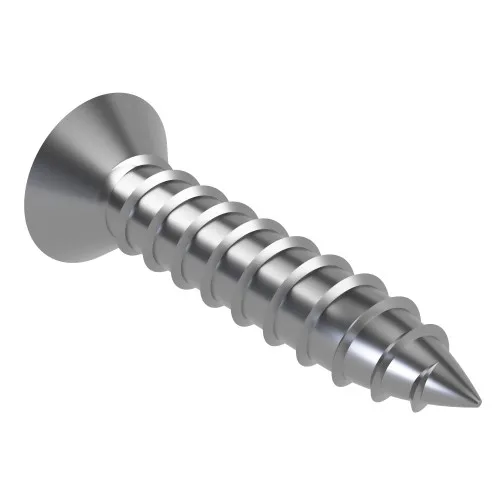

6.3mm x 22mm Phillips Countersunk AB Self Tapping Screw (DIN 7982CH) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.59 | £0.71 |
| 100 - 499 | £0.30 | £0.36 |
| 500 - 999 | £0.25 | £0.30 |
| 1000 + | £0.19 | £0.23 |
£0.71 / each
.png)
Product Specification
| Thread Size | 6.3mm |
| Length | 22mm |
| Material | A2 Stainless Steel |
| Drive Type | Phillips |
| Drive | PH3 |
| End Type | AB |
| Head Diameter | 12.4mm |
| Head Height | 3.80mm |
| Standard | DIN 7982CH |
Frequently Bought Together
Total Price: £0.00
6.3mm x 22mm Phillips Countersunk AB Self Tapping Screw DIN 7982CH | A2 Stainless Steel
For panels that need a neat finish, this 6.3mm x 22mm self threading countersunk screw provides a self tapping option when fastening aluminium cover panels.
A2 stainless steel supports corrosion resistance and consistent performance in engineering work where dependable maintenance fixing is required. This specification is suited to countersunk sheet screw use, bracket fixing screw work and enclosure screw fitting.
Common Applications
- Mounting light brackets
- Fixing equipment bezels
- Retaining machine access doors
- Attaching small brackets
6.3mm x 22mm Phillips Countersunk Screw Dimensions
- Thread Size: 6.3mm
- Length: 22mm
- Head Diameter: 12.4mm
- Head Height: 3.80mm
- End Type: AB
- Drive: PH3
- Drive Type: Phillips
- Standard: DIN 7982CH
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
View our full Countersunk Self Tapping Screws Range. Explore more Self Tapping Screws for related fastening options.
