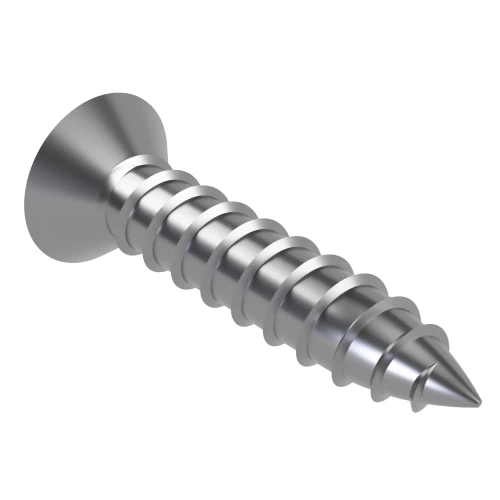

5.5mm x 16mm Phillips Countersunk AB Self Tapping Screw (DIN 7982CH) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.59 | £0.71 |
| 100 - 499 | £0.30 | £0.36 |
| 500 - 999 | £0.25 | £0.30 |
| 1000 + | £0.19 | £0.23 |
Product Specification
| Thread Size | 5.5mm |
| Length | 16.0mm |
| Material | A4 Stainless Steel |
| Drive Type | Phillips |
| Drive | PH3 |
| End Type | AB |
| Head Diameter | 10.8mm |
| Head Height | 3.40mm |
| Standard | DIN 7982CH |
Frequently Bought Together
Total Price: £0.00
5.5mm x 16mm Phillips Countersunk AB Self Tapping Screw DIN 7982CH | Marine Grade A4 Stainless Steel
Developed for panel building assembly work, this 5.5mm x 16mm countersunk panel screw is a useful choice when securing control cabinet fittings needs a flush and secure fixing.
The head sits into a matching countersunk hole, helping protect surrounding surfaces from snagging after installation. Marine grade A4 stainless steel gives stronger resistance in damp or exposed settings, making it suitable for panel building where robust panel retention is important.
Common Applications
- Building fabricated assemblies
- Fixing metal back plates
- Fastening machine guards
- Fixing folded sheet parts
5.5mm x 16mm Phillips Countersunk Screw Dimensions
- Thread Size: 5.5mm
- Length: 16mm
- Head Diameter: 10.8mm
- Head Height: 3.40mm
- End Type: AB
- Drive: PH3
- Drive Type: Phillips
- Standard: DIN 7982CH
- Material: Marine Grade A4 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
