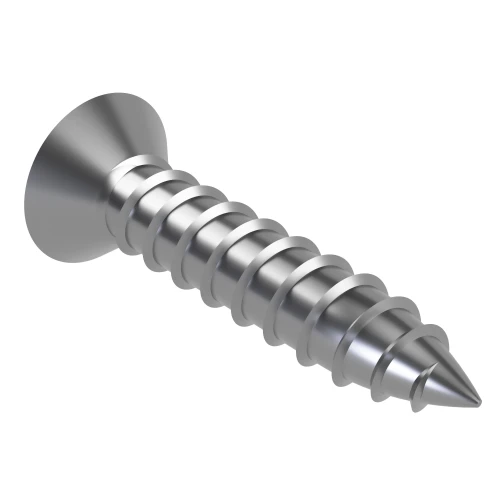

6.3mm x 45mm Phillips Countersunk AB Self Tapping Screw (DIN 7982CH) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.72 | £2.06 |
| 100 - 499 | £0.88 | £1.05 |
| 500 - 999 | £0.73 | £0.88 |
| 1000 + | £0.56 | £0.67 |
Product Specification
| Thread Size | 6.3mm |
| Length | 45.0mm |
| Material | A4 Stainless Steel |
| Drive Type | Phillips |
| Drive | PH3 |
| End Type | AB |
| Head Diameter | 12.4mm |
| Head Height | 3.80mm |
| Standard | DIN 7982CH |
Frequently Bought Together
Total Price: £0.00
6.3mm x 45mm Phillips Countersunk AB Self Tapping Screw DIN 7982CH | Marine Grade A4 Stainless Steel
Specified where appearance matters, this 6.3mm x 45mm flush fit self tapping screw is suited to attaching cable management plates with a countersunk recess.
Marine grade A4 stainless steel gives stronger resistance in damp or exposed settings, making it suitable for fabrication shop where consistent torque transfer is important. Its countersunk shape is useful when a cleaner surface finish and consistent torque transfer are both important.
Common Applications
- Mounting fabricated panels
- Fixing ventilation grilles
- Assembling instrument housings
- Fastening aluminium cover panels
6.3mm x 45mm Phillips Countersunk Screw Dimensions
- Thread Size: 6.3mm
- Length: 45mm
- Head Diameter: 12.4mm
- Head Height: 3.80mm
- End Type: AB
- Drive: PH3
- Drive Type: Phillips
- Standard: DIN 7982CH
- Material: Marine Grade A4 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
Browse the full Countersunk Self Tapping Screws Range or view our wider Self Tapping Screws collection.
