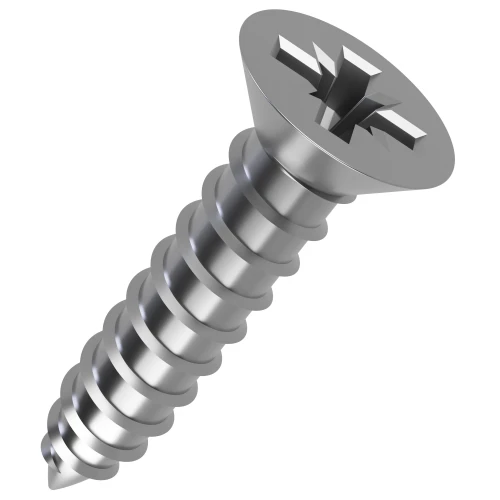

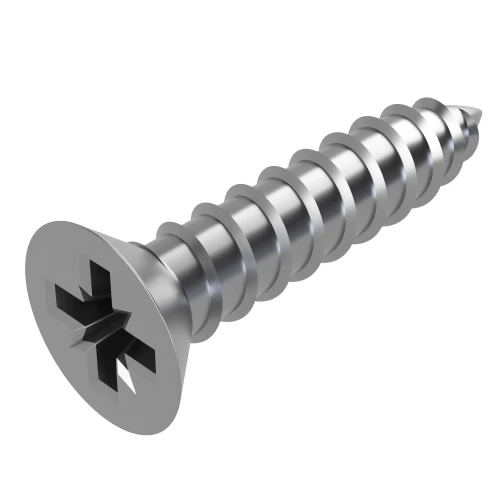

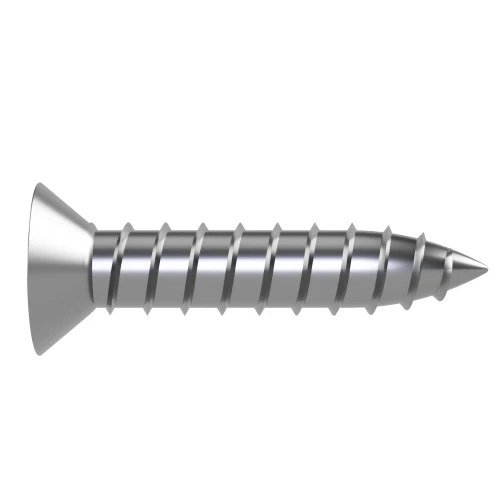

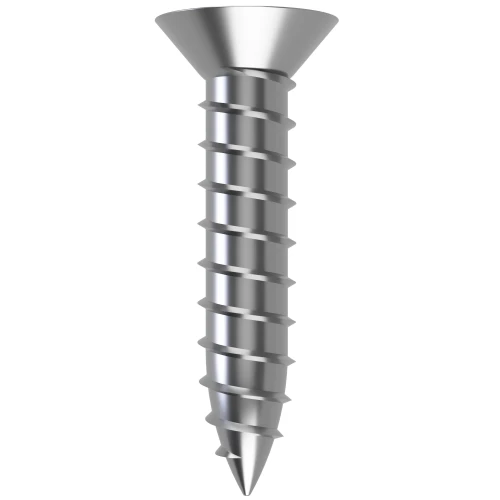

4.8mm x 19mm Pozi Countersunk AB Self Tapping Screw (DIN 7982CZ) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.28 | £0.34 |
| 100 - 499 | £0.14 | £0.17 |
| 500 - 999 | £0.12 | £0.14 |
| 1000 + | £0.10 | £0.12 |
£0.34 / each
.png)
Product Specification
| Thread Size | 4.8mm |
| Length | 19.0mm |
| Material | A2 Stainless Steel |
| Drive Type | Pozi |
| Drive | PZ2 |
| End Type | AB |
| Head Diameter | 9.5mm |
| Head Height | 3.00mm |
| Standard | DIN 7982CZ |
Frequently Bought Together
Total Price: £0.00
4.8mm x 19mm Pozi Countersunk AB Self Tapping Screw DIN 7982CZ | A2 Stainless Steel
Chosen for compact panel builds, this 4.8mm x 19mm countersunk assembly screw helps with securing machinery side panels in display hardware work.
The 9.5mm head diameter provides a practical seating area and the PZ2 drive helps maintain control during installation. A2 stainless steel supports corrosion resistance and consistent performance in display hardware work where improved vibration resistance is required.
Common Applications
- Attaching metal mounting plates
- Fastening vehicle panels
- Securing metal cappings
- Securing light gauge metalwork

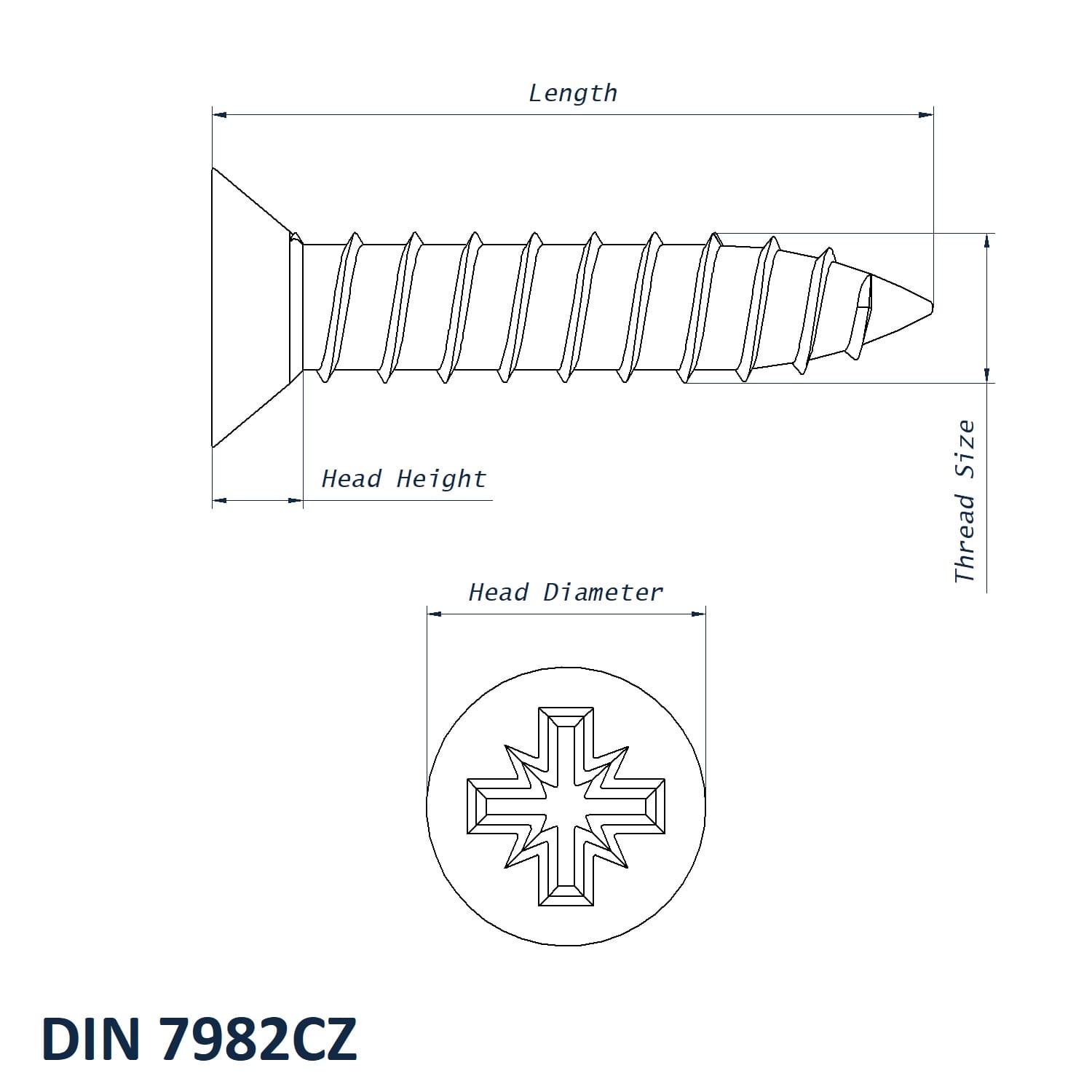

4.8mm x 19mm Pozi Countersunk Screw DIN 7982CZ Dimensions
- Thread Size: 4.8mm
- Length: 19mm
- Head Diameter: 9.5mm
- Head Height: 3.00mm
- Drive: PZ2
- End Type: AB
- Drive Type: Pozi
- Standard: DIN 7982CZ
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
