4.2mm x 22mm Slotted Countersunk AB Self Tapping Screw (DIN 7982C) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.25 | £0.30 |
| 100 - 499 | £0.12 | £0.15 |
| 500 - 999 | £0.11 | £0.13 |
| 1000 + | £0.09 | £0.11 |
£0.30 / each
.png)
Product Specification
| Thread Size | 4.2mm |
| Length | 22mm |
| Material | A2 Stainless Steel |
| Drive Type | Slotted |
| Drive | Slotted |
| End Type | AB |
| Head Diameter | 8.1mm |
| Head Height | 2.50mm |
| Standard | DIN 7972C |
Frequently Bought Together
Total Price: £0.00
4.2mm x 22mm Slotted Countersunk AB Self Tapping Screw DIN 7972C | A2 Stainless Steel
Frequently specified for mounting cable entry plates, this 4.2mm x 22mm countersunk fabrication screw helps create a recessed fixing point in compatible sheet materials.
The countersunk head helps spread load into the prepared recess and can improve surface safety by reducing protrusion. A2 stainless steel supports corrosion resistance and consistent performance in service department work where tidy recessed fixing is required.
Common Applications
- Securing metal fascia panels
- Retaining enclosure lids
- Securing light gauge metalwork
- Securing metal cappings

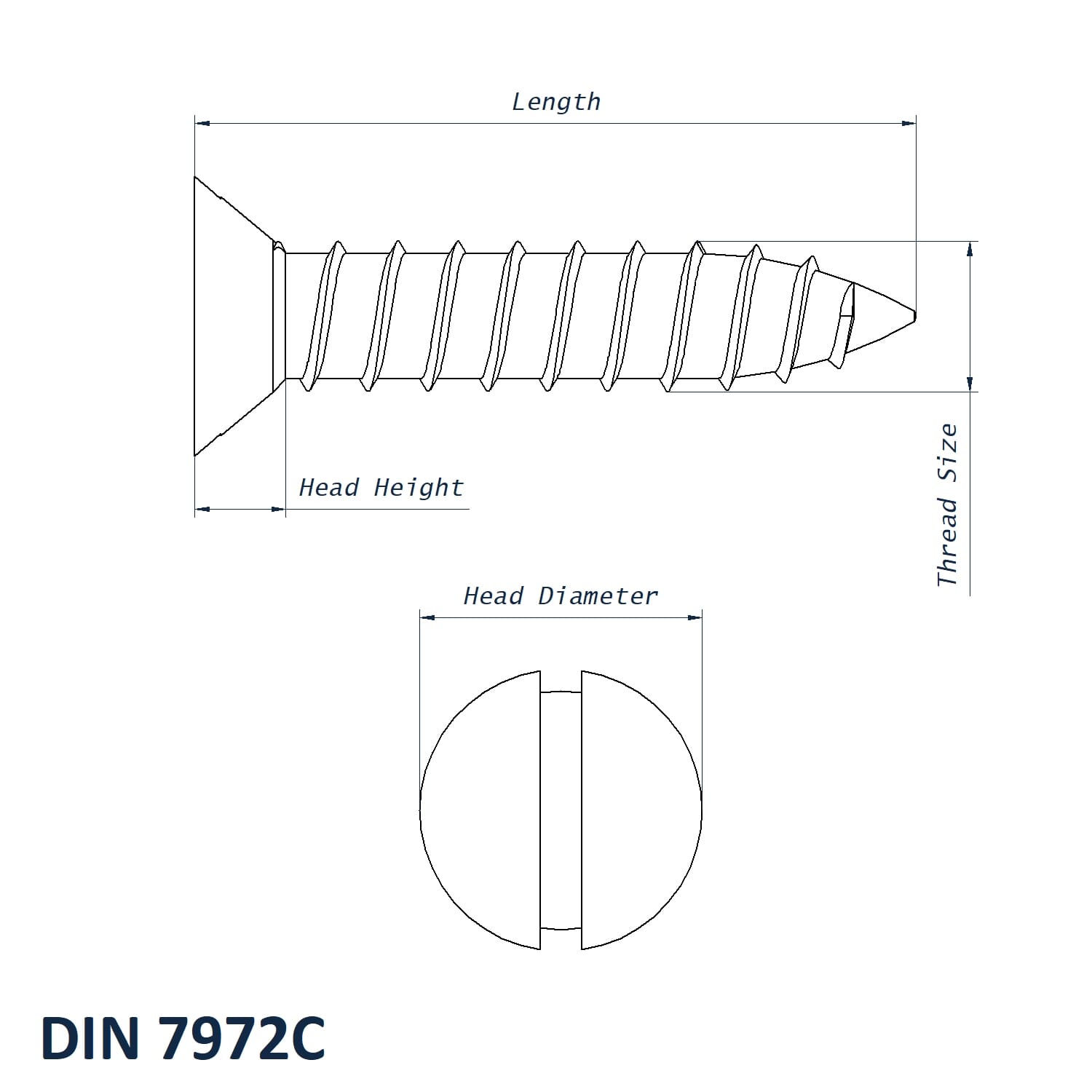

4.2mm x 22mm Slotted Countersunk Screw DIN 7972C Dimensions
- Thread Size: 4.2mm
- Length: 22mm
- Head Diameter: 8.1mm
- Head Height: 2.50mm
- Drive: Slotted
- End Type: AB
- Drive Type: Slotted
- Standard: DIN 7972C
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
