5.5mm x 19mm Slotted Countersunk AB Self Tapping Screw (DIN 7982C) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.44 | £0.53 |
| 100 - 499 | £0.22 | £0.26 |
| 500 - 999 | £0.19 | £0.23 |
| 1000 + | £0.17 | £0.20 |
£0.53 / each
.png)
Product Specification
| Thread Size | 5.5mm |
| Length | 19mm |
| Material | A2 Stainless Steel |
| Drive Type | Slotted |
| Drive | Slotted |
| End Type | AB |
| Head Diameter | 10.8mm |
| Head Height | 3.40mm |
| Standard | DIN 7972C |
Frequently Bought Together
Total Price: £0.00
5.5mm x 19mm Slotted Countersunk AB Self Tapping Screw DIN 7972C | A2 Stainless Steel
Developed for commercial equipment assembly work, this 5.5mm x 19mm low profile self tapping screw is a useful choice when attaching cabinet hardware needs a flush and secure fixing.
A2 stainless steel supports corrosion resistance and consistent performance in commercial equipment work where repeatable assembly work is required. The product is practical where repeatable assembly work is part of the fitting requirement.
Common Applications
- Assembling instrument housings
- Fixing protective corner guards
- Attaching steel guide plates
- Repairing production equipment

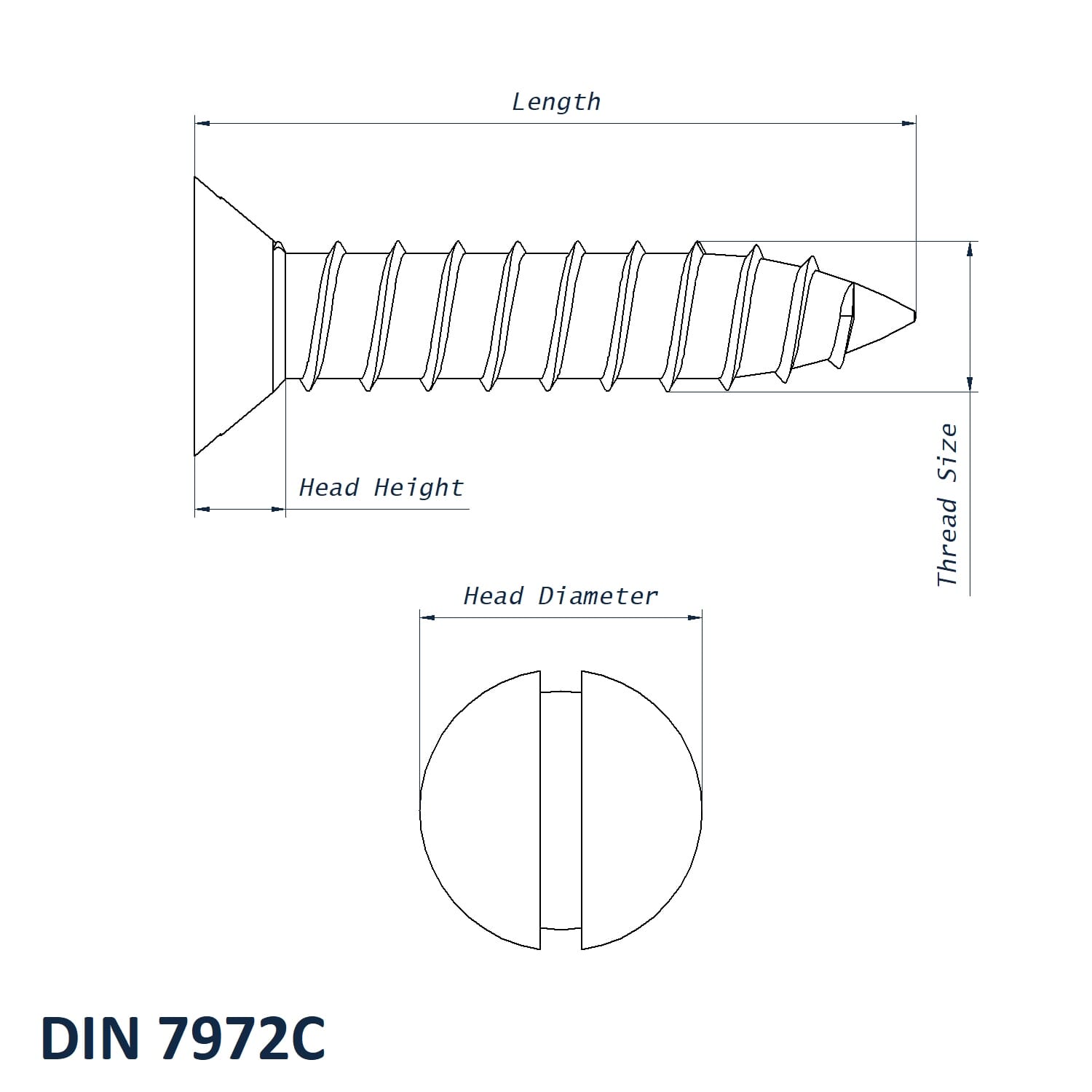

5.5mm x 19mm Slotted Countersunk Screw DIN 7972C Dimensions
- Thread Size: 5.5mm
- Length: 19mm
- Head Diameter: 10.8mm
- Head Height: 3.40mm
- Drive: Slotted
- End Type: AB
- Drive Type: Slotted
- Standard: DIN 7972C
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
