5.5mm x 70mm Slotted Countersunk AB Self Tapping Screw (DIN 7982C) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.60 | £1.92 |
| 100 - 499 | £0.80 | £0.96 |
| 500 - 999 | £0.70 | £0.84 |
| 1000 + | £0.61 | £0.73 |
£1.92 / each
Product Specification
| Thread Size | 5.5mm |
| Length | 70mm |
| Material | A2 Stainless Steel |
| Drive Type | Slotted |
| Drive | Slotted |
| End Type | AB |
| Head Diameter | 10.8mm |
| Head Height | 3.40mm |
| Standard | DIN 7972C |
Frequently Bought Together
Total Price: £0.00
5.5mm x 70mm Slotted Countersunk AB Self Tapping Screw DIN 7972C | A2 Stainless Steel
For flush fitting in construction environments, this 5.5mm x 70mm countersunk assembly screw is suitable for attaching internal equipment rails and other sheet material fixings.
A2 stainless steel supports corrosion resistance and consistent performance in construction work where excellent pull-out resistance is required. Its countersunk shape is useful when a cleaner surface finish and excellent pull-out resistance are both important.
Common Applications
- Installing fabricated brackets
- Fixing storage system panels
- Securing production line covers
- Securing agricultural guards

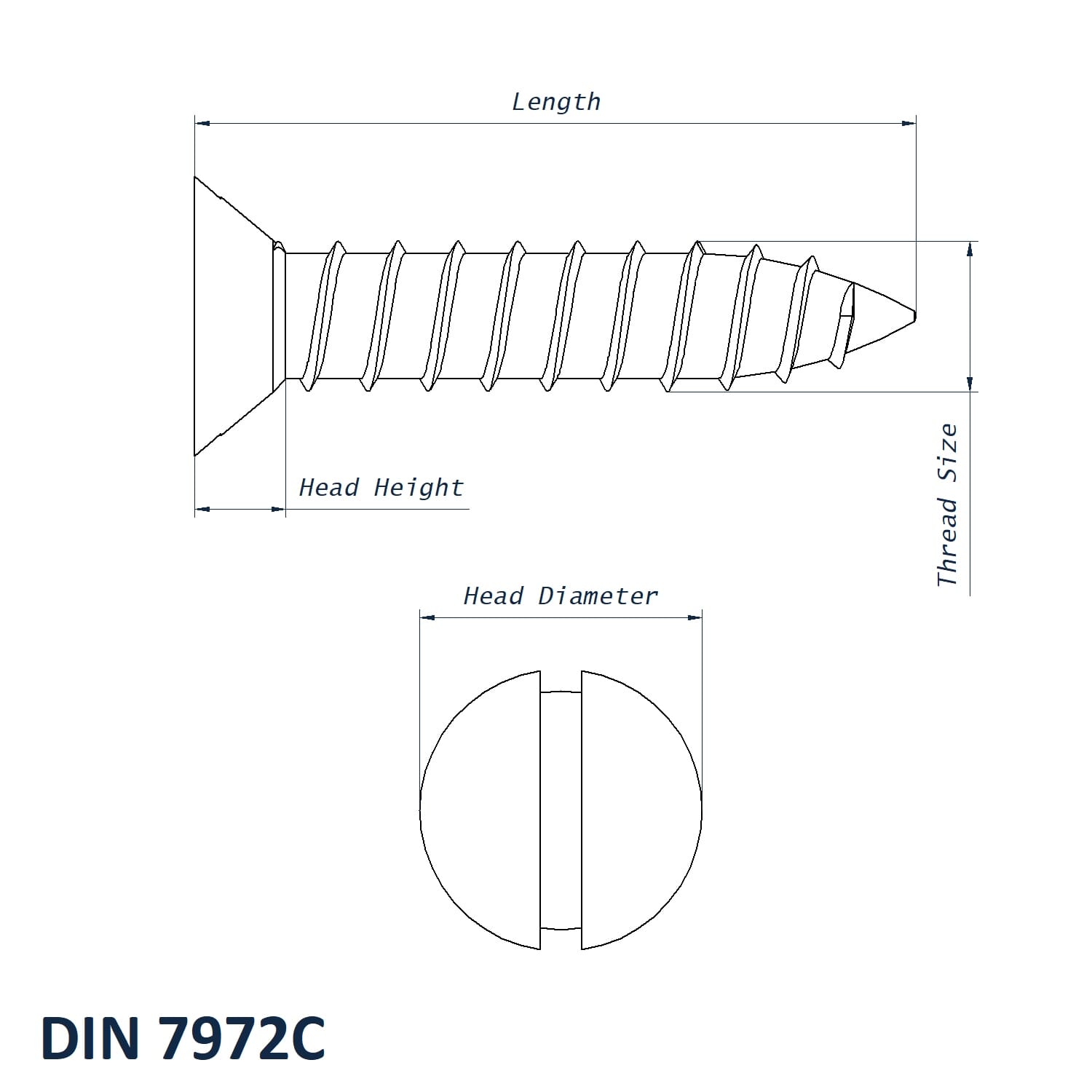

5.5mm x 70mm Slotted Countersunk Screw DIN 7972C Dimensions
- Thread Size: 5.5mm
- Length: 70mm
- Head Diameter: 10.8mm
- Head Height: 3.40mm
- Drive: Slotted
- End Type: AB
- Drive Type: Slotted
- Standard: DIN 7972C
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
