5.5mm x 16mm Slotted Countersunk AB Self Tapping Screw (DIN 7982C) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.43 | £0.52 |
| 100 - 499 | £0.24 | £0.29 |
| 500 - 999 | £0.20 | £0.24 |
| 1000 + | £0.17 | £0.20 |
Product Specification
| Thread Size | 5.5mm |
| Length | 16.0mm |
| Material | A2 Stainless Steel |
| Drive Type | Torx |
| Drive | T25 |
| End Type | AB |
| Head Diameter | 10.8mm |
| Head Height | 3.40mm |
| Standard | DIN 7982C |
Frequently Bought Together
Total Price: £0.00

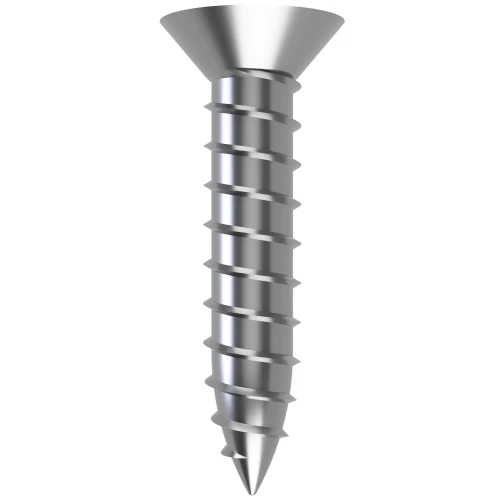

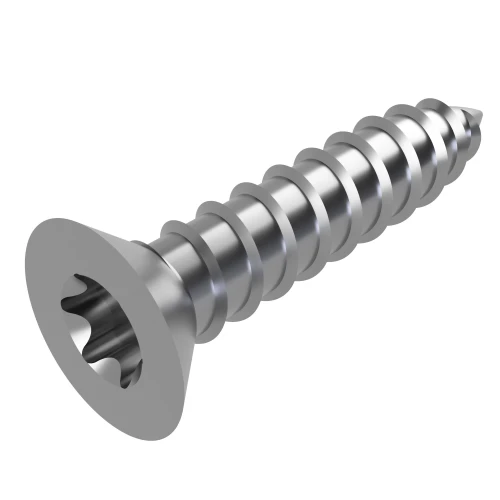

5.5mm x 16mm Torx Countersunk AB Self Tapping Screw DIN 7982C | A2 Stainless Steel
Built with an AB end type, this 5.5mm x 16mm AB thread forming screw is intended for mounting equipment nameplates where the fixing needs to form its own thread.
A2 stainless steel supports corrosion resistance and consistent performance in access equipment work where good load spread at the head is required. This makes the screw a sound choice when the job needs good load spread at the head without adding a raised fastener head.
Common Applications
- Repairing fabricated housings
- Fixing ventilation cover plates
- Retaining protective shrouds
- Fixing ventilation grilles
5.5mm x 16mm Torx Countersunk Screw DIN 7982C Dimensions
- Thread Size: 5.5mm
- Length: 16mm
- Head Diameter: 10.8mm
- Head Height: 3.40mm
- Drive: T25
- End Type: AB
- Drive Type: Torx
- Standard: DIN 7982C
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
See the complete Countersunk Self Tapping Screws Range and compare further options within Self Tapping Screws.
