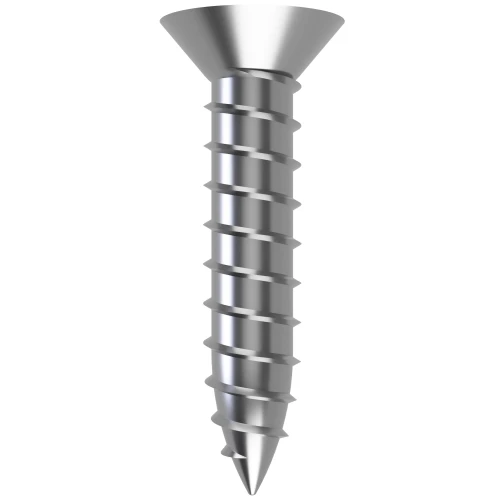

6.3mm x 16mm Slotted Countersunk AB Self Tapping Screw (DIN 7982C) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.85 | £1.02 |
| 100 - 499 | £0.47 | £0.56 |
| 500 - 999 | £0.38 | £0.46 |
| 1000 + | £0.33 | £0.39 |
Product Specification
| Thread Size | 6.3mm |
| Length | 16.0mm |
| Material | A4 Stainless Steel |
| Drive Type | Torx |
| Drive | T30 |
| End Type | AB |
| Head Diameter | 12.4mm |
| Head Height | 3.80mm |
| Standard | DIN 7982C |
Frequently Bought Together
Total Price: £0.00
6.3mm x 16mm Torx Countersunk AB Self Tapping Screw DIN 7982C | Marine Grade A4 Stainless Steel
Designed for securing utility covers, this 6.3mm x 16mm sheet metal countersunk screw provides a clean flush fixing for metalwork repair assemblies that need a low profile head.
The Torx drive supports positive tool engagement while the DIN 7982C countersunk geometry helps the head sit cleanly after tightening. Marine grade A4 stainless steel gives stronger resistance in damp or exposed settings, making it suitable for metalwork repair where repeatable assembly work is important.
Common Applications
- Securing fabricated corner plates
- Fixing enclosure trims
- Attaching panel stiffeners
- Fixing bodywork reinforcement plates
6.3mm x 16mm Torx Countersunk Screw DIN 7982C Dimensions
- Thread Size: 6.3mm
- Length: 16mm
- Head Diameter: 12.4mm
- Head Height: 3.80mm
- Drive: T30
- End Type: AB
- Drive Type: Torx
- Standard: DIN 7982C
- Material: Marine Grade A4 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
Browse the full Countersunk Self Tapping Screws Range or view our wider Self Tapping Screws collection.
