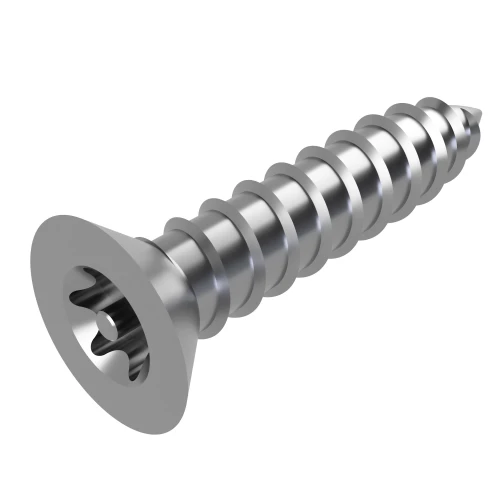

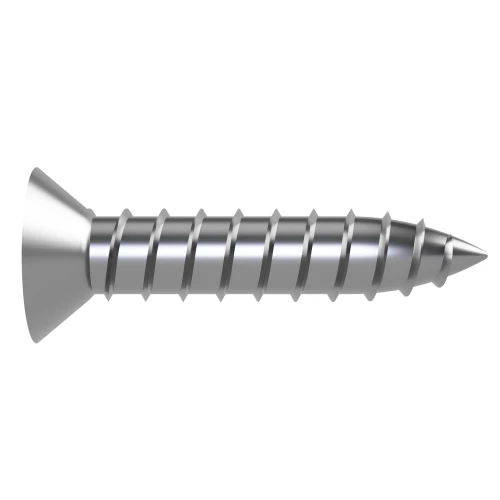

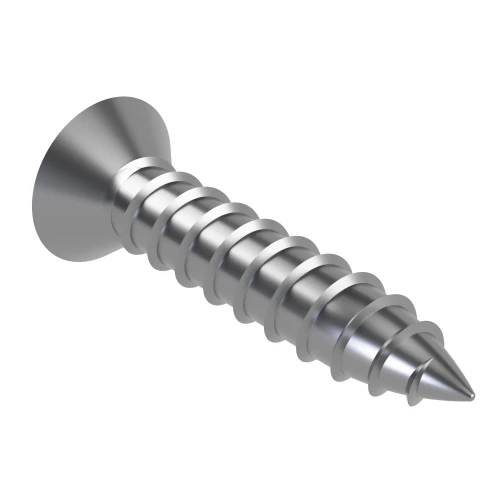

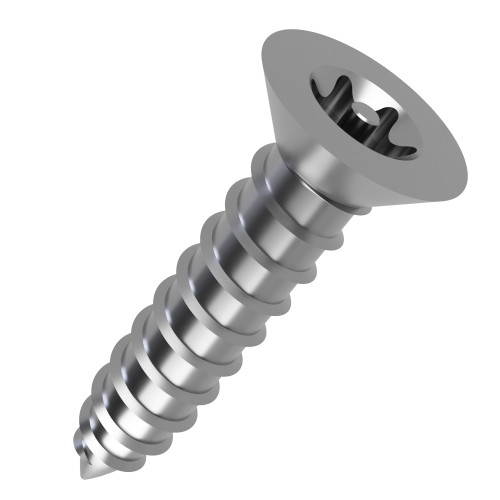

3.5mm x 19mm Pin Torx Countersunk AB Security Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.07 | £0.09 |
| 100 - 499 | £0.07 | £0.09 |
| 500 - 999 | £0.07 | £0.08 |
| 1000 + | £0.03 | £0.04 |
Product Specification
| Thread Size | 3.5mm |
| Length | 19.0mm |
| Head Diameter | 6.6mm |
| Head Height | 2.10mm |
| End Type | AB |
| Drive Type | Pin Torx |
| Drive | Security T15 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
3.9mm x 19mm Slotted Countersunk AB Self Tapping Screw (DIN 7982C) | A2 Stainless Steel
Total Price: £0.00
3.5mm x 19mm Pin Torx Countersunk AB Self Tapping Screw | A2 Stainless Steel
When OEM manufacture assemblies need attaching cable management plates, this 3.5mm x 19mm flush fit self tapping screw provides a straightforward fixing with a clean face finish.
A2 stainless steel supports corrosion resistance and consistent performance in OEM manufacture work where excellent pull-out resistance is required. The Security T15 drive gives a clear tool interface for fitting into sheet or panel applications.
Common Applications
- Mounting fabricated panels
- Fixing ventilation grilles
- Assembling instrument housings
- Fastening aluminium cover panels

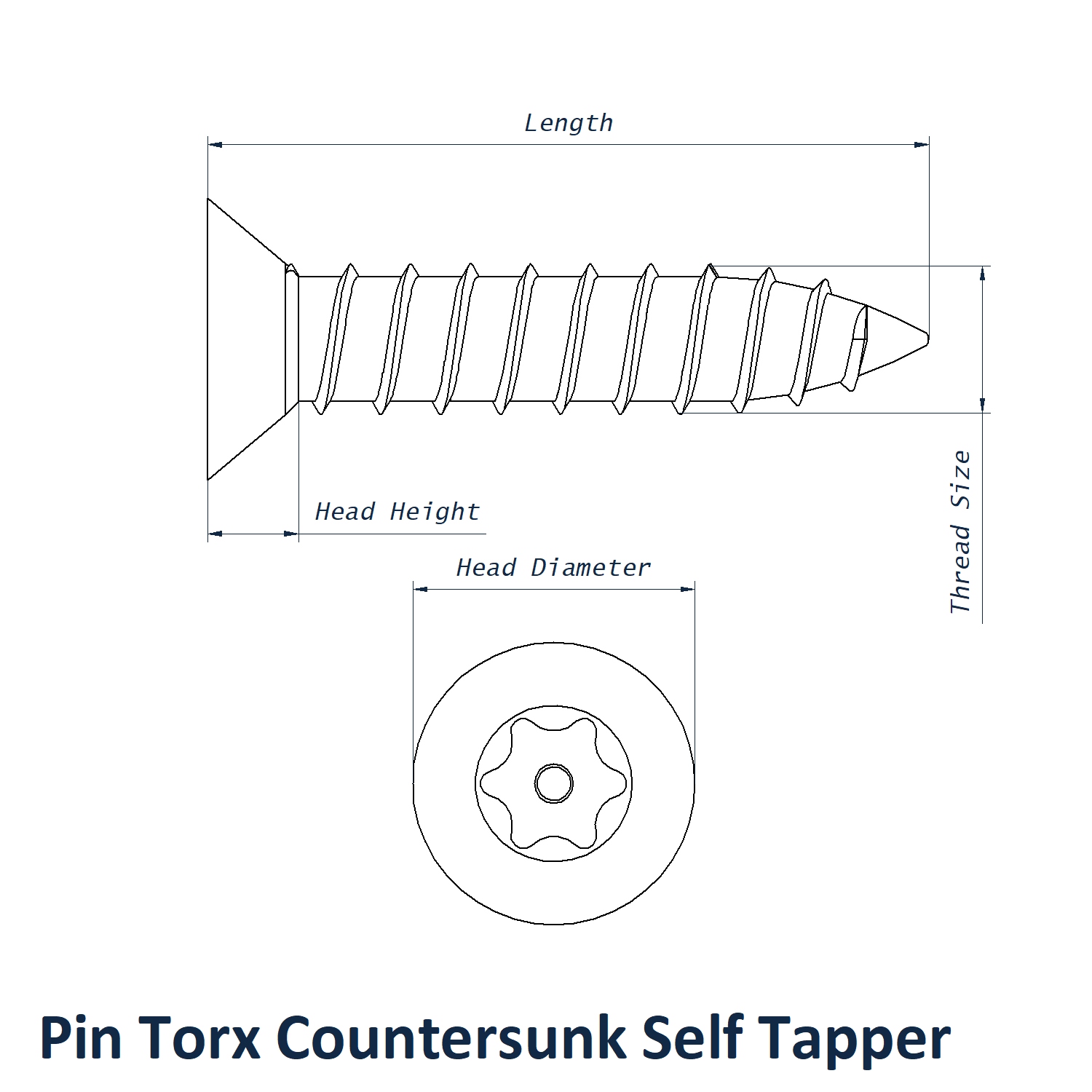

3.5mm x 19mm Pin Torx Countersunk Screw Dimensions
- Thread Size: 3.5mm
- Length: 19mm
- Head Diameter: 6.6mm
- Head Height: 2.10mm
- End Type: AB
- Drive: Security T15
- Drive Type: Pin Torx
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
Browse the full Countersunk Self Tapping Screws Range or view our wider Self Tapping Screws collection.
