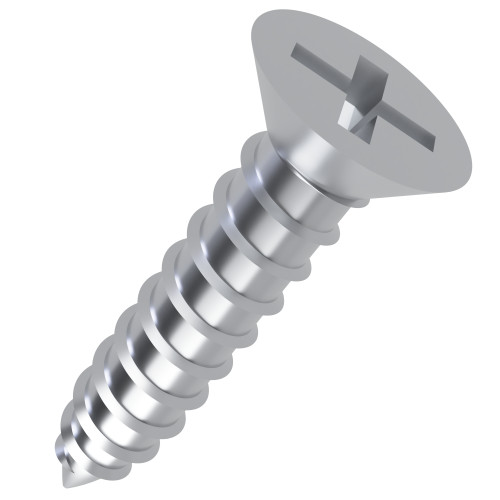

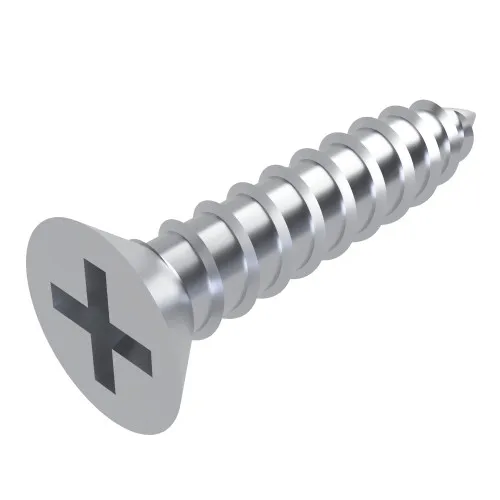

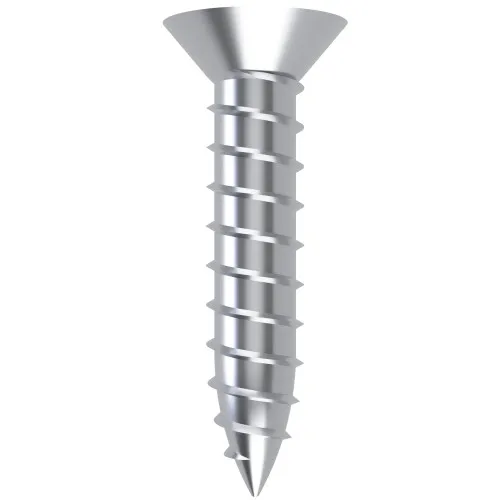

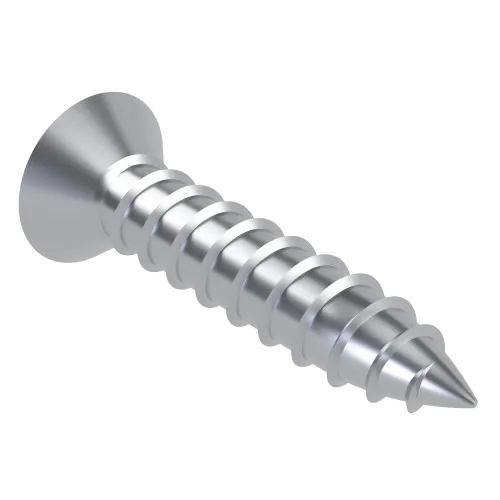

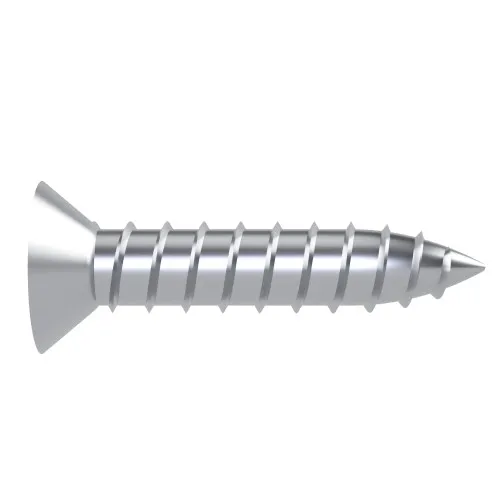

4.8mm x 38mm Phillips Countersunk AB Self Tapping Screw (DIN 7982CH) | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.17 | £0.21 |
| 100 - 499 | £0.13 | £0.16 |
| 500 - 999 | £0.08 | £0.10 |
| 1000 + | £0.04 | £0.05 |
£0.21 / each
.png)
Product Specification
| Thread Size | 4.8mm |
| Length | 38mm |
| Material | Steel BZP |
| Drive Type | Phillips |
| Drive | PH2 |
| End Type | AB |
| Head Diameter | 9.5mm |
| Head Height | 3.00mm |
| Standard | DIN 7982CH |
Frequently Bought Together
4.8mm x 38mm Phillips Countersunk AB Self Tapping Screw (DIN 7982CH) | A2 Stainless Steel
Total Price: £0.00
4.8mm x 38mm Phillips Countersunk AB Self Tapping Screw DIN 7982CH | BZP Steel
Made to support repeatable assembly, this 4.8mm x 38mm self cutting countersunk screw is used for fastening internal trim plates across instrument housing settings.
With a low profile head and clear PH2 drive detail, the screw is practical for accessible fixings that may need future removal. The BZP steel finish suits dry indoor assemblies and general fabrication work where a broader bearing surface is needed.
Common Applications
- Mounting equipment nameplates
- Fixing sheet steel panels
- Fixing junction box covers
- Installing fabricated brackets
4.8mm x 38mm Phillips Countersunk Screw Dimensions
- Thread Size: 4.8mm
- Length: 38mm
- Head Diameter: 9.5mm
- Head Height: 3.00mm
- End Type: AB
- Drive: PH2
- Drive Type: Phillips
- Standard: DIN 7982CH
- Material: Steel BZP
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
See the complete Countersunk Self Tapping Screws Range and compare further options within Self Tapping Screws.
