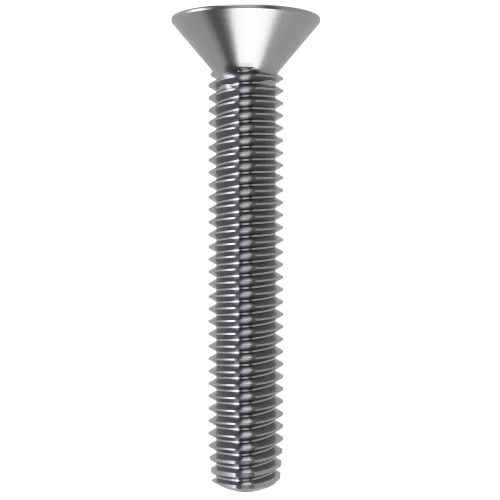

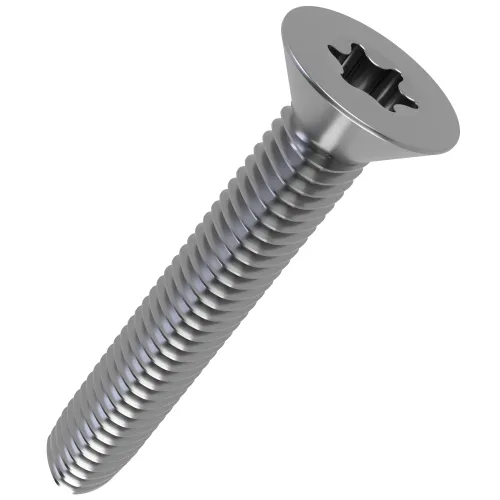

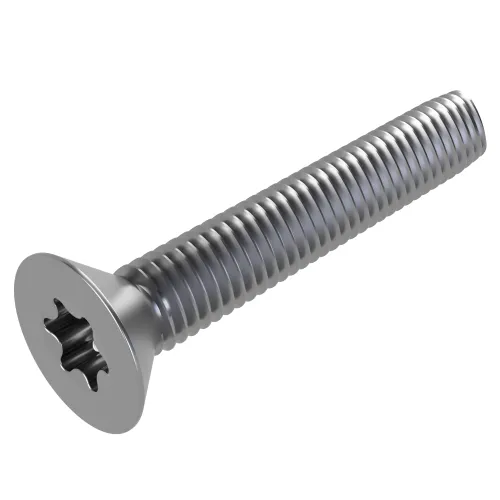

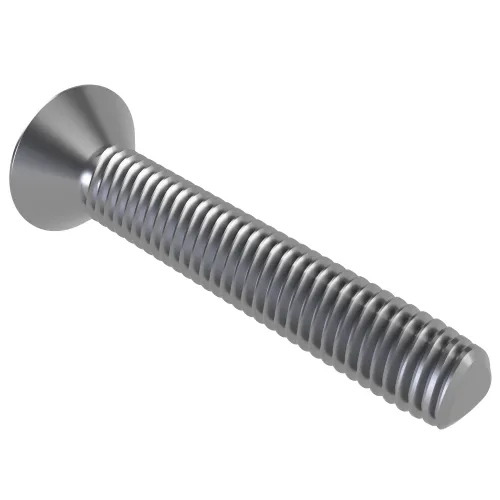

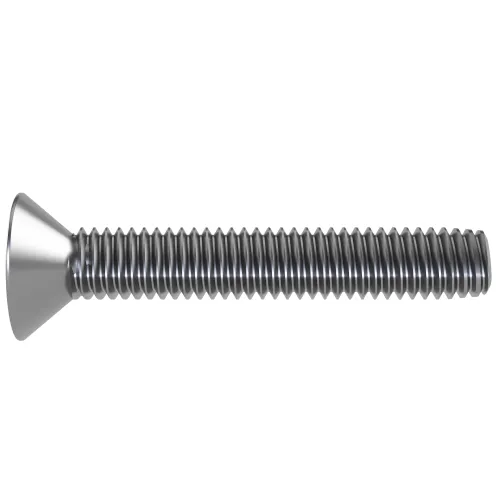

M4 x 25mm Torx Countersunk Thread Forming Screw DIN 7500MT | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.51 | £0.61 |
| 100 - 499 | £0.42 | £0.51 |
| 500 - 999 | £0.25 | £0.30 |
| 1000 - 4999 | £0.12 | £0.15 |
| 5000 + | £0.06 | £0.07 |
£0.61 / each
.png)

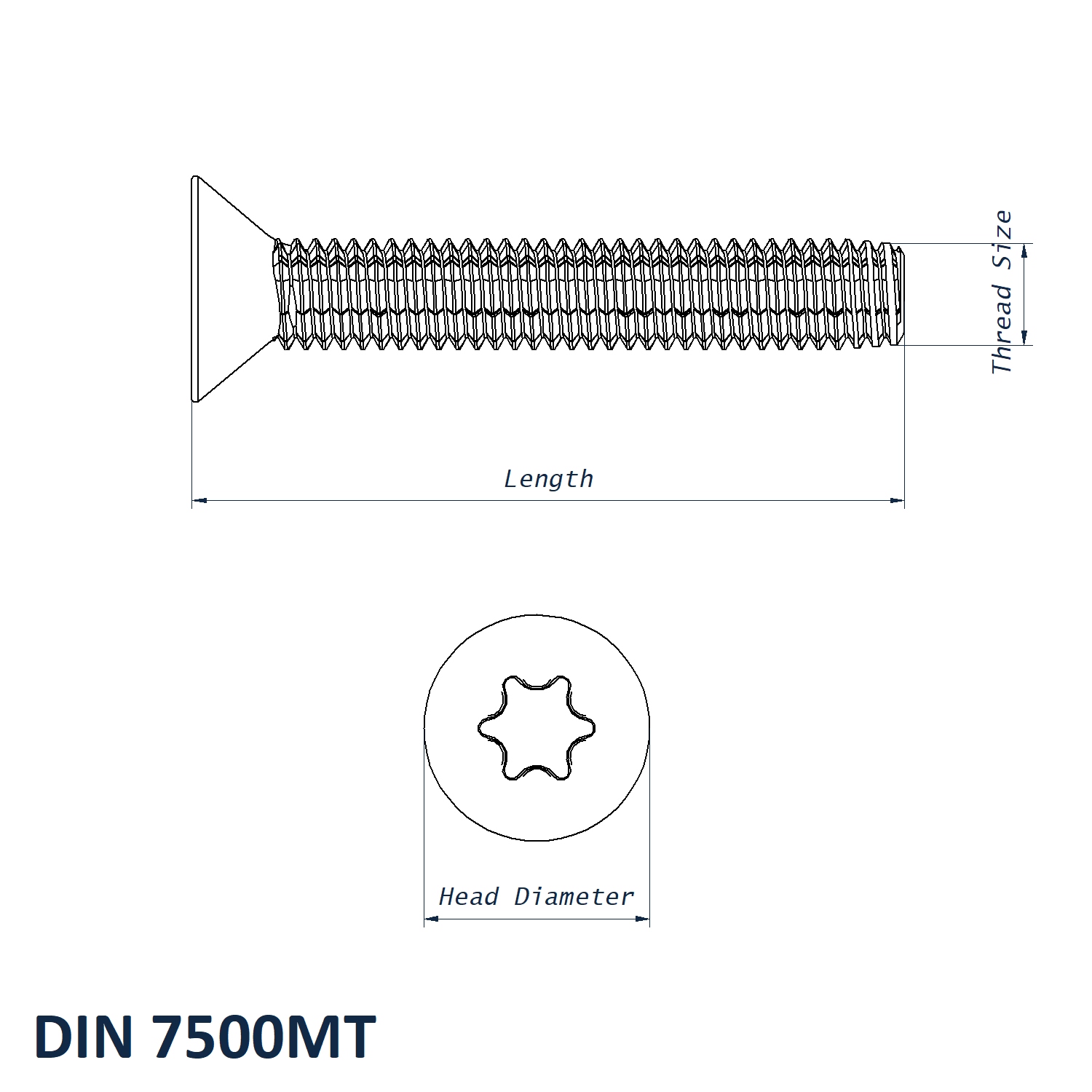

Product Specification
| Thread Size | M4 |
| Pitch | 0.70mm |
| Drive | T20 |
| Thread Length | 25mm |
| Head Diameter | 7.50mm |
| Head Height | 2.20mm |
| Material | A2 Stainless Steel |
| Standard | DIN 7500MT |
Frequently Bought Together
Total Price: £0.00
M4 x 25mm Torx Countersunk Thread Forming Screw DIN 7500MT A2 Stainless Steel TF7500MT-M4-25-A2
The M4 x 25mm Torx Countersunk Thread Forming Screw DIN 7500MT A2 Stainless Steel is a thread forming fastener designed to create a secure metric thread when installed into a correctly sized pre-drilled hole in suitable ductile materials. Its countersunk head provides a neat, flush finish, while the T20 drive offers positive engagement and efficient torque transfer during installation. Manufactured from A2 Stainless Steel, this screw provides good corrosion resistance for a wide range of engineering and industrial applications.
What are Torx Countersunk Thread Forming Screws?
Torx countersunk thread forming screws are designed to displace and form material rather than cut and remove it. This creates a mating thread directly during installation and can reduce the need for a separate tapping operation. The countersunk head is suitable for applications where the installed screw needs to sit flush with or below the surrounding surface, while the Torx recess helps provide secure driver engagement.
Technical Specifications:
- Thread Size: M4
- Thread Length: 25mm
- Head Diameter: 7.50mm
- Head Height: 2.20mm
- Pitch: 0.70mm
- Drive: T20
- Standard: DIN 7500MT
- Material: A2 Stainless Steel
Applications:
- Sheet metal and fabricated assemblies with suitable pre-drilled holes
- Electrical and electronic equipment
- Machinery, enclosures and industrial assemblies
- Applications requiring a flush countersunk finish
- Automated and production assembly where reliable drive engagement is beneficial
Benefits:
- Forms a reusable metric thread during installation
- Countersunk head provides a clean, flush finish
- Torx drive offers positive engagement and efficient torque transfer
- Can reduce production steps by removing the need for pre-tapping in suitable applications
- A2 Stainless Steel provides good corrosion resistance
- Manufactured to DIN 7500MT
