Ergonomic Clamping Handle - HW147

Product code: HW147
View All Specifications

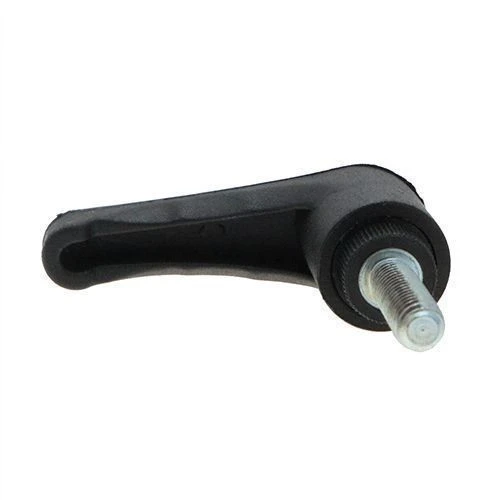

Black M6 x 20mm Ergonomic Clamping Handles

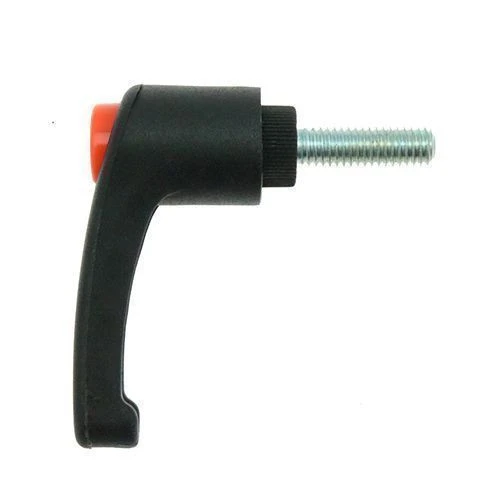

Black M6 x 20mm Ergonomic Clamping Handles

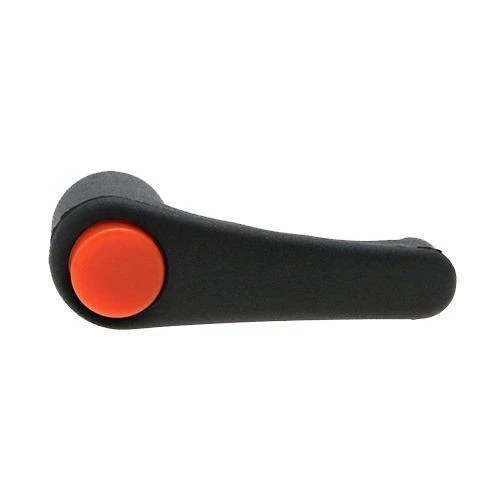

Black M6 x 20mm Ergonomic Clamping Handles

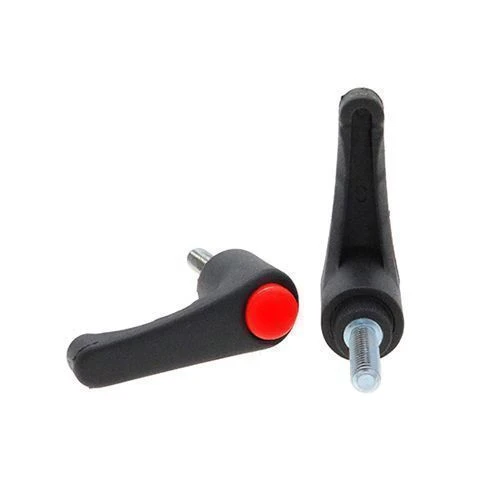

Black M6 x 20mm Ergonomic Clamping Handles
Black M6 x 20mm Ergonomic Clamping Handles
Black M6 x 20mm Ergonomic Clamping Handles
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £1.96 £2.35
10 - 24 £1.59 £1.91
25 - 49 £1.47 £1.76
50 - 99 £1.27 £1.53
100 - 499 £1.03 £1.24
500 + £0.88 £1.06

£2.35 / each


Up to 590 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
590 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M6 x 20mm
Thread Type Male
Handle Length 43mm
Height 29mm
Shank Diameter 12mm
Handle Material Nylon
Thread Material Steel
Handle Colour Black
Button Colour Orange

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M6 x 20mm Male Ergonomic Clamping Handle | 43mm Handle | Black/Orange Nylon | Steel Thread

Made for repeated industrial clamping and adjustment, this M6 x 20mm ergonomic clamping lever uses a male thread for direct engagement with a compatible tapped hole or female component. The 29mm overall height and 43mm handle length define the operating envelope. The Steel threaded component provides a robust fixing for general machinery, tooling and industrial adjustment.

What Are Ergonomic Clamping Handles?

Ergonomic Clamping Handles are hand-operated indexed levers used to clamp, hold or adjust machine components. Their ergonomic profile improves grip during repeated use while the ratchet mechanism lets the handle be repositioned without changing the threaded clamping point.

For additional manual adjustment options, compare our wider adjustable handles selection across several handle styles and materials.

Common Applications

  • Adjustable Guides: Locks guides and stops in position while allowing regular repositioning without separate tools.
  • Maintenance Equipment: Provides a convenient hand-operated fixing for serviceable brackets, covers and adjustable components.
  • Production Tooling: Supports repeated clamping and release on suitable manufacturing fixtures and tooling.
  • Technical Equipment: Provides an indexed lever for adjustable brackets, panels and mechanical assemblies.

M6 x 20mm Male Ergonomic Clamping Handle Dimensions

  • Thread Size: M6 x 20mm
  • Thread Type: Male
  • Handle Length: 43mm
  • Height: 29mm
  • Shank Diameter: 12mm
  • Handle Colour: Black
  • Button Colour: Orange
  • Handle Material: Nylon
  • Thread Material: Steel

Key Benefits

  • Indexed ratchet mechanism allows the lever position to be reset after tightening.
  • M6 x 20mm male thread provides the specified connection for the clamping assembly.
  • 29mm overall height defines the installed handle profile.
  • Black Nylon handle with Orange button gives the specified colour combination.

View our male adjustable clamping handles in other thread sizes, colours and handle lengths. If you are unsure which option suits your machinery or fixture, contact our team on 01233 713581.
