Ergonomic Clamping Handle - HW144

Product code: HW144
View All Specifications

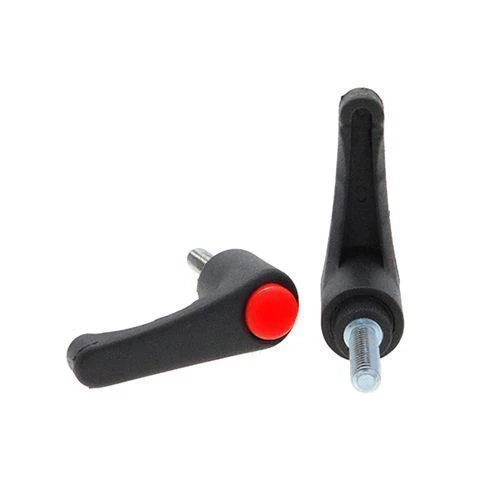

Black M6 x 10mm Ergonomic Clamping Handles

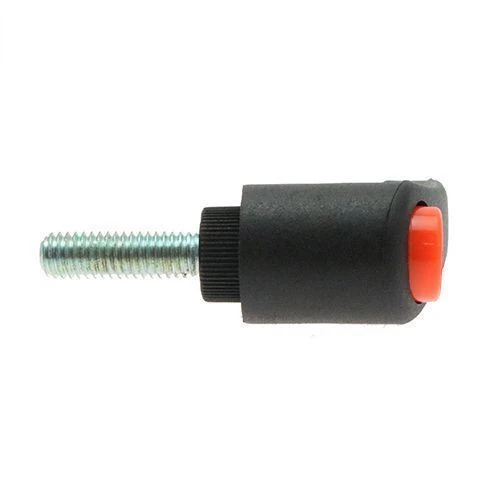

Black M6 x 10mm Ergonomic Clamping Handles

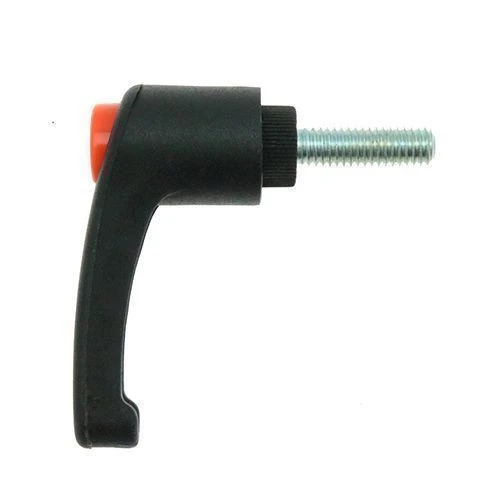

Black M6 x 10mm Ergonomic Clamping Handles

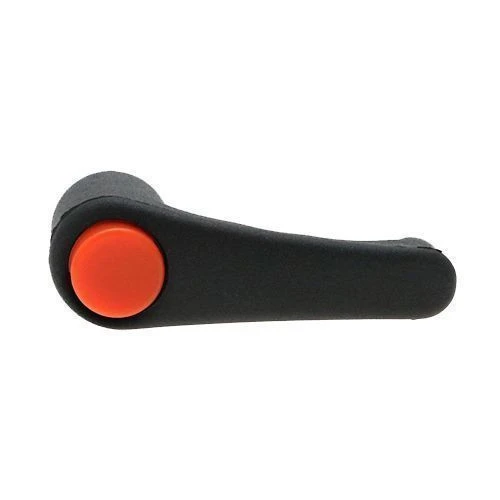

Black M6 x 10mm Ergonomic Clamping Handles

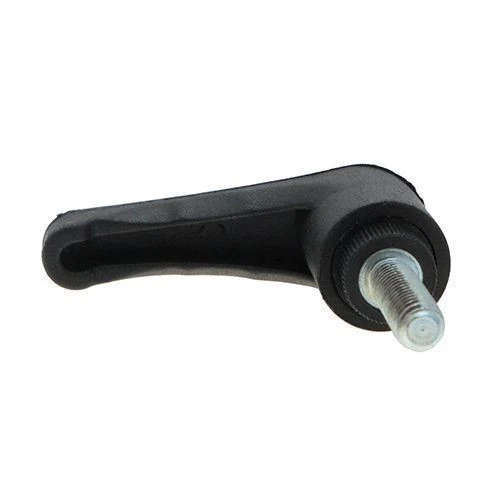

Black M6 x 10mm Ergonomic Clamping Handles
Black M6 x 10mm Ergonomic Clamping Handles
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £2.01 £2.41
10 - 24 £1.63 £1.96
25 - 49 £1.51 £1.81
50 - 99 £1.31 £1.57
100 - 499 £1.06 £1.27
500 + £0.91 £1.09

£2.41 / each


Up to 24 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 784 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
784 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M6 x 10mm
Thread Type Male
Handle Length 43mm
Height 29mm
Shank Diameter 12mm
Handle Material Nylon
Thread Material Steel
Handle Colour Black
Button Colour Orange

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M6 x 10mm Male Ergonomic Clamping Handle | 43mm Handle | Black/Orange Nylon | Steel Thread

For test rigs, inspection fixtures and technical equipment, this M6 x 10mm male indexed clamping handle provides a threaded clamping stud and 43mm operating lever in one assembly. The ratchet mechanism helps users tighten the fixing then move the handle to a more convenient resting position. The Steel threaded component provides a robust fixing for general machinery, tooling and industrial adjustment.

What Are Ergonomic Clamping Handles?

Adjustable Ergonomic Clamping Handles are used on machinery, jigs and fixtures where components need to be locked, released or repositioned by hand. The indexed mechanism supports repeated adjustment in confined or frequently accessed locations.

For additional manual adjustment options, compare our wider machine clamping handles selection across several handle styles and materials.

Common Applications

  • Packaging Machinery: Allows guides, stops and adjustable components to be tightened and repositioned by hand.
  • Inspection Fixtures: Provides repeatable clamping for gauges, test rigs and adjustable checking equipment.
  • Workshop Machinery: Secures suitable guards, brackets and accessories where regular hand adjustment is required.
  • Assembly Equipment: Supports quick manual clamping on suitable fixtures, locators and production aids.

M6 x 10mm Male Ergonomic Clamping Handle Dimensions

  • Thread Size: M6 x 10mm
  • Thread Type: Male
  • Handle Length: 43mm
  • Height: 29mm
  • Shank Diameter: 12mm
  • Handle Colour: Black
  • Button Colour: Orange
  • Handle Material: Nylon
  • Thread Material: Steel

Key Benefits

  • Indexed ratchet mechanism allows the lever position to be reset after tightening.
  • M6 x 10mm male thread provides the specified connection for the clamping assembly.
  • 29mm overall height defines the installed handle profile.
  • Black Nylon handle with Orange button gives the specified colour combination.

Compare our male ratchet clamping handles for alternative thread sizes, materials and handle dimensions. We can help you choose the correct fit on 01233 713581.
