Ergonomic Clamping Handle - HW146

Product code: HW146
View All Specifications

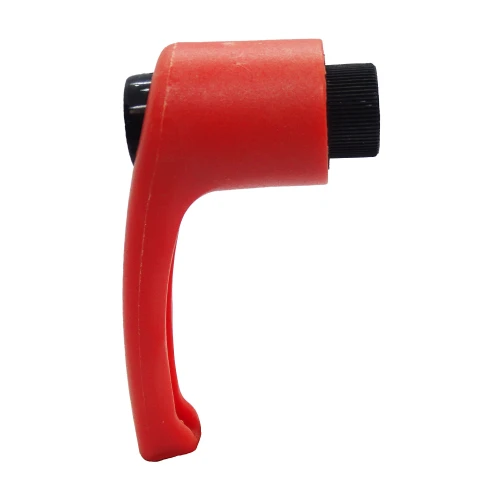

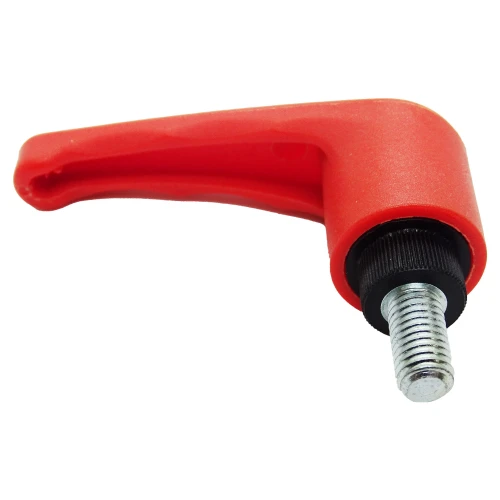

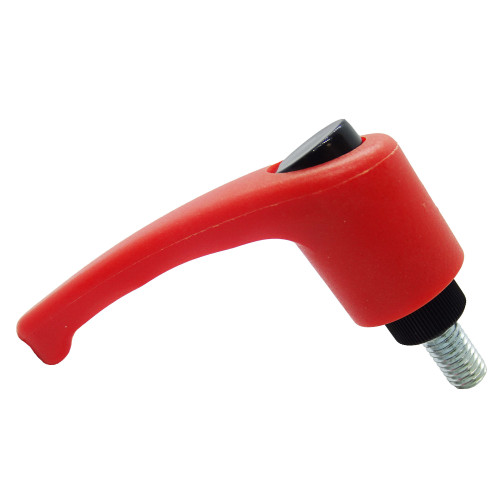

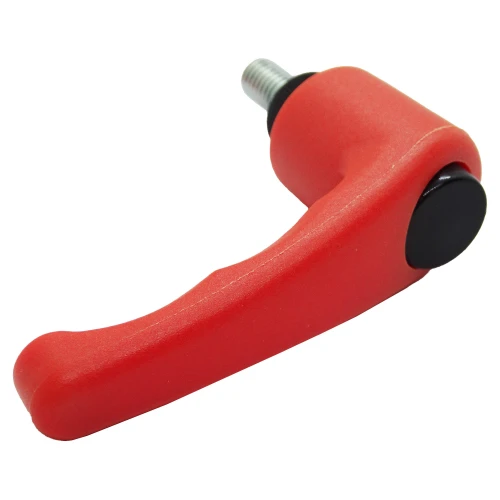

Orange M6 x 30mm Ergonomic Clamping Handles
Orange M6 x 30mm Ergonomic Clamping Handles
Orange M6 x 30mm Ergonomic Clamping Handles
Orange M6 x 30mm Ergonomic Clamping Handles
Orange M6 x 30mm Ergonomic Clamping Handles
Orange M6 x 30mm Ergonomic Clamping Handles
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £2.06 £2.47
10 - 24 £1.68 £2.01
25 - 49 £1.55 £1.86
50 - 99 £1.34 £1.61
100 - 499 £1.08 £1.30
500 + £0.93 £1.11

£2.47 / each


Up to 410 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
410 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M6 x 30mm
Thread Type Male
Handle Length 43mm
Height 29mm
Shank Diameter 12mm
Handle Material Nylon
Thread Material Steel
Handle Colour Orange
Button Colour Black

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M6 x 30mm Male Ergonomic Clamping Handle | 43mm Handle | Orange/Black Nylon | Steel Thread

Designed for test rigs, inspection fixtures and technical equipment, this M6 x 30mm male ratchet clamping handle uses a male threaded stud to clamp or secure a compatible component. The ergonomic Nylon handle can be repositioned through the indexed mechanism when surrounding equipment limits continuous rotation. The Steel threaded component provides a robust fixing for general machinery, tooling and industrial adjustment.

What Are Ergonomic Clamping Handles?

Ergonomic Clamping Handles are hand-operated indexed levers used to clamp, hold or adjust machine components. Their ergonomic profile improves grip during repeated use while the ratchet mechanism lets the handle be repositioned without changing the threaded clamping point.

For additional manual adjustment options, compare our wider threaded clamping handles selection across several handle styles and materials.

Common Applications

  • Adjustable Guides: Locks guides and stops in position while allowing regular repositioning without separate tools.
  • Maintenance Equipment: Provides a convenient hand-operated fixing for serviceable brackets, covers and adjustable components.
  • Production Tooling: Supports repeated clamping and release on suitable manufacturing fixtures and tooling.
  • Technical Equipment: Provides an indexed lever for adjustable brackets, panels and mechanical assemblies.

M6 x 30mm Male Ergonomic Clamping Handle Dimensions

  • Thread Size: M6 x 30mm
  • Thread Type: Male
  • Handle Length: 43mm
  • Height: 29mm
  • Shank Diameter: 12mm
  • Handle Colour: Orange
  • Button Colour: Black
  • Handle Material: Nylon
  • Thread Material: Steel

Key Benefits

  • Indexed ratchet mechanism allows the lever position to be reset after tightening.
  • M6 x 30mm male thread provides the specified connection for the clamping assembly.
  • 29mm overall height defines the installed handle profile.
  • Orange Nylon handle with Black button gives the specified colour combination.

See more male indexed clamping handles for industrial clamping and adjustment applications. For product-selection support, speak with our team on 01233 713581.
