Ergonomic Clamping Handle - HW153

Product code: HW153
View All Specifications

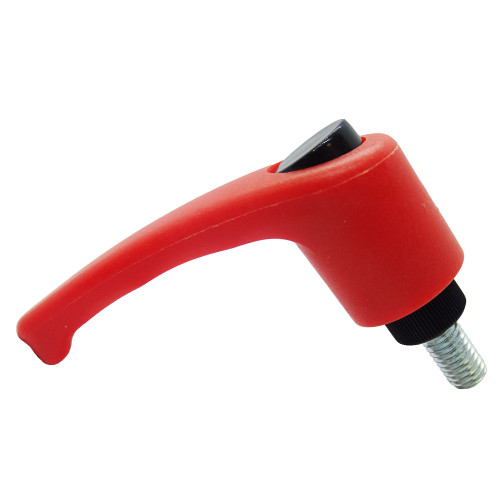

Orange M8 x 20mm Ergonomic Clamping Handles
Orange M8 x 20mm Ergonomic Clamping Handles
Orange M8 x 20mm Ergonomic Clamping Handles
Orange M8 x 20mm Ergonomic Clamping Handles
Orange M8 x 20mm Ergonomic Clamping Handles
Orange M8 x 20mm Ergonomic Clamping Handles
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £2.39 £2.87
10 - 24 £1.94 £2.33
25 - 49 £1.79 £2.15
50 - 99 £1.55 £1.86
100 - 499 £1.26 £1.51
500 + £1.07 £1.29

£2.87 / each


Up to 2 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 1,080 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
1,080 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M8 x 20mm
Thread Type Male
Handle Length 65mm
Height 38mm
Shank Diameter 15mm
Handle Material Nylon
Thread Material Steel
Handle Colour Orange
Button Colour Black

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M8 x 20mm Male Ergonomic Clamping Handle | 65mm Handle | Orange/Black Nylon | Steel Thread

This M8 x 20mm male indexed clamping handle combines a projecting threaded stud with an ergonomic Nylon lever for test rigs, inspection fixtures and technical equipment. The 65mm handle length provides useful leverage while the indexed ratchet action allows the lever position to be reset after tightening. The Steel threaded component provides a robust fixing for general machinery, tooling and industrial adjustment.

What Are Ergonomic Clamping Handles?

Ratchet Clamping Handles provide manual tightening and adjustment without requiring a separate spanner for each movement. The Nylon lever provides a comfortable operating surface while the threaded section engages with the matching component.

Different applications may suit other threaded clamping handles, including alternative handle shapes, materials and male or female thread options.

Common Applications

  • Adjustable Guides: Locks guides and stops in position while allowing regular repositioning without separate tools.
  • Maintenance Equipment: Provides a convenient hand-operated fixing for serviceable brackets, covers and adjustable components.
  • Production Tooling: Supports repeated clamping and release on suitable manufacturing fixtures and tooling.
  • Technical Equipment: Provides an indexed lever for adjustable brackets, panels and mechanical assemblies.

M8 x 20mm Male Ergonomic Clamping Handle Dimensions

  • Thread Size: M8 x 20mm
  • Thread Type: Male
  • Handle Length: 65mm
  • Height: 38mm
  • Shank Diameter: 15mm
  • Handle Colour: Orange
  • Button Colour: Black
  • Handle Material: Nylon
  • Thread Material: Steel

Key Benefits

  • Orange Nylon handle with Black button gives the specified colour combination.
  • Indexed ratchet mechanism allows the lever position to be reset after tightening.
  • M8 x 20mm male thread provides the specified connection for the clamping assembly.
  • 38mm overall height defines the installed handle profile.

Compare our male ratchet clamping handles for alternative thread sizes, materials and handle dimensions. We can help you choose the correct fit on 01233 713581.
