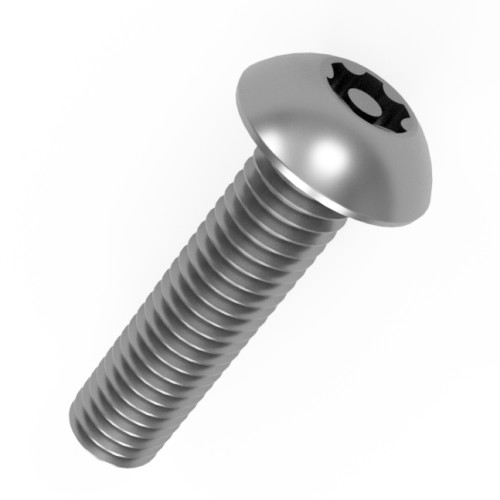

M5 x 10mm Security Pin Torx Button Head Screw (T25) | Tamper Resistant A2 Stainless Steel

Product code: PTBS7380-M5-10-A2
View All Specifications
M5 x 10mm Security Pin Torx Button Head Screw (T25) | Tamper Resistant A2 Stainless Steel
M5 x 10mm Security Pin Torx Button Head Screw (T25) | Tamper Resistant A2 Stainless Steel
M5 x 10mm Security Pin Torx Button Head Screw (T25) | Tamper Resistant A2 Stainless Steel
M5 x 10mm Security Pin Torx Button Head Screw (T25) | Tamper Resistant A2 Stainless Steel
M5 x 10mm Security Pin Torx Button Head Screw (T25) | Tamper Resistant A2 Stainless Steel
M5 x 10mm Security Pin Torx Button Head Screw (T25) | Tamper Resistant A2 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £0.23 £0.28
10 - 24 £0.18 £0.22
25 - 49 £0.14 £0.17
50 - 99 £0.12 £0.14
100 - 499 £0.09 £0.11
500 - 999 £0.08 £0.10
1000 + £0.07 £0.08

£0.28 / each


Up to 44 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 102,886 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 247,636 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
247,636 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M5
Thread Length 10mm
Pitch 0.80mm
Head Diameter 9.5mm
Head Height 2.75mm
Drive Security T25
Standard ISO 7380-1
Head Style Button Head
Material A2 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M5 x Pin Torx Button Head Screw (T25) – A2 Stainless Steel

This M5 x button head security screw provides a removable machine-threaded fixing with a centre-pin Torx recess. The A2 Stainless Steel construction and Security T25 drive make it suitable for assemblies where casual interference is a concern.

What Are Pin Torx Button Head Screws?

A security Pin Torx button head screw uses a central pin inside its Torx recess to stop normal Torx drivers seating fully. This M5 x fixing can be removed for planned maintenance using the matching Security T25 tool. Its Level 1 entry-level security classification indicates a deterrent to casual vandalism and opportunistic interference rather than absolute protection.

Common Applications

  • Workshop assemblies: Secure guards and plates while keeping access possible with the correct security bit.
  • Public access equipment: Secure removable access panels on equipment installed in shared or public areas.
  • Electrical enclosures: Fix covers to suitably threaded housings where a standard Torx driver should not operate the fastener.
  • Outdoor furniture: Attach serviceable brackets and fittings on furniture exposed to public access.

M5 x Pin Torx Button Head Screw Dimensions

  • Thread Size: M5
  • Thread Length: 10mm
  • Pitch: 0.80mm
  • Head Diameter: 9.5mm
  • Head Height: 2.75mm
  • Drive: Security T25
  • Material: A2 Stainless Steel
  • Standard: ISO 7380-1
  • Head Style: Button Head

Key Benefits

  • Defined head dimensions help assess the clearance around the assembled fixing.
  • The centre-pin Torx recess cannot be engaged by an ordinary Torx bit of the same size.
  • The rounded button head gives the assembled fixing a relatively low-profile finish.
  • A matching security Torx tool permits planned adjustment and removal.

Explore more security Torx button head fasteners to compare thread and drive sizes. If you need help selecting the correct size, call us on 01233 713581.
