Ergonomic Clamping Handle - HW154

Product code: HW154
View All Specifications

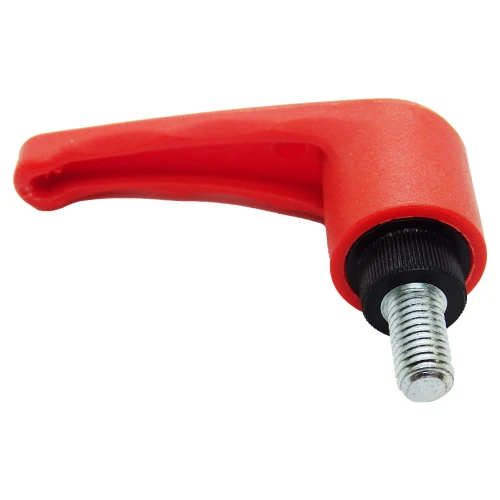

Orange M8 x 30mm Ergonomic Clamping Handles

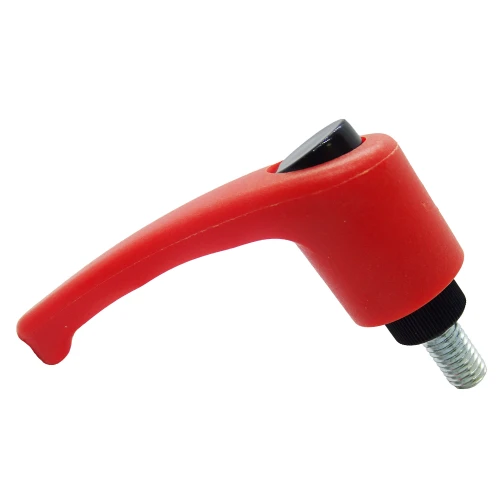

Orange M8 x 30mm Ergonomic Clamping Handles

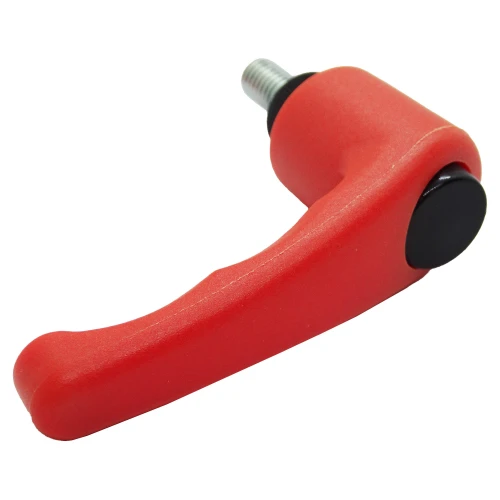

Orange M8 x 30mm Ergonomic Clamping Handles

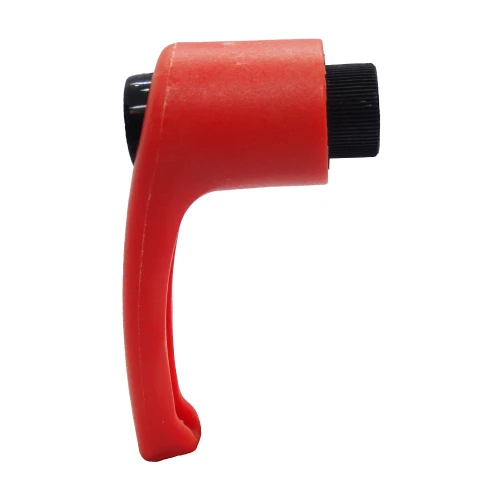

Orange M8 x 30mm Ergonomic Clamping Handles
Orange M8 x 30mm Ergonomic Clamping Handles
Orange M8 x 30mm Ergonomic Clamping Handles
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £2.48 £2.98
10 - 24 £2.02 £2.43
25 - 49 £1.87 £2.24
50 - 99 £1.62 £1.94
100 - 499 £1.31 £1.57
500 + £1.12 £1.34

£2.98 / each


Up to 56 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 1,128 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
1,128 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M8 x 30mm
Thread Type Male
Handle Length 65mm
Height 38mm
Shank Diameter 15mm
Handle Material Nylon
Thread Material Steel
Handle Colour Orange
Button Colour Black

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M8 x 30mm Male Ergonomic Clamping Handle | 65mm Handle | Orange/Black Nylon | Steel Thread

Designed for production equipment and adjustable tooling, this M8 x 30mm male adjustable clamping handle uses a male threaded stud to clamp or secure a compatible component. The ergonomic Nylon handle can be repositioned through the indexed mechanism when surrounding equipment limits continuous rotation. The Steel threaded component provides a robust fixing for general machinery, tooling and industrial adjustment.

What Are Ergonomic Clamping Handles?

Indexed Ergonomic Clamping Handles combine a threaded fixing with a repositionable hand lever. After tightening, the handle can be reset to a more convenient angle which helps reduce interference with nearby guards, panels or machine components.

Different applications may suit other machine clamping handles, including alternative handle shapes, materials and male or female thread options.

Common Applications

  • Machine Building: Locks adjustable components, guards, guides and stops in position on suitable machinery.
  • Jigs and Fixtures: Provides repeatable hand adjustment for workholding fixtures, locating devices and production tooling.
  • Toolmaking: Secures adjustable plates, brackets and fixture components where quick manual repositioning is required.
  • Industrial Equipment: Provides a hand-operated clamping point for suitable production, packaging and maintenance machinery.

M8 x 30mm Male Ergonomic Clamping Handle Dimensions

  • Thread Size: M8 x 30mm
  • Thread Type: Male
  • Handle Length: 65mm
  • Height: 38mm
  • Shank Diameter: 15mm
  • Handle Colour: Orange
  • Button Colour: Black
  • Handle Material: Nylon
  • Thread Material: Steel

Key Benefits

  • Orange Nylon handle with Black button gives the specified colour combination.
  • Indexed ratchet mechanism allows the lever position to be reset after tightening.
  • M8 x 30mm male thread provides the specified connection for the clamping assembly.
  • 38mm overall height defines the installed handle profile.

Compare our male ergonomic clamping handles for alternative thread sizes, materials and handle dimensions. We can help you choose the correct fit on 01233 713581.
