Ergonomic Clamping Handle - HW157
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £2.48 | £2.98 |
| 10 - 24 | £2.02 | £2.43 |
| 25 - 49 | £1.87 | £2.24 |
| 50 - 99 | £1.62 | £1.94 |
| 100 - 499 | £1.31 | £1.57 |
| 500 + | £1.12 | £1.34 |
£2.98 / each
Product Specification
| Thread Size | M8 x 30mm |
| Thread Type | Male |
| Handle Length | 65mm |
| Height | 38mm |
| Shank Diameter | 15mm |
| Handle Material | Nylon |
| Thread Material | Steel |
| Handle Colour | Black |
| Button Colour | Orange |
Frequently Bought Together
- Material Polypropylene
- Overall Height 22mm
- Internal Diameter 60mm
- Outside Diameter 81.5mm
- Base Thickness 3mm
- Style For Soft Floor
- Material Nylon / Steel BZP
- Weight Rating 50kg
- Stem Size 10mm x 30mm
- Wheel Diameter 50mm
- Castor Height 54.0mm
- Braked Not Braked
Total Price: £0.00

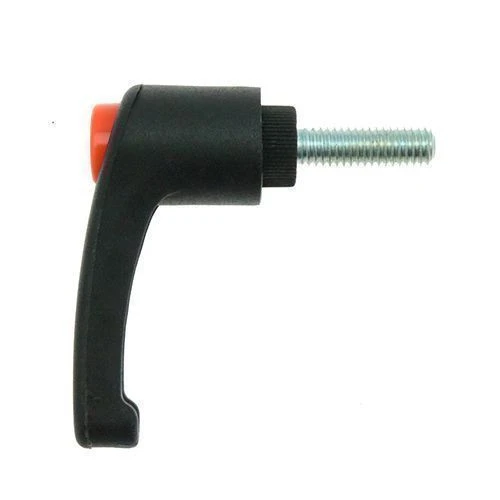

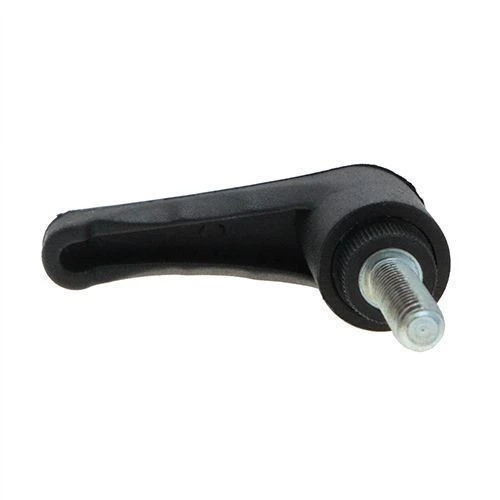

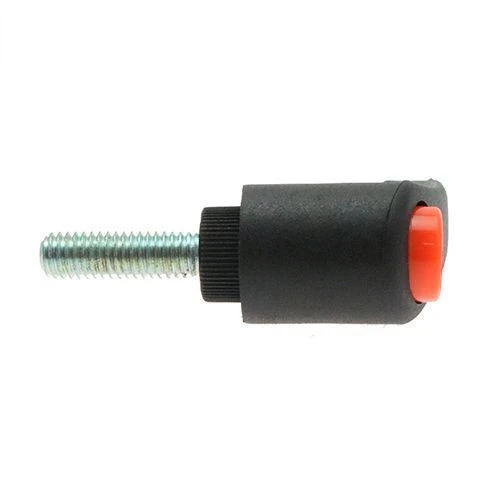

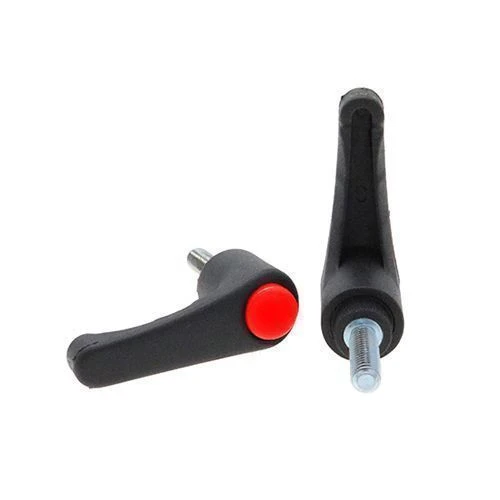

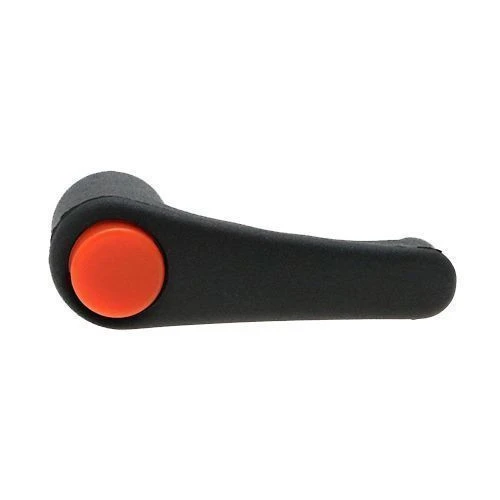

M8 x 30mm Male Ergonomic Clamping Handle | 65mm Handle | Black/Orange Nylon | Steel Thread
Made for repeated industrial clamping and adjustment, this M8 x 30mm male adjustable clamping handle uses a male thread for direct engagement with a compatible tapped hole or female component. The 38mm overall height and 65mm handle length define the operating envelope. The Steel threaded component provides a robust fixing for general machinery, tooling and industrial adjustment.
What Are Ergonomic Clamping Handles?
Ergonomic Clamping Handles are hand-operated indexed levers used to clamp, hold or adjust machine components. Their ergonomic profile improves grip during repeated use while the ratchet mechanism lets the handle be repositioned without changing the threaded clamping point.
Different applications may suit other adjustable handles, including alternative handle shapes, materials and male or female thread options.
Common Applications
- Machine Building: Locks adjustable components, guards, guides and stops in position on suitable machinery.
- Jigs and Fixtures: Provides repeatable hand adjustment for workholding fixtures, locating devices and production tooling.
- Toolmaking: Secures adjustable plates, brackets and fixture components where quick manual repositioning is required.
- Industrial Equipment: Provides a hand-operated clamping point for suitable production, packaging and maintenance machinery.
M8 x 30mm Male Ergonomic Clamping Handle Dimensions
- Thread Size: M8 x 30mm
- Thread Type: Male
- Handle Length: 65mm
- Height: 38mm
- Shank Diameter: 15mm
- Handle Colour: Black
- Button Colour: Orange
- Handle Material: Nylon
- Thread Material: Steel
Key Benefits
- Steel threaded component provides the stated fixing material.
- Ergonomic handle profile improves grip and comfort during repeated manual adjustment.
- 65mm handle length provides the stated lever size for hand tightening and adjustment.
- 15mm shank diameter provides the stated central boss dimension.
View our male ratchet clamping handles in other thread sizes, colours and handle lengths. If you are unsure which option suits your machinery or fixture, contact our team on 01233 713581.
| Code | Thread Size | Thread Material | Height | Shank Diameter | Thread Type | Handle Material | Handle Length | Handle Colour | Button Colour | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HW154 | M8 x 30mm | Steel | 38mm | 15mm | Male | Nylon | 65mm | Orange | Black |
Checking...
|
|
| HW155 | M8 x 40mm | Steel | 38mm | 15mm | Male | Nylon | 65mm | Orange | Black |
Checking...
|
|
| HW156 | M8 x 20mm | Steel | 38mm | 15mm | Male | Nylon | 65mm | Black | Orange |
Checking...
|
|
| HW158 | M8 x 40mm | Steel | 38mm | 15mm | Male | Nylon | 65mm | Black | Orange |
Checking...
|
|
| HW159 | M10 x 20mm | A2 Stainless Steel | 47mm | 19mm | Male | Nylon | 83mm | Black | Orange |
Checking...
|
|
| HW160 | M10 x 20mm | Steel | 47mm | 19mm | Male | Nylon | 83mm | Orange | Black |
Checking...
|
|
