Ergonomic Clamping Handle - HW162

Product code: HW162
View All Specifications

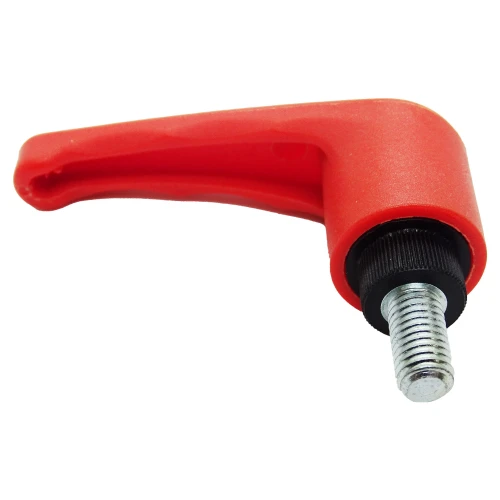

Orange M10 x 30mm Ergonomic Clamping Handles

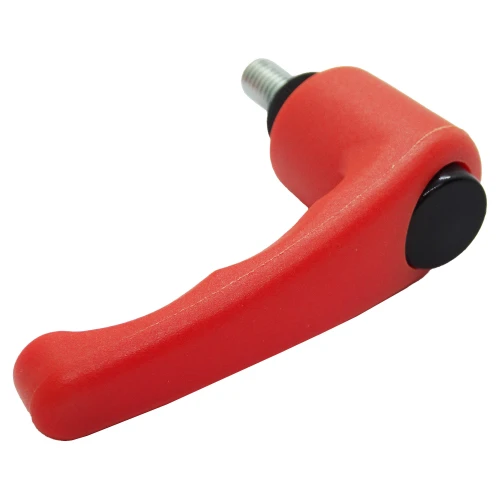

Orange M10 x 30mm Ergonomic Clamping Handles

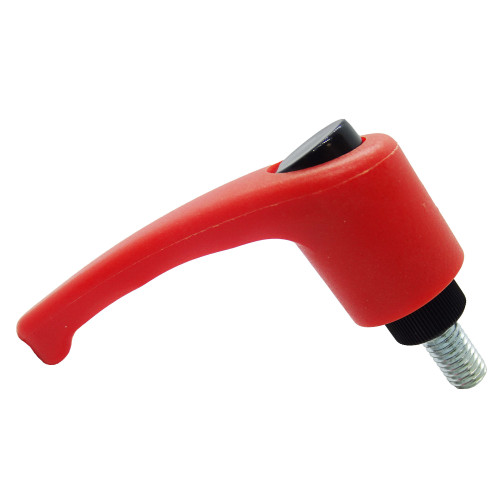

Orange M10 x 30mm Ergonomic Clamping Handles

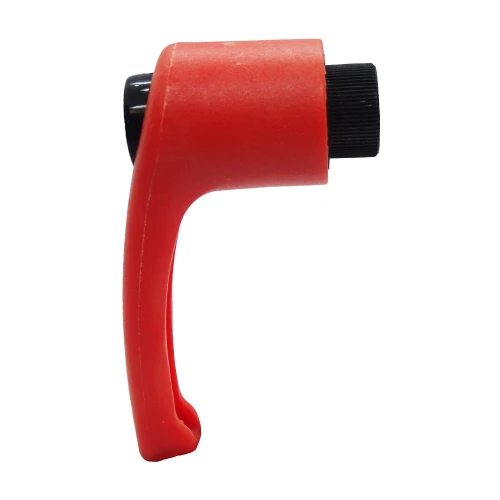

Orange M10 x 30mm Ergonomic Clamping Handles
Orange M10 x 30mm Ergonomic Clamping Handles
Orange M10 x 30mm Ergonomic Clamping Handles
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £3.67 £4.40
10 - 24 £2.98 £3.57
25 - 49 £2.75 £3.30
50 - 99 £2.38 £2.86
100 - 499 £1.93 £2.31
500 + £1.65 £1.98

£4.40 / each


Up to 1 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 927 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
927 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M10 x 30mm
Thread Type Male
Handle Length 83mm
Height 47mm
Shank Diameter 19mm
Handle Material Nylon
Thread Material Steel
Handle Colour Orange
Button Colour Black

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M10 x 30mm Male Ergonomic Clamping Handle | 83mm Handle | Orange/Black Nylon | Steel Thread

Made for repeated industrial clamping and adjustment, this M10 x 30mm male ergonomic clamping handle uses a male thread for direct engagement with a compatible tapped hole or female component. The 47mm overall height and 83mm handle length define the operating envelope. The Steel threaded component provides a robust fixing for general machinery, tooling and industrial adjustment.

What Are Ergonomic Clamping Handles?

Ergonomic Clamping Handles are hand-operated indexed levers used to clamp, hold or adjust machine components. Their ergonomic profile improves grip during repeated use while the ratchet mechanism lets the handle be repositioned without changing the threaded clamping point.

Different applications may suit other indexed clamping handles, including alternative handle shapes, materials and male or female thread options.

Common Applications

  • Packaging Machinery: Allows guides, stops and adjustable components to be tightened and repositioned by hand.
  • Inspection Fixtures: Provides repeatable clamping for gauges, test rigs and adjustable checking equipment.
  • Workshop Machinery: Secures suitable guards, brackets and accessories where regular hand adjustment is required.
  • Assembly Equipment: Supports quick manual clamping on suitable fixtures, locators and production aids.

M10 x 30mm Male Ergonomic Clamping Handle Dimensions

  • Thread Size: M10 x 30mm
  • Thread Type: Male
  • Handle Length: 83mm
  • Height: 47mm
  • Shank Diameter: 19mm
  • Handle Colour: Orange
  • Button Colour: Black
  • Handle Material: Nylon
  • Thread Material: Steel

Key Benefits

  • 19mm shank diameter provides the stated central boss dimension.
  • Steel threaded component provides the stated fixing material.
  • Ergonomic handle profile improves grip and comfort during repeated manual adjustment.
  • 83mm handle length provides the stated lever size for hand tightening and adjustment.

Compare our male ergonomic clamping handles for alternative thread sizes, materials and handle dimensions. We can help you choose the correct fit on 01233 713581.
