Ergonomic Clamping Handle - HW169

Product code: HW169
View All Specifications

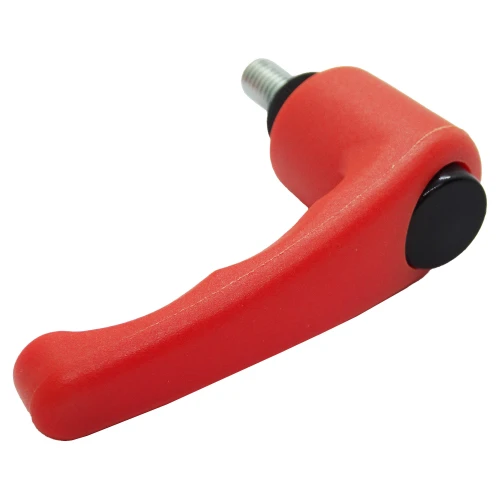

Orange M12 x 50mm Ergonomic Clamping Handles

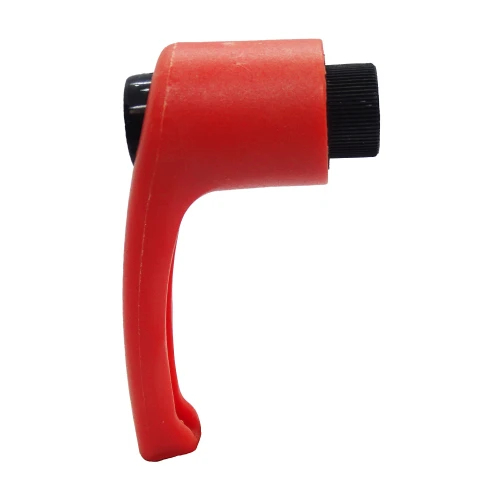

Orange M12 x 50mm Ergonomic Clamping Handles

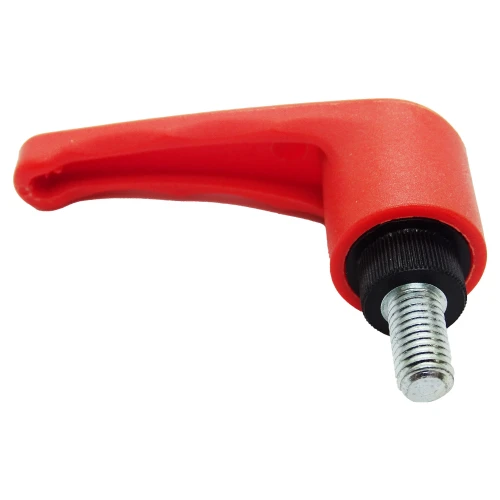

Orange M12 x 50mm Ergonomic Clamping Handles
Orange M12 x 50mm Ergonomic Clamping Handles
Orange M12 x 50mm Ergonomic Clamping Handles
Orange M12 x 50mm Ergonomic Clamping Handles
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £3.57 £4.28
10 - 24 £2.90 £3.48
25 - 49 £2.67 £3.21
50 - 99 £2.32 £2.78
100 - 499 £1.88 £2.25
500 + £1.61 £1.93

£4.28 / each


Up to 104 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
104 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M12 x 50mm
Thread Type Male
Handle Length 83mm
Height 47mm
Shank Diameter 19mm
Handle Material Nylon
Thread Material Steel
Handle Colour Orange
Button Colour Black

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M12 x 50mm Male Ergonomic Clamping Handle | 83mm Handle | Orange/Black Nylon | Steel Thread

For test rigs, inspection fixtures and technical equipment, this M12 x 50mm male adjustable clamping handle provides a threaded clamping stud and 83mm operating lever in one assembly. The ratchet mechanism helps users tighten the fixing then move the handle to a more convenient resting position. The Steel threaded component provides a robust fixing for general machinery, tooling and industrial adjustment.

What Are Ergonomic Clamping Handles?

Indexed Ergonomic Clamping Handles combine a threaded fixing with a repositionable hand lever. After tightening, the handle can be reset to a more convenient angle which helps reduce interference with nearby guards, panels or machine components.

Our broader clamping handles selection includes nylon, metal and stainless steel options for different clamping requirements.

Common Applications

  • Machine Building: Locks adjustable components, guards, guides and stops in position on suitable machinery.
  • Jigs and Fixtures: Provides repeatable hand adjustment for workholding fixtures, locating devices and production tooling.
  • Toolmaking: Secures adjustable plates, brackets and fixture components where quick manual repositioning is required.
  • Industrial Equipment: Provides a hand-operated clamping point for suitable production, packaging and maintenance machinery.

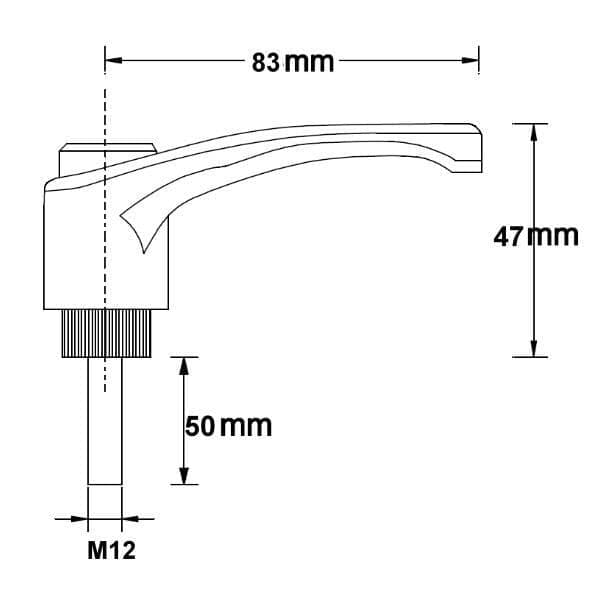

M12 x 50mm Male Ergonomic Clamping Handle Dimensions

  • Thread Size: M12 x 50mm
  • Thread Type: Male
  • Handle Length: 83mm
  • Height: 47mm
  • Shank Diameter: 19mm
  • Handle Colour: Orange
  • Button Colour: Black
  • Handle Material: Nylon
  • Thread Material: Steel

Key Benefits

  • Orange Nylon handle with Black button gives the specified colour combination.
  • Indexed ratchet mechanism allows the lever position to be reset after tightening.
  • M12 x 50mm male thread provides the specified connection for the clamping assembly.
  • 47mm overall height defines the installed handle profile.

View our ergonomic clamping levers in other thread sizes, colours and handle lengths. If you are unsure which option suits your machinery or fixture, contact our team on 01233 713581.

Please call for any enquiries!
Mon - Thurs 8.30 am - 5.30 pm
Fri 8.30 am - 3.30 pm
✕
