Ergonomic Clamping Handle - HW166

Product code: HW166
View All Specifications

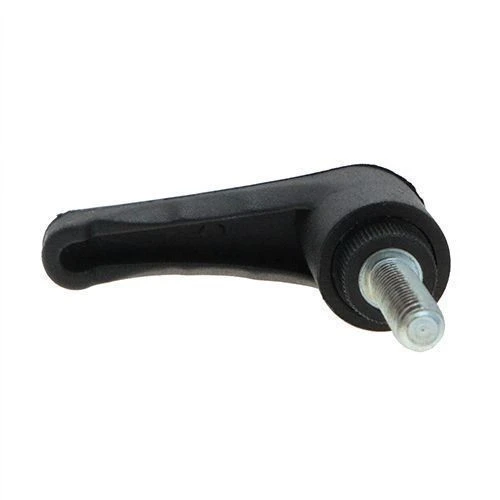

Black M10 x 50mm Ergonomic Clamping Handles

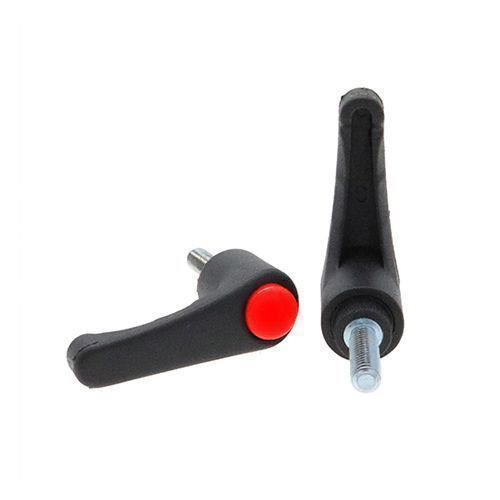

Black M10 x 50mm Ergonomic Clamping Handles

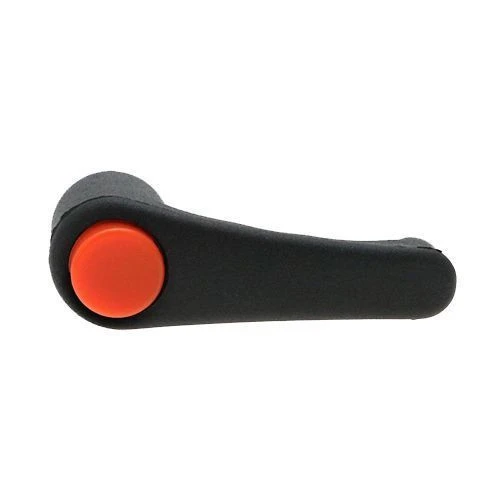

Black M10 x 50mm Ergonomic Clamping Handles
Black M10 x 50mm Ergonomic Clamping Handles
Black M10 x 50mm Ergonomic Clamping Handles
Black M10 x 50mm Ergonomic Clamping Handles
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £3.38 £4.05
10 - 24 £2.74 £3.29
25 - 49 £2.52 £3.03
50 - 99 £2.19 £2.63
100 - 499 £1.77 £2.12
500 + £1.52 £1.82

£4.05 / each


Up to 1,086 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
1,086 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M10 x 50mm
Thread Type Male
Handle Length 83mm
Height 47mm
Shank Diameter 19mm
Handle Material Nylon
Thread Material Steel
Handle Colour Black
Button Colour Orange

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M10 x 50mm Male Ergonomic Clamping Handle | 83mm Handle | Black/Orange Nylon | Steel Thread

Designed for adjustable brackets, guides and machine components, this M10 x 50mm male threaded clamping handle uses a male threaded stud to clamp or secure a compatible component. The ergonomic Nylon handle can be repositioned through the indexed mechanism when surrounding equipment limits continuous rotation. The Steel threaded component provides a robust fixing for general machinery, tooling and industrial adjustment.

What Are Ergonomic Clamping Handles?

Adjustable Ergonomic Clamping Handles are used on machinery, jigs and fixtures where components need to be locked, released or repositioned by hand. The indexed mechanism supports repeated adjustment in confined or frequently accessed locations.

Different applications may suit other indexed clamping handles, including alternative handle shapes, materials and male or female thread options.

Common Applications

  • Adjustable Guides: Locks guides and stops in position while allowing regular repositioning without separate tools.
  • Maintenance Equipment: Provides a convenient hand-operated fixing for serviceable brackets, covers and adjustable components.
  • Production Tooling: Supports repeated clamping and release on suitable manufacturing fixtures and tooling.
  • Technical Equipment: Provides an indexed lever for adjustable brackets, panels and mechanical assemblies.

M10 x 50mm Male Ergonomic Clamping Handle Dimensions

  • Thread Size: M10 x 50mm
  • Thread Type: Male
  • Handle Length: 83mm
  • Height: 47mm
  • Shank Diameter: 19mm
  • Handle Colour: Black
  • Button Colour: Orange
  • Handle Material: Nylon
  • Thread Material: Steel

Key Benefits

  • 83mm handle length provides the stated lever size for hand tightening and adjustment.
  • 19mm shank diameter provides the stated central boss dimension.
  • Steel threaded component provides the stated fixing material.
  • Ergonomic handle profile improves grip and comfort during repeated manual adjustment.

See more male indexed clamping handles for industrial clamping and adjustment applications. For product-selection support, speak with our team on 01233 713581.
